Produktdetaljer

Hitta liknande produkter genom att välja ett eller flera attribut.

Välj alla	Attribut	Värde
	Brand	Microchip
	Maximum Output Current	150mA
	Regulator Type	Low Dropout Voltage
	Number of Outputs	1
	Output Voltage	3.3 V
	Line Regulation	±1.9 %/V
	Load Regulation	±50 %
	Mounting Type	Surface Mount
	Quiescent Current	1.8µA
	Package Type	SOT-23
	Pin Count	5
	Output Type	Fixed
	Dimensions	3.1 x 1.8 x 1.3mm
	Height	1.3mm
	Minimum Input Voltage	1.4 V
	Minimum Operating Temperature	-40 °C
	Maximum Input Voltage	6 V
	Maximum Operating Temperature	+85 °C
	Length	3.1mm
	Width	1.8mm

	Välj alla
	Brand Microchip
	Maximum Output Current 150mA
	Regulator Type Low Dropout Voltage
	Number of Outputs 1
	Output Voltage 3.3 V
	Line Regulation ±1.9 %/V
	Load Regulation ±50 %
	Mounting Type Surface Mount
	Quiescent Current 1.8µA
	Package Type SOT-23
	Pin Count 5
	Output Type Fixed
	Dimensions 3.1 x 1.8 x 1.3mm
	Height 1.3mm
	Minimum Input Voltage 1.4 V
	Minimum Operating Temperature -40 °C
	Maximum Input Voltage 6 V
	Maximum Operating Temperature +85 °C
	Length 3.1mm
	Width 1.8mm

Datasheet

COO (Country of Origin):: JP

The MCP1711 is a very accurate CMOS low dropout (LDO) voltage regulator that can deliver up to 150 mA of current while consuming only 0.6 μA of quiescent current (typical). The LDO output is stable without the need of capacitors due to excellent internal phase compensation.

Additional Features:
Ultra-Low 600 nA (typical) Quiescent Current
Low standby current: 10 nA
Input Operating Voltage Range: 1.4V to 6.0V
Standard Output Voltages: 1.2V, 1.8V, 2.2V, 2.5V, 3.0V, 3.3V, 5.0V
Output Capacitor: Low Equivalent Series Resistance (ESR) or Capacitorless Compatible
Protection Circuits: Current Limiter, Short Circuit, Foldback Space Saving, 4-Lead Plastic 1 x 1 mm UQFN and 5-Lead SOT-23.

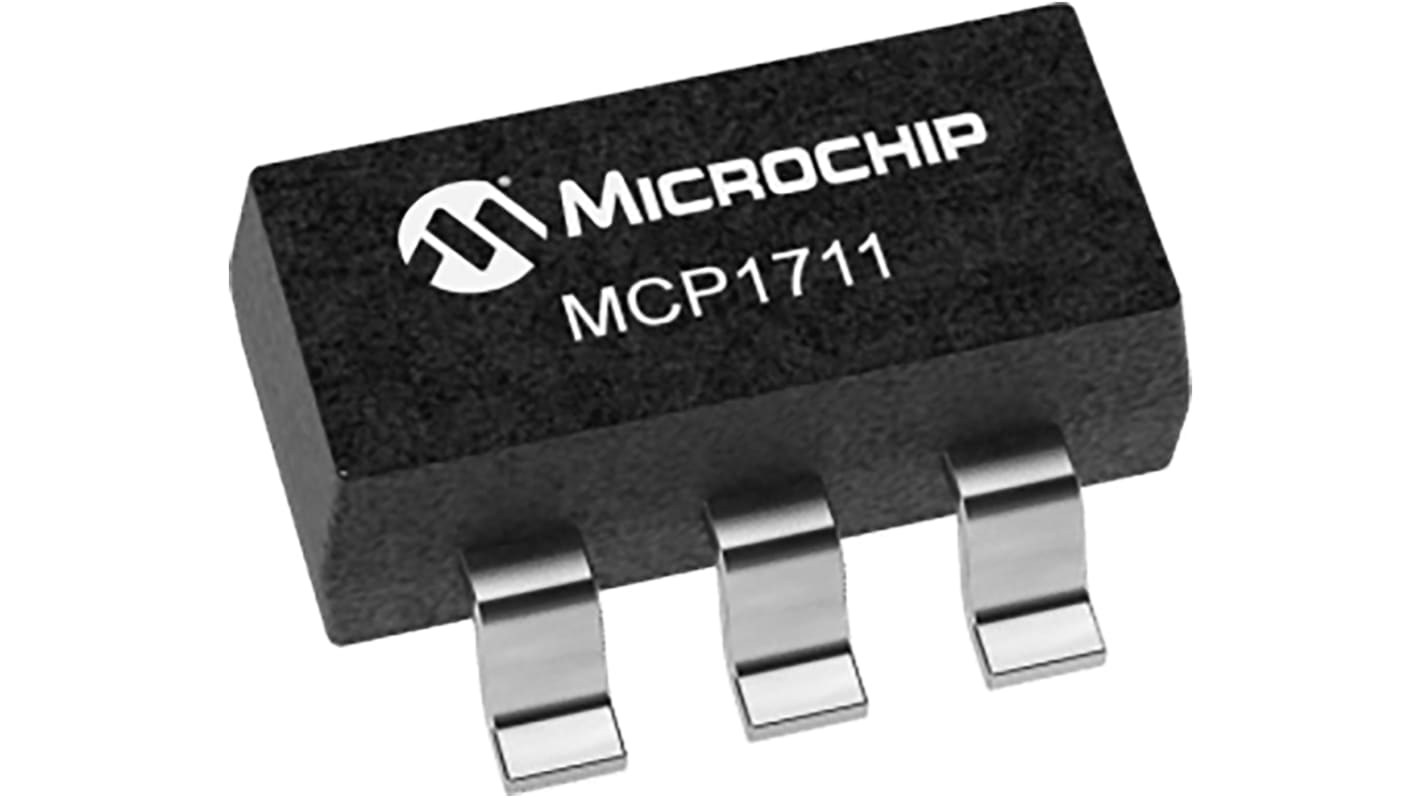

Microchip MCP1711T-33I/OT, 1 Low Dropout Voltage, Voltage Regulator 150mA, 3.3 V 5-Pin, SOT-23
