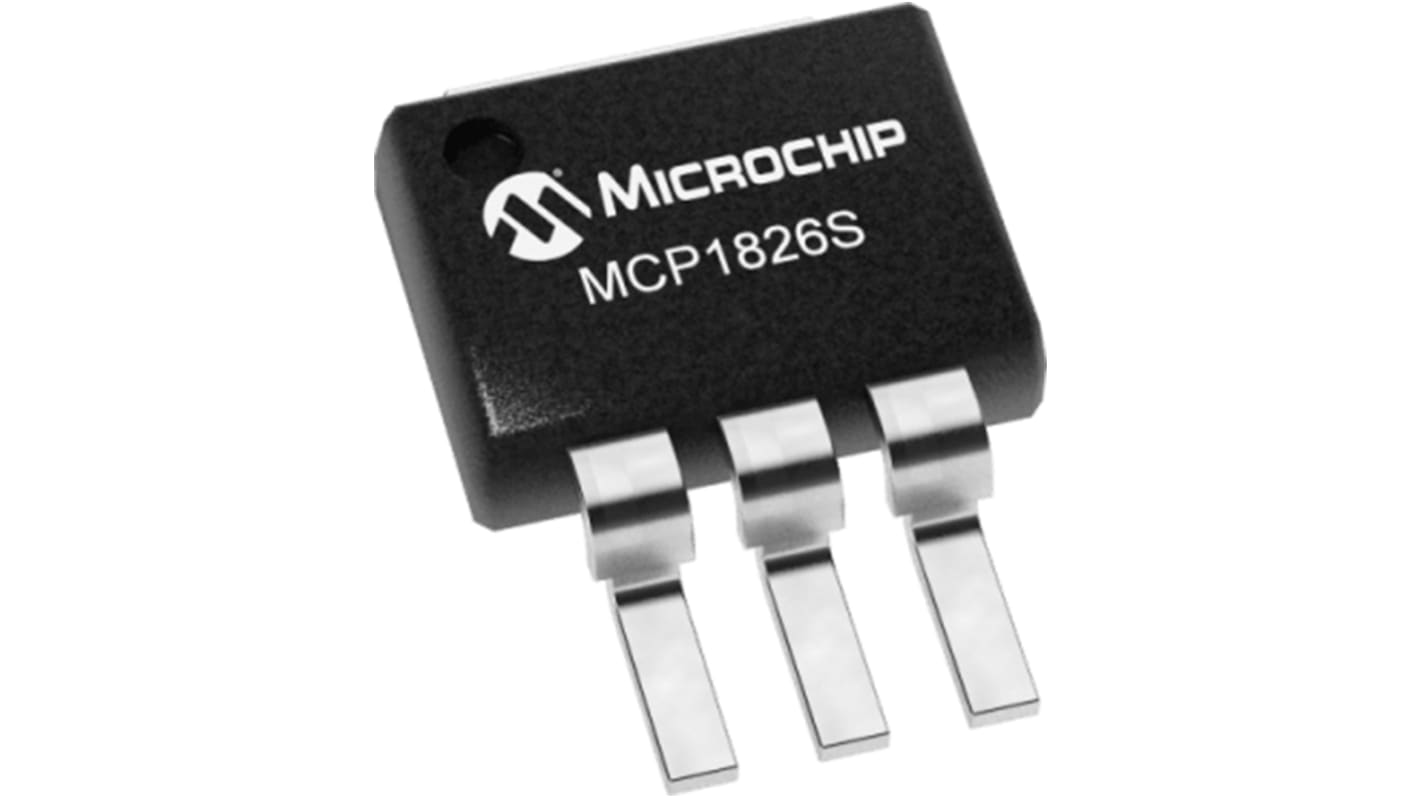

Microchip, Voltage Regulator 6V 3-Pin

Se alla Voltage Regulators

Antal (1 förpackning med 10 enheter)*

137,09 kr

(exkl. moms)

171,36 kr

(inkl. moms)

Add to Basket
välj eller skriv kvantitet
Sista RS lager
  • Slutlig(a) 420 enhet(er), redo att levereras
Enheter
Per enhet
Per förpackning*
10 +13,709 kr137,09 kr

*vägledande pris

RS-artikelnummer:
177-1985
Tillv. art.nr:
MCP1826S-1202E/EB
Tillverkare / varumärke:
Microchip
Hitta liknande produkter genom att välja ett eller flera attribut.
Välj alla

Brand

Microchip

Product Type

Voltage Regulator

Polarity

Positive

Mount Type

Surface

Quiescent Current

220μA

Pin Count

3

Standards/Approvals

ESD HBM 4 kV, ESD MM 300 V

Height

4.83mm

Length

10.67mm

Series

MCP1826S

Width

9.65 mm

Minimum Input Voltage

2.3V

Maximum Operating Temperature

125°C

Maximum Input Voltage

6V

Automotive Standard

AEC-Q101

COO (Country of Origin):
US
The MCP1826S is a 1A, ceramic output cap stable, low output voltage, Low Dropout Regulator (LDO). It is part of the family of LDOs that includes 500 mA MCP1825S and 1.5A MCP1827S. The MCP1826S comes in thermally enhanced DDPAK-3 and TO-220-3 packages as well as space-efficient SOT223-3 package.

Up to 1A output load current

Low dropout voltage 300 mV (typ)

Output voltage from 0.8V to 5.0V

Stable with 1.0 μF ceramic output cap

Power good output

Low supply current 120 μA (typ)

DDPAK-3, TO-220-3, SOT223-3 Pb-free packages
