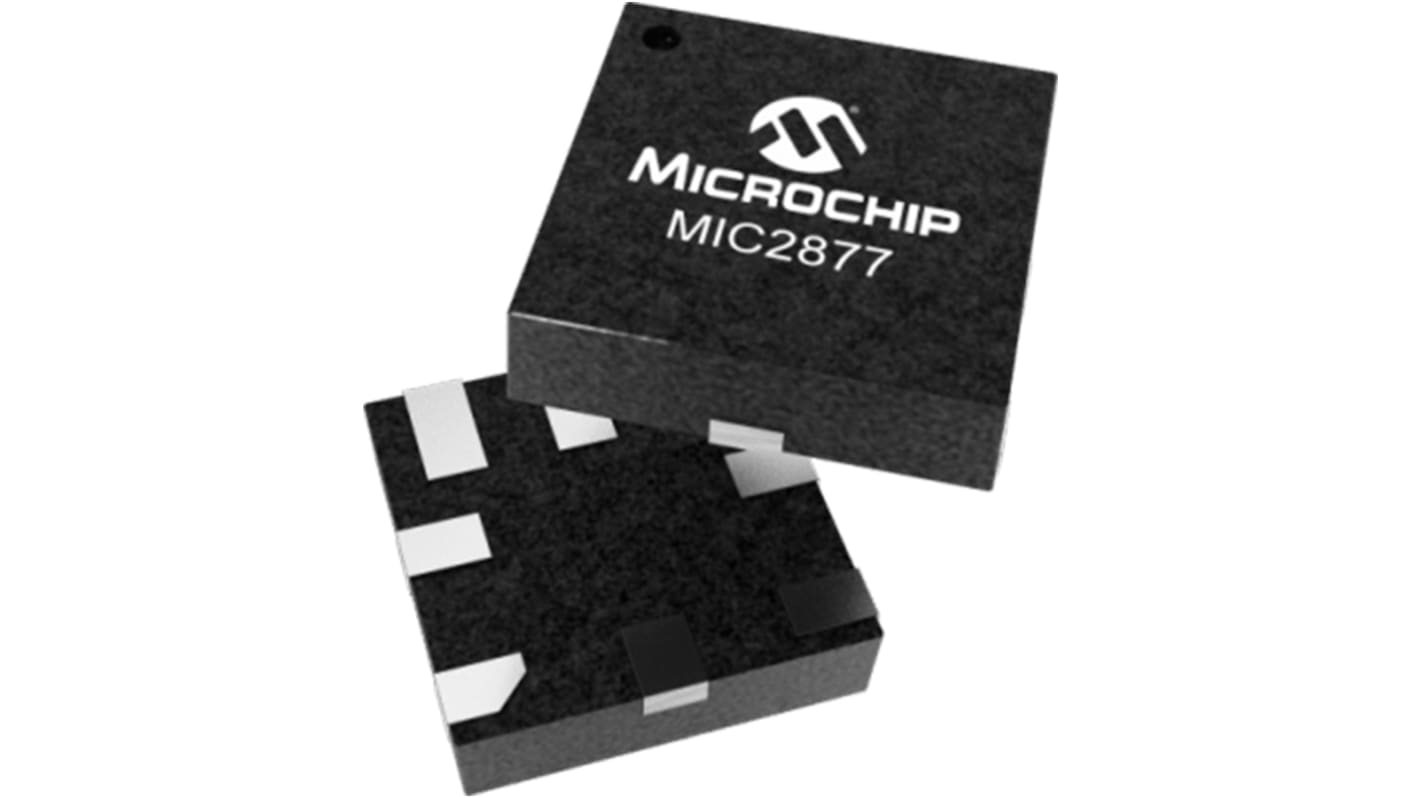

Microchip MIC2877-4.75YFT-TR, Buck Boost Switching Regulator 5.5V FTQFN 8-Pin

RS-artikelnummer:: 175-3179
Tillv. art.nr:: MIC2877-4.75YFT-TR
Tillverkare / varumärke:: Microchip

Microchip MIC2877-4.75YFT-TR, Buck Boost Switching Regulator 5.5V FTQFN 8-Pin

Mängdrabatt möjlig

Antal (1 förpackning med 10 enheter)*

117,04 kr

(exkl. moms)

146,30 kr

(inkl. moms)

GRATIS leverans för online beställningar över 500,00 kr

Sista RS lager

Slutlig(a) 130 enhet(er), redo att levereras

Enheter	Per enhet	Per förpackning*
10 - 20	11,704 kr	117,04 kr
30 - 90	11,043 kr	110,43 kr
100 +	10,259 kr	102,59 kr

*vägledande pris

RS-artikelnummer:: 175-3179
Tillv. art.nr:: MIC2877-4.75YFT-TR
Tillverkare / varumärke:: Microchip

Specifikationer

Datablad

Lagstiftning och ursprungsland

Produktdetaljer

Hitta liknande produkter genom att välja ett eller flera attribut.

Välj alla	Attribut	Värde
	Brand	Microchip
	Product Type	Buck Boost Switching Regulator
	Package Type	FTQFN
	Polarity	Positive
	Mount Type	Surface
	Quiescent Current	125μA
	Pin Count	8
	Standards/Approvals	No
	Height	0.5mm
	Width	2 mm
	Length	2mm
	Series	MIC2877
	Maximum Input Voltage	5.5V
	Maximum Operating Temperature	85°C
	Minimum Input Voltage	2.5V
	Automotive Standard	No

	Välj alla
	Brand Microchip
	Product Type Buck Boost Switching Regulator
	Package Type FTQFN
	Polarity Positive
	Mount Type Surface
	Quiescent Current 125μA
	Pin Count 8
	Standards/Approvals No
	Height 0.5mm
	Width 2 mm
	Length 2mm
	Series MIC2877
	Maximum Input Voltage 5.5V
	Maximum Operating Temperature 85°C
	Minimum Input Voltage 2.5V
	Automotive Standard No

Datasheet

COO (Country of Origin):: US

The MIC2877 is a compact and highly efficient 2MHz synchronous boost regulator with a 6.5A (typical) switch. It features a bidirectional true load disconnect function that prevents any leakage current between the input and output when the device is disabled (EN = GND), protecting the input supply and improves the start-up performance. The MIC2877 has the input voltage range between 2.5V and 5.5V and provides a 2A output continuous current for VIN = 3V and VOUT = 5V.

Typical 6.5A Input Peak Current Limit

Up to 95% Efficiency

Fully Integrated, High Efficiency, 2MHz Switching Frequency

Bidirectional True Load Disconnect, Overvoltage Protection (OVP) and Undervoltage Lockout (UVLO)

Controlled Pre-Charge Current Limit at Start-Up

Ultra-Fast Transient Response

Input Voltage Range from 2.5V to 5.5V

Integrated Anti-Ringing Switch for EMI Reduction

Typically Less than 2μA Shutdown Current

Internal Compensation

Power Good (PG) Output

Overcurrent Protection and Thermal Shutdown

Microchip MIC2877-4.75YFT-TR, Buck Boost Switching Regulator 5.5V FTQFN 8-Pin
