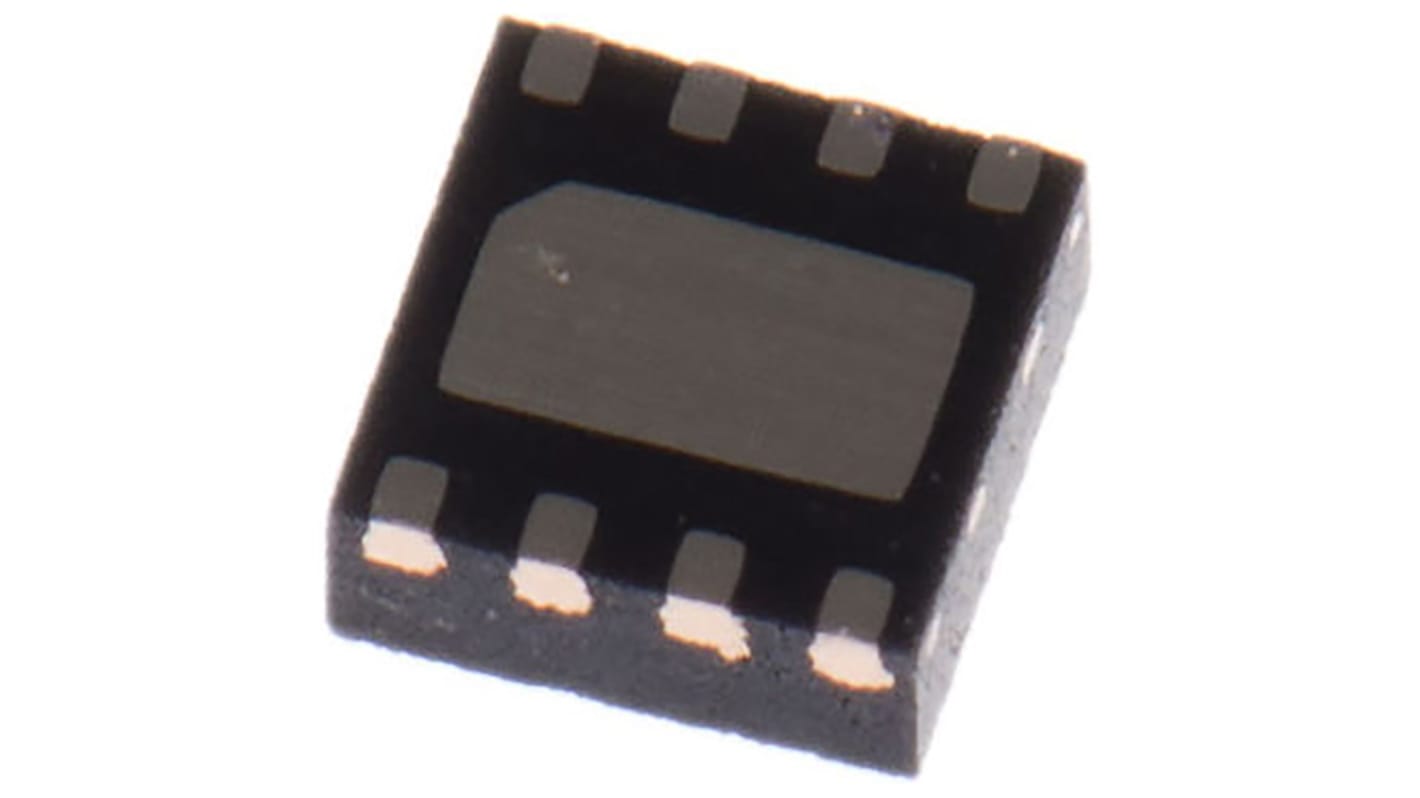

Texas Instruments, 5-Channel Charge Pump, Regulator, 250 mA, -5.2 V 2.3 MHz, WSON 8-Pin
- RS-artikelnummer:
- 168-4993
- Tillv. art.nr:
- LM27761DSGT
- Tillverkare / varumärke:
- Texas Instruments
Mängdrabatt möjlig
Antal (1 rulle med 250 enheter)*
2 528,50 kr
(exkl. moms)
3 160,50 kr
(inkl. moms)
GRATIS leverans för online beställningar över 500,00 kr
I lager
- 2 000 enhet(er) är redo att levereras
Behöver du mer? Ange den kvantitet du behöver och klicka på "Kontrollera leveransdatum"
Enheter | Per enhet | Per rulle* |
|---|---|---|
| 250 - 250 | 10,114 kr | 2 528,50 kr |
| 500 - 1000 | 9,851 kr | 2 462,75 kr |
| 1250 + | 9,608 kr | 2 402,00 kr |
*vägledande pris
- RS-artikelnummer:
- 168-4993
- Tillv. art.nr:
- LM27761DSGT
- Tillverkare / varumärke:
- Texas Instruments
Specifikationer
Lagstiftning och ursprungsland
Produktdetaljer
Hitta liknande produkter genom att välja ett eller flera attribut.
Välj alla | Attribut | Värde |
|---|---|---|
| Brand | Texas Instruments | |
| Regulator Type | Charge Pump | |
| Product Type | Regulator | |
| Number of Outputs | 5 | |
| Output Voltage | -5.2 V | |
| Switching Frequency | 2.3MHz | |
| Mount Type | Surface | |
| Polarity | Positive | |
| Quiescent Current | 7μA | |
| Package Type | WSON | |
| Pin Count | 8 | |
| Output Current | 250mA | |
| Output Type | Adjustable | |
| Switching Regulator | Yes | |
| Height | 0.75mm | |
| Width | 2.1 mm | |
| Series | LM27761 | |
| Standards/Approvals | No | |
| Length | 2.1mm | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 85°C | |
| Maximum Input Voltage | 5.5V | |
| Minimum Input Voltage | 2.7V | |
| Automotive Standard | No | |
| Välj alla | ||
|---|---|---|
Brand Texas Instruments | ||
Regulator Type Charge Pump | ||
Product Type Regulator | ||
Number of Outputs 5 | ||
Output Voltage -5.2 V | ||
Switching Frequency 2.3MHz | ||
Mount Type Surface | ||
Polarity Positive | ||
Quiescent Current 7μA | ||
Package Type WSON | ||
Pin Count 8 | ||
Output Current 250mA | ||
Output Type Adjustable | ||
Switching Regulator Yes | ||
Height 0.75mm | ||
Width 2.1 mm | ||
Series LM27761 | ||
Standards/Approvals No | ||
Length 2.1mm | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 85°C | ||
Maximum Input Voltage 5.5V | ||
Minimum Input Voltage 2.7V | ||
Automotive Standard No | ||
- COO (Country of Origin):
- PH
Inverting Charge Pump Converters, Texas Instruments
Charge Pump Converters, Texas Instruments
The easy-to-use inductorless Charge Pump ICs from Texas Instruments offer a small-sized, simpler solution with high performance. The charge pump or switched-capacitor converter is an alternative solution to inductive DC-DC converters and delivers higher efficiency than Low Dropout (LDO) regulators.
Buck (Step-Down), Boost (Step-Up) and Inverting topologies
