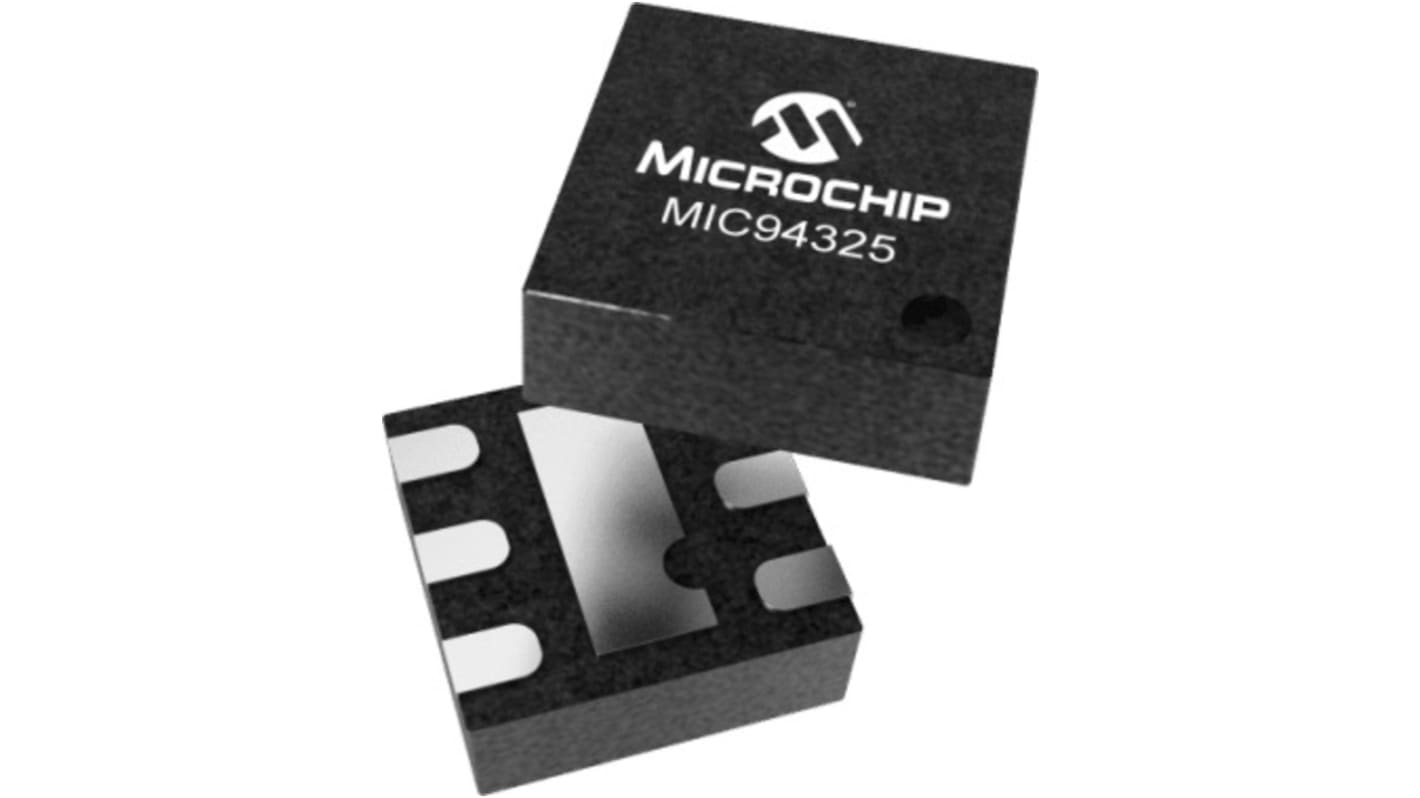

Microchip MIC94325YMT-TR, Voltage Regulator 3.6V DFN 6-Pin

Se alla Voltage Regulators
Mängdrabatt möjlig

Antal (1 förpackning med 25 enheter)*

100,80 kr

(exkl. moms)

126,00 kr

(inkl. moms)

Add to Basket
välj eller skriv kvantitet
Tillfälligt slut
  • Leverans från den 02 juni 2026
Behöver du mer? Ange den kvantitet du behöver och klicka på "Kontrollera leveransdatum"
Enheter
Per enhet
Per förpackning*
25 - 754,032 kr100,80 kr
100 +3,871 kr96,78 kr

*vägledande pris

Förpackningsalternativ:
RS-artikelnummer:
165-6437
Tillv. art.nr:
MIC94325YMT-TR
Tillverkare / varumärke:
Microchip
Hitta liknande produkter genom att välja ett eller flera attribut.
Välj alla

Brand

Microchip

Product Type

Voltage Regulator

Package Type

DFN

Mount Type

Surface

Polarity

Positive

Pin Count

6

Standards/Approvals

No

Length

1.6mm

Series

MIC94325

Height

0.5mm

Width

1.6 mm

Maximum Input Voltage

3.6V

Maximum Operating Temperature

125°C

Minimum Input Voltage

1.8V

Automotive Standard

No

The MIC943x5 Ripple Blocker™ is a monolithic integrated circuit that provides low-frequency ripple attenuation (switching noise rejection) to a regulated output voltage. This is important for applications where a DC/DC switching converter is required to lower or raise a battery voltage but where switching noise cannot be tolerated by sensitive downstream circuits such as in RF applications. The MIC943x5 maintains high power supply ripple rejection (PSRR) with input voltages operating near the output voltage level to improve overall system efficiency.

1.8V to 3.6V input voltage range

Active noise rejection over a wide frequency band: >50dB from 10Hz to 5MHz at 500mA load

Rated to 500mA output current

Fixed and adjustable output voltages

Optional output auto-discharge when disabled

Current-limit and thermal-limit protected

1.6mm x 1.6mm, 6-pin Thin DFN

Logic-controlled enable pin

-40°C to +125°C junction temperature range
