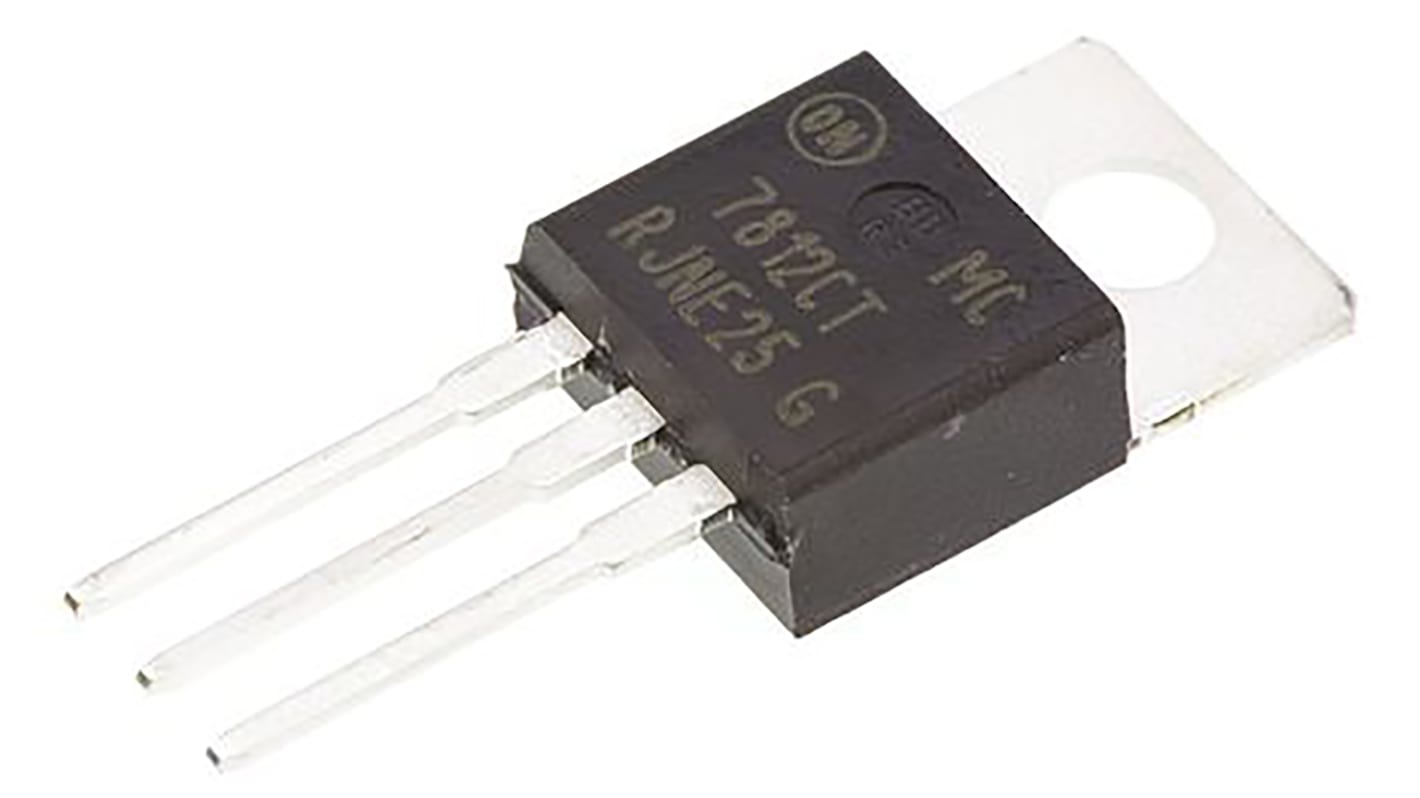

onsemi MC7812CTG, 5-Channel Linear, Voltage Regulator, 1 A, 12 V, TO-220 3-Pin

Se alla Voltage Regulators
Mängdrabatt möjlig

Antal (1 rör med 50 enheter)*

238,10 kr

(exkl. moms)

297,60 kr

(inkl. moms)

Add to Basket
välj eller skriv kvantitet
I lager
  • 5 100 enhet(er) är redo att levereras
Behöver du mer? Ange den kvantitet du behöver och klicka på "Kontrollera leveransdatum"
Enheter
Per enhet
Per Rør*
50 - 504,762 kr238,10 kr
100 - 2004,269 kr213,45 kr
250 - 4504,162 kr208,10 kr
500 - 12004,05 kr202,50 kr
1250 +3,954 kr197,70 kr

*vägledande pris

RS-artikelnummer:
102-3491
Distrelec artikelnummer:
304-29-700
Tillv. art.nr:
MC7812CTG
Tillverkare / varumärke:
onsemi
Hitta liknande produkter genom att välja ett eller flera attribut.
Välj alla

Brand

onsemi

Regulator Type

Linear

Product Type

Voltage Regulator

Output Voltage

12 V

Number of Outputs

5

Line Regulation

48 mV

Load Regulation

60 mV

Mount Type

Through Hole

Polarity

Positive

Package Type

TO-220

Quiescent Current

3.4mA

Output Current

1A

Pin Count

3

Output Type

Fixed

Switching Regulator

No

Length

10.28mm

Series

MC78xx

Width

4.82 mm

Standards/Approvals

RoHS

Height

30.02mm

Minimum Input Voltage

12V

Minimum Operating Temperature

0°C

Maximum Operating Temperature

125°C

Maximum Input Voltage

35V

Automotive Standard

AEC-Q100

COO (Country of Origin):
CZ
Features and Benefits

• Internal thermal overload protection

• Internal short circuit current limiting

• Output transistor safe – area compensation

• These are Pb-Free devices

• Output current in access of 1A

• Output Voltage Offered in 1.5%, 2% and 4% Tolerance

• Package type: TO-220

• Accuracy +4%

Applications

Linear regulators are simple voltage regulator circuits commonly adopted in electronics. A Linear voltage regulator uses a closed feedback loop to bias a pass element to maintain a steady voltage across output terminals. Linear regulators are most commonly highly integrated, which include the pass element and feedback loop.

MC7812 Linear voltage regulator, ON Semiconductor


ON Semiconductor's 12-volt linear voltage regulator comes under the MC7812 family. These products are monolithic integrated circuits designed as fixed-voltage regulators for a wide range of applications including local, on-card regulation. The positive 7812 voltage regulator requires no external components and incorporates internal thermal overload protection and current limiting plus safe area compensation. There is no need for external components although it is possible to adjust the voltage and current with external devices.

Linear Voltage Regulators, ON Semiconductor
