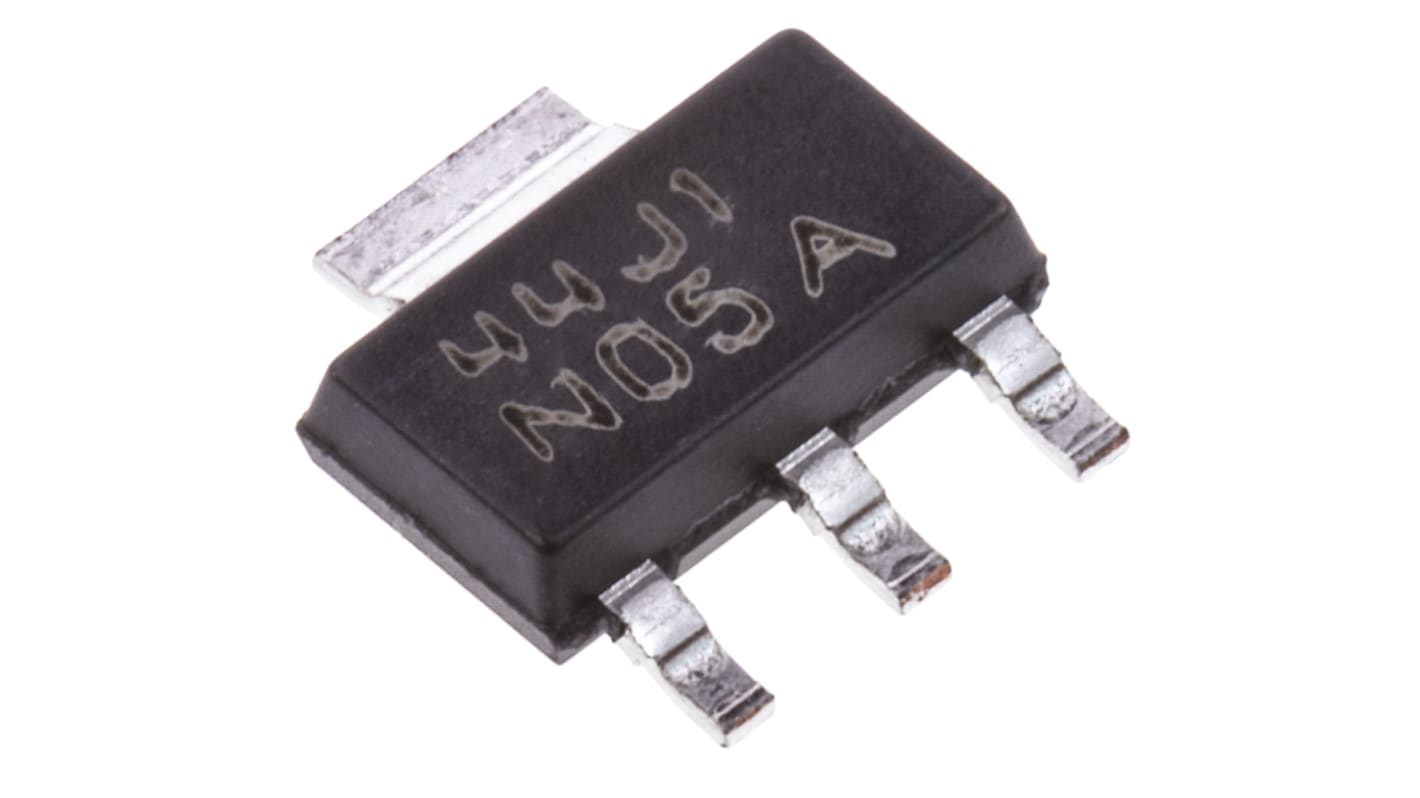

Texas Instruments LM1117MP-3.3/NOPB, 1 Low Dropout Voltage, Voltage Regulator 800mA, 3.3 V 3+Tab-Pin, SOT-223

RS-artikelnummer:: 100-5930
Tillv. art.nr:: LM1117MP-3.3/NOPB
Tillverkare / varumärke:: Texas Instruments

Texas Instruments LM1117MP-3.3/NOPB, 1 Low Dropout Voltage, Voltage Regulator 800mA, 3.3 V 3+Tab-Pin, SOT-223

82 I lager för avsändande samma dag

Pris (ex. moms) Var (i en rulle med 1000)

7,836 kr

(exkl. moms)

9,795 kr

(inkl. moms)

Enheter	Per enhet	Per rulle*
1000 +	7,836 kr	7 836,00 kr

RS-artikelnummer:: 100-5930
Tillv. art.nr:: LM1117MP-3.3/NOPB
Tillverkare / varumärke:: Texas Instruments

ESD Control Selection Guide V1

Attribute	Value
Maximum Output Current	800mA
Regulator Type	Low Dropout Voltage
Number of Outputs	1
Output Voltage	3.3 V
Line Regulation	1 mV
Load Regulation	1 mV
Accuracy	±1%
Polarity	Positive
Mounting Type	Surface Mount
Package Type	SOT-223
Pin Count	3+Tab
Output Type	Fixed
Dimensions	6.5 x 3.56 x 1.6mm
Maximum Operating Temperature	+125 °C
Maximum Input Voltage	15 V
Height	1.6mm
Minimum Operating Temperature	0 °C
Width	3.56mm
Length	6.5mm

Texas Instruments LM1117MP-3.3/NOPB, 1 Low Dropout Voltage, Voltage Regulator 800mA, 3.3 V 3+Tab-Pin, SOT-223

LDO (Low Dropout) Linear Voltage Regulators, 600mA to 800mA, Texas Instruments
