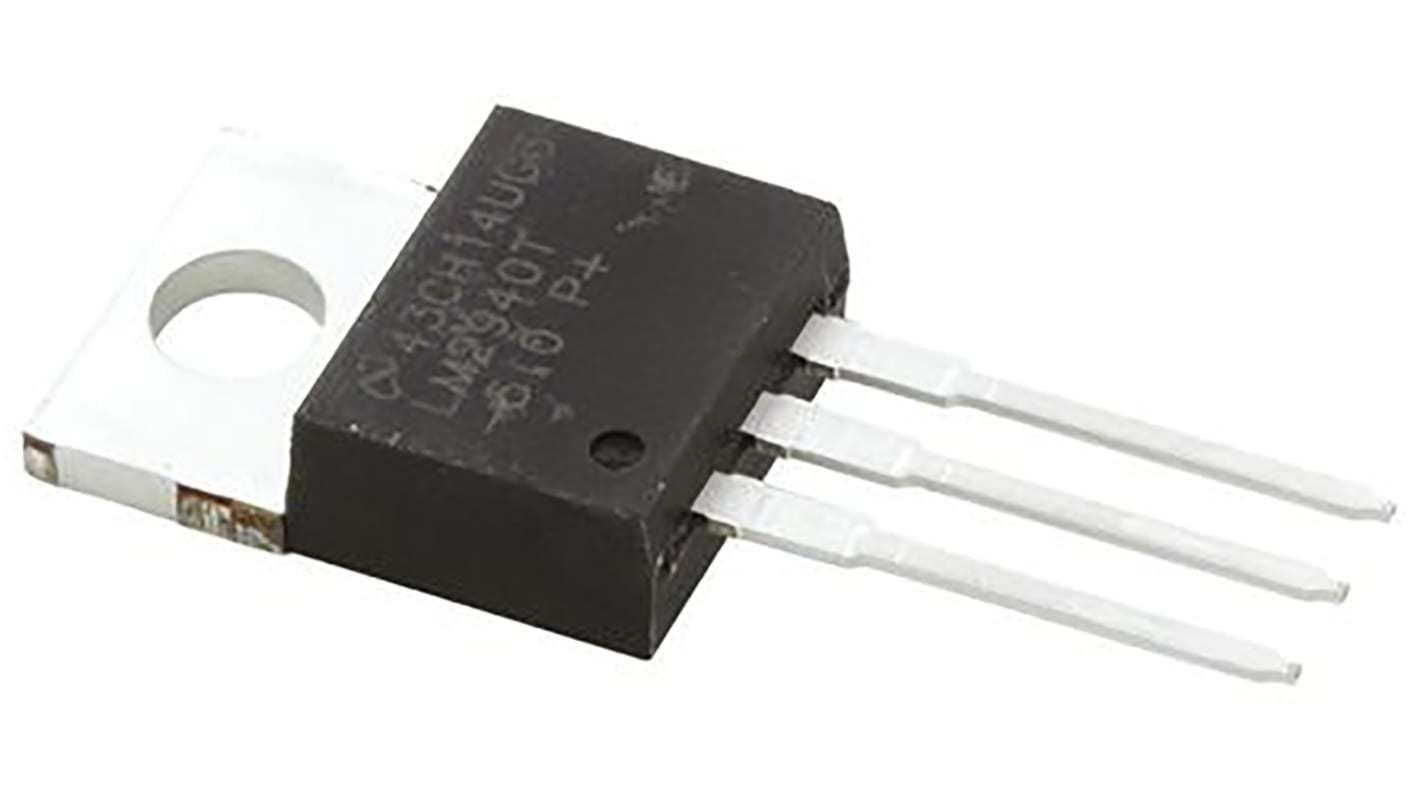

Texas Instruments LM2940T-5.0/NOPB, 1 Low Dropout Voltage, Voltage Regulator 1A, 5 V 3-Pin, TO-220

RS-artikelnummer:: 100-3962
Tillv. art.nr:: LM2940T-5.0/NOPB
Tillverkare / varumärke:: Texas Instruments

Texas Instruments LM2940T-5.0/NOPB, 1 Low Dropout Voltage, Voltage Regulator 1A, 5 V 3-Pin, TO-220

115 I lager för avsändande samma dag

Pris (ex. moms) Var (i ett rör med 45)

17,495 kr

(exkl. moms)

21,869 kr

(inkl. moms)

Enheter	Per enhet	Per Tube*
45 - 45	17,495 kr	787,275 kr
90 - 180	16,62 kr	747,90 kr
225 - 405	15,748 kr	708,66 kr
450 - 630	14,87 kr	669,15 kr
675 +	13,996 kr	629,82 kr

RS-artikelnummer:: 100-3962
Tillv. art.nr:: LM2940T-5.0/NOPB
Tillverkare / varumärke:: Texas Instruments

ESD Control Selection Guide V1

Attribute	Value
Maximum Output Current	1A
Regulator Type	Low Dropout Voltage
Number of Outputs	1
Output Voltage	5 V
Line Regulation	50 mV
Load Regulation	50 mV
Polarity	Positive
Mounting Type	Through Hole
Package Type	TO-220
Pin Count	3
Output Type	Fixed
Dimensions	10.16 x 4.7 x 8.89mm
Minimum Operating Temperature	-40 °C
Minimum Input Voltage	6.25 V
Maximum Input Voltage	26 V
Height	8.89mm
Maximum Operating Temperature	+125 °C
Length	10.16mm
Width	4.7mm

Texas Instruments LM2940T-5.0/NOPB, 1 Low Dropout Voltage, Voltage Regulator 1A, 5 V 3-Pin, TO-220

LDO (Low Dropout) Linear Voltage Regulators, 1A, LM29xx/LM39xx/LMS81xx Series, Texas Instruments
