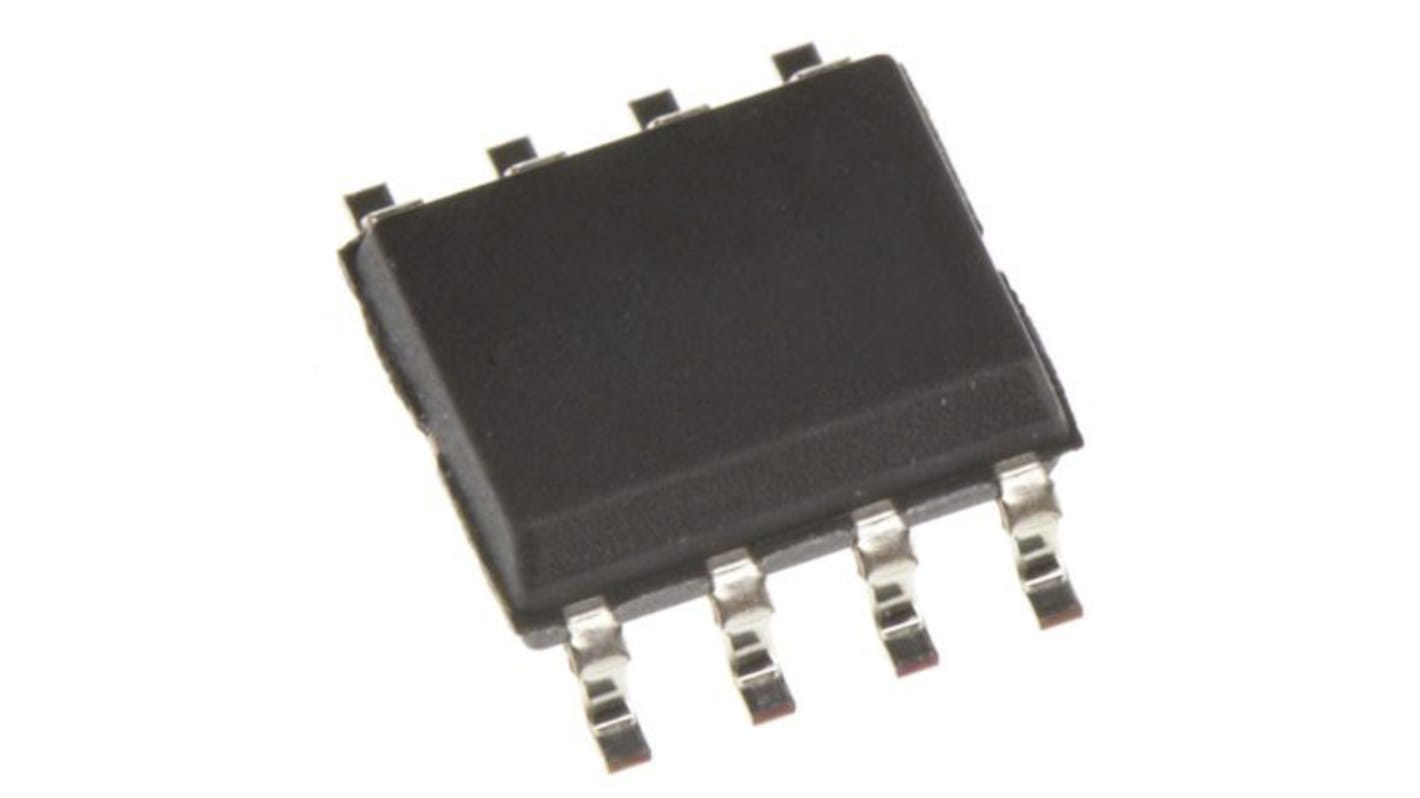

Maxim Integrated Precision Series/Shunt Precision Voltage Reference 3V ±0.02% 8-Pin SO, MAX6126AASA30+

Se alla Voltage References

Antal (1 förpackning med 2 enheter)*

112,75 kr

(exkl. moms)

140,938 kr

(inkl. moms)

Add to Basket
välj eller skriv kvantitet
Håller på att utgå
  • Slutlig(a) 1 060 enhet(er), redo att levereras
Enheter
Per enhet
Per förpackning*
2 +56,375 kr112,75 kr

*vägledande pris

Förpackningsalternativ:
RS-artikelnummer:
190-7787
Tillv. art.nr:
MAX6126AASA30+
Tillverkare / varumärke:
Maxim Integrated
Hitta liknande produkter genom att välja ett eller flera attribut.
Välj alla

Brand

Maxim Integrated

Nominal Voltage

3V

Package Type

SO

Reference Type

Precision

Initial Accuracy

±0.02%

Mounting Type

Surface Mount

Topology

Series/Shunt

Maximum Input Voltage

12.6 V

Pin Count

8

Line Regulation

50 μV/V

Load Regulation

30 (Sourcing & Sink) μV/mA

Dimensions

5 x 4 x 1.5mm

Maximum Operating Temperature

+125 °C

Width

4mm

Minimum Operating Temperature

-40 °C

Height

1.5mm

Length

5mm

Ultra-Low 1.3μVP-P Noise (0.1Hz to 10Hz, 2.048V Output)
Ultra-Low 3ppm/°C (max) Temperature Coefficient
±0.02% (max) Initial Accuracy
Wide (VOUT + 200mV) to 12.6V Supply Voltage Range
Low 200mV (max) Dropout Voltage
380μA Quiescent Supply Current
10mA Sink/Source-Current Capability
Stable with CLOAD = 0.1μF to 10μF
Low 20ppm/1000hr Long-Term Stability
0.025Ω (max) Load Regulation
20μV/V (max) Line Regulation
Force and Sense Outputs for Remote Sensing
Applications
Automated Test Equipment (ATE)
Digital Voltmeters
High-Accuracy Industrial and Process Control
High-Accuracy Reference Standard
High-Resolution A/D and D/A Converters
Precision Current Sources
