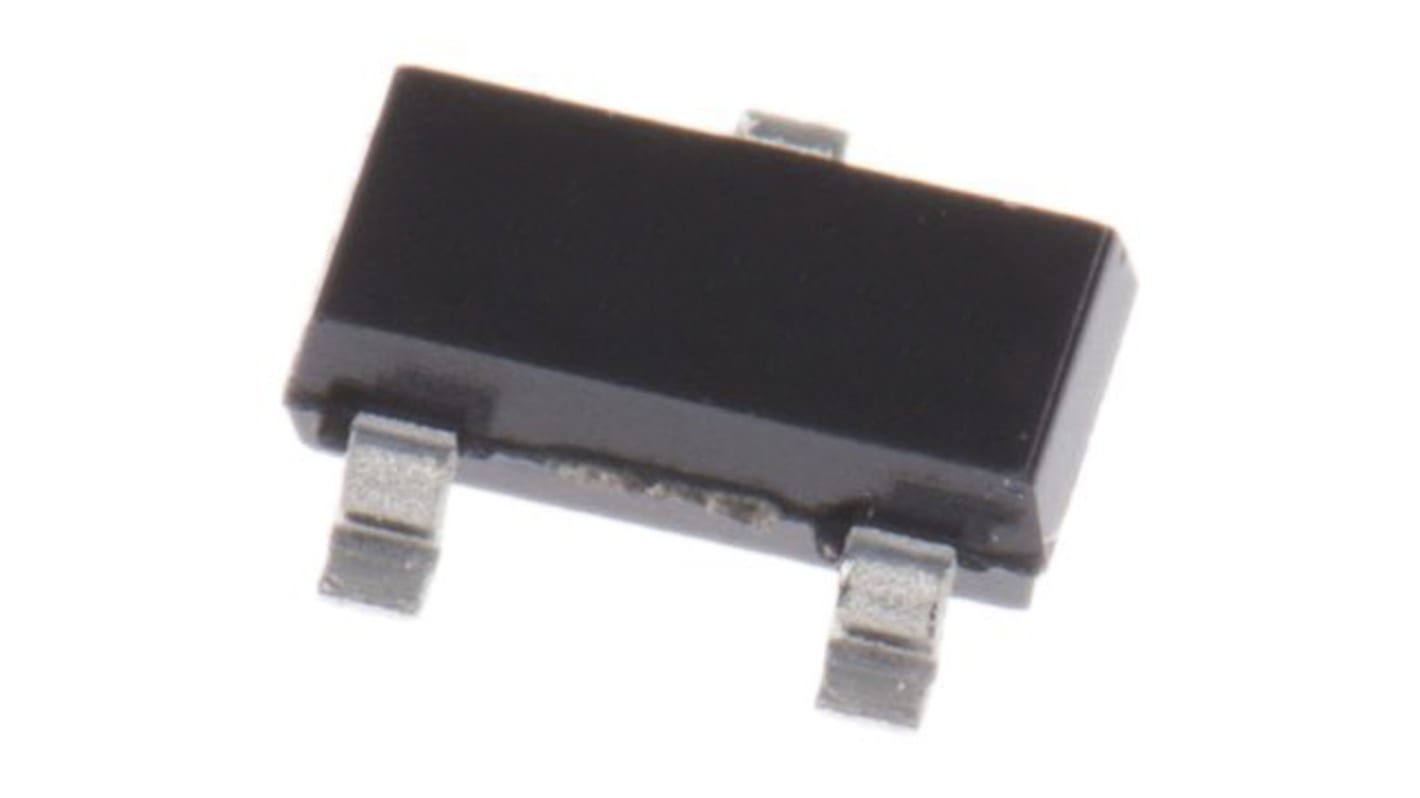

Analog Devices Precision Shunt Precision Voltage Reference ±0.35 %, ±3.5 mV 3-Pin SOT-23, ADR510ARTZ-Reel7

Se alla Voltage References

Antal (1 förpackning med 10 enheter)*

211,01 kr

(exkl. moms)

263,76 kr

(inkl. moms)

Add to Basket
välj eller skriv kvantitet
Tillfälligt slut
  • 930 enhet(er) levereras från den 12 januari 2026
Behöver du mer? Ange den kvantitet du behöver och klicka på "Kontrollera leveransdatum"
Enheter
Per enhet
Per förpackning*
10 +21,101 kr211,01 kr

*vägledande pris

Förpackningsalternativ:
RS-artikelnummer:
179-7005
Tillv. art.nr:
ADR510ARTZ-Reel7
Tillverkare / varumärke:
Analog Devices
Hitta liknande produkter genom att välja ett eller flera attribut.
Välj alla

Brand

Analog Devices

Package Type

SOT-23

Reference Type

Precision

Initial Accuracy

±0.35 %, ±3.5 mV

Mounting Type

Surface Mount

Topology

Shunt

Maximum Output Current

10mA

Minimum Output Voltage

0.99 V

Maximum Output Voltage

1 V

Pin Count

3

Dimensions

3.04 x 1.4 x 1.02mm

Minimum Operating Temperature

-40 °C

Maximum Operating Temperature

+85 °C

Length

3.04mm

Width

1.4mm

Height

1.02mm

COO (Country of Origin):
MY
Designed for space critical applications, the ADR510 is a low voltage (1.000 V), precision shunt-mode voltage reference in an ultracompact (3 mm x 3 mm) SOT-23-3 package. The ADR510 features low temperature drift (70 ppm/°C), high accuracy (±0.35%), and ultralow noise (4 μV p-p) performance. The ADR510 advanced design eliminates the need for an external capacitor, yet it is stable with any capacitive load. The minimum operating current increases from 100 μA to a maximum of 10 mA. This low operating current and ease of use make the ADR510 ideally suited for handheld battery-powered applications.

Precision 1.000 V voltage reference
Ultracompact 3 mm x 3 mm
SOT-23 package
No external capacitor required
Low output noise:
4 μV p-p (0.1 Hz to 10 Hz)
Initial accuracy:
±0.35% maximum
Temperature coefficient:
70 ppm/°C maximum
Operating current range:
100 μA to 10 mA
Output impedance:
0.3 Ω maximum
Temperature range:
−40°C to +85°C
