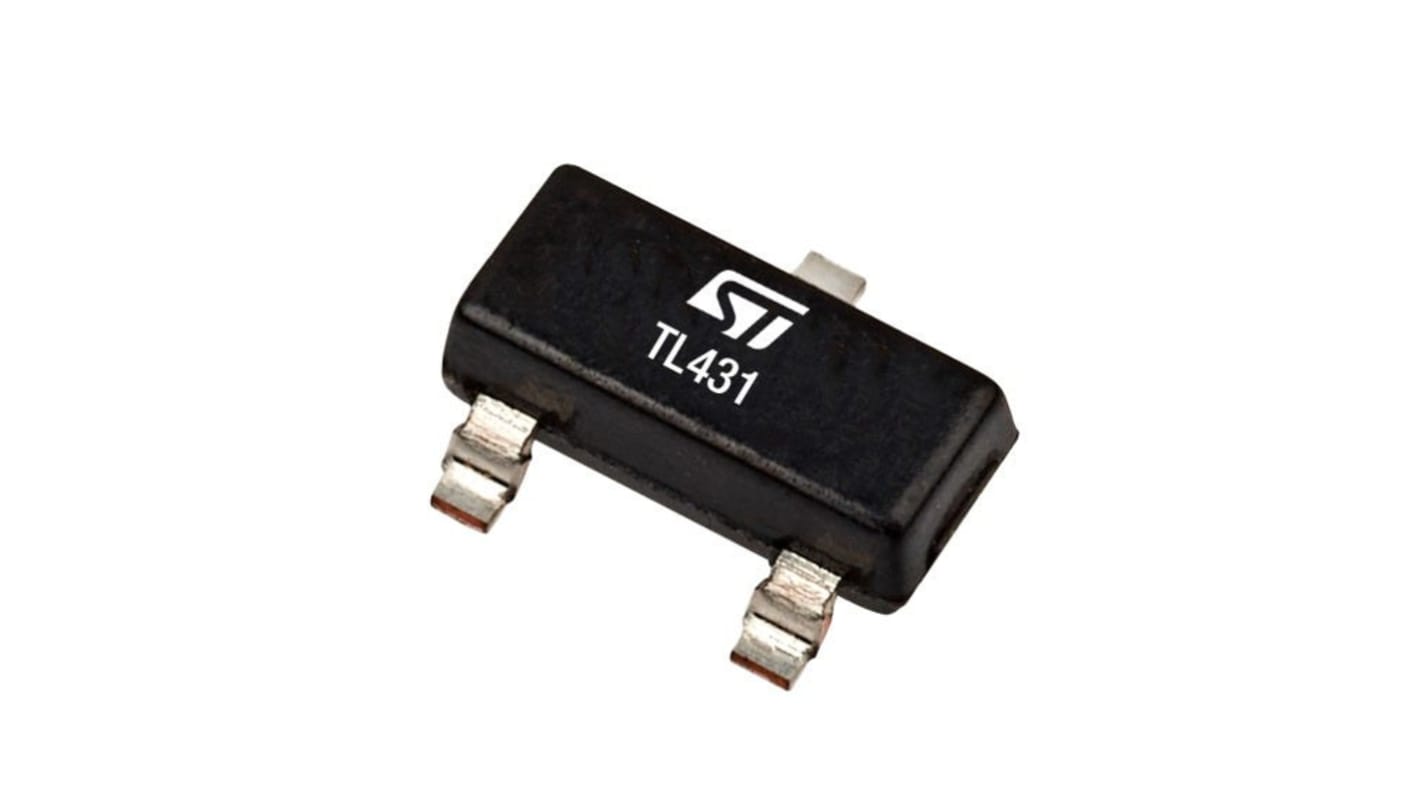

STMicroelectronics Adjustable Shunt Voltage Reference 2.5V 2% 3-Pin SOT23-3, TL431CL3T
- RS-artikelnummer:
- 151-859
- Tillv. art.nr:
- TL431CL3T
- Tillverkare / varumärke:
- STMicroelectronics
Mängdrabatt möjlig
Antal (1 längd med 50 enheter)*
69,20 kr
(exkl. moms)
86,50 kr
(inkl. moms)
GRATIS leverans för online beställningar över 500,00 kr
I lager
- 3 000 enhet(er) är redo att levereras
Behöver du mer? Ange den kvantitet du behöver och klicka på "Kontrollera leveransdatum"
Enheter | Per enhet | Per Längd* |
|---|---|---|
| 50 - 450 | 1,384 kr | 69,20 kr |
| 500 - 950 | 1,317 kr | 65,85 kr |
| 1000 - 2450 | 1,219 kr | 60,95 kr |
| 2500 + | 1,12 kr | 56,00 kr |
*vägledande pris
- RS-artikelnummer:
- 151-859
- Tillv. art.nr:
- TL431CL3T
- Tillverkare / varumärke:
- STMicroelectronics
Specifikationer
Datablad
Lagstiftning och ursprungsland
Produktdetaljer
Hitta liknande produkter genom att välja ett eller flera attribut.
Välj alla | Attribut | Värde |
|---|---|---|
| Brand | STMicroelectronics | |
| Nominal Voltage | 2.5V | |
| Package Type | SOT23-3 | |
| Reference Type | Adjustable | |
| Initial Accuracy | 2% | |
| Mounting Type | Surface Mount | |
| Topology | Shunt | |
| Pin Count | 3 | |
| Välj alla | ||
|---|---|---|
Brand STMicroelectronics | ||
Nominal Voltage 2.5V | ||
Package Type SOT23-3 | ||
Reference Type Adjustable | ||
Initial Accuracy 2% | ||
Mounting Type Surface Mount | ||
Topology Shunt | ||
Pin Count 3 | ||
The STMicroelectronics Adjustable Shunt Voltage comes with guaranteed temperature stability over the entire operating temperature range. The device temperature range is extended for the automotive version from 40 °C up to +125 °C. The output voltage can be set to any value between 2.5 and 36 V with two external resistors.
Sink current capability
Typical output impedance of 0.22 Ω
1% and 2% voltage precision
AEC Q100 qualified
Typical output impedance of 0.22 Ω
1% and 2% voltage precision
AEC Q100 qualified
