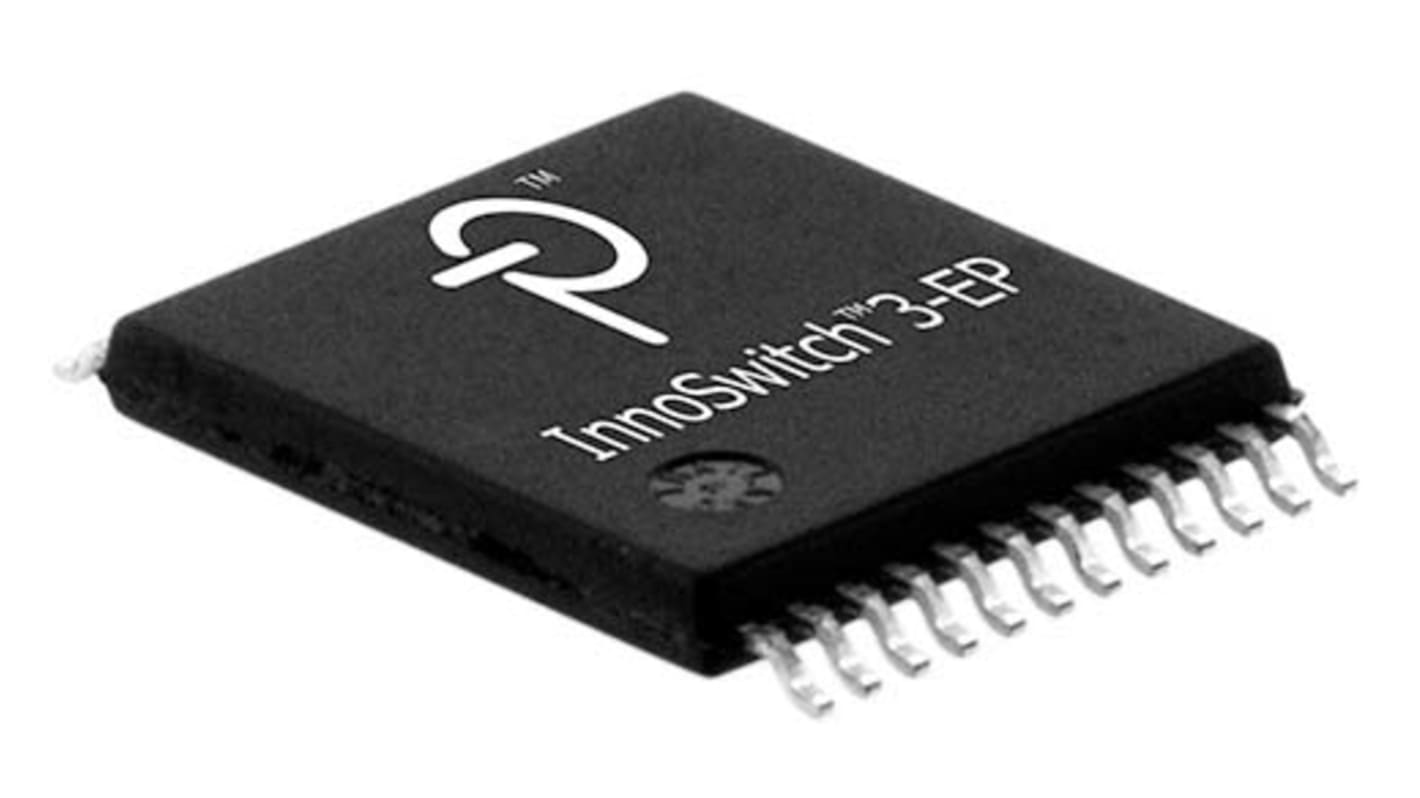

Power Integrations INN3674C-H601-TL DC-DC, Flyback Controller 80 kHz 16-Pin, InSOP-24D

Se alla Voltage Controllers

Antal (1 rulle med 2000 enheter)*

18 280,00 kr

(exkl. moms)

22 840,00 kr

(inkl. moms)

Add to Basket
välj eller skriv kvantitet
Tillfälligt slut
  • Leverans från den 03 mars 2026
Behöver du mer? Ange den kvantitet du behöver och klicka på "Kontrollera leveransdatum"
Enheter
Per enhet
Per rulle*
2000 +9,14 kr18 280,00 kr

*vägledande pris

RS-artikelnummer:
158-5351
Tillv. art.nr:
INN3674C-H601-TL
Tillverkare / varumärke:
Power Integrations
Hitta liknande produkter genom att välja ett eller flera attribut.
Välj alla

Brand

Power Integrations

Controller Type

Flyback Controller

Number of Outputs

1

Current Conversion Type

DC-DC

Maximum Switching Frequency

80 kHz

Mounting Type

Surface Mount

Package Type

InSOP-24D

Pin Count

16

Dimensions

9.4 x 10.8 x 1.45mm

Maximum Input Voltage

265 V

Maximum Operating Temperature

+150 °C

Maximum Output Voltage

27 V

Minimum Output Voltage

-0.3 V

Minimum Input Voltage

85 V

Minimum Operating Temperature

-40 °C

The InnoSwitch3-EP family of ICs dramatically simplifies the design and manufacture of flyback power converters, particularly those requiring high efficiency and/or compact size. The InnoSwitch3-EP family combines primary and secondary controllers and safety-rated feedback into a single IC. InnoSwitch3-EP family devices incorporate multiple protection features including line over and undervoltage protection, output overvoltage and over-current limiting, and over-temperature shutdown.

Compact Footprint
Up to 94% efficiency across full load range
Exceptional CV/CC accuracy, independent of external components
Adjustable accurate output current sense using external output sense resistor
Less than 15 mW no-load including line sense
Easily meets all global energy efficiency regulations
Low heat dissipation
Advanced Protection / Safety Features
Secondary MOSFET or diode short-circuit protection
Open SR FET-gate detection
Fast input line UV/OV protection
