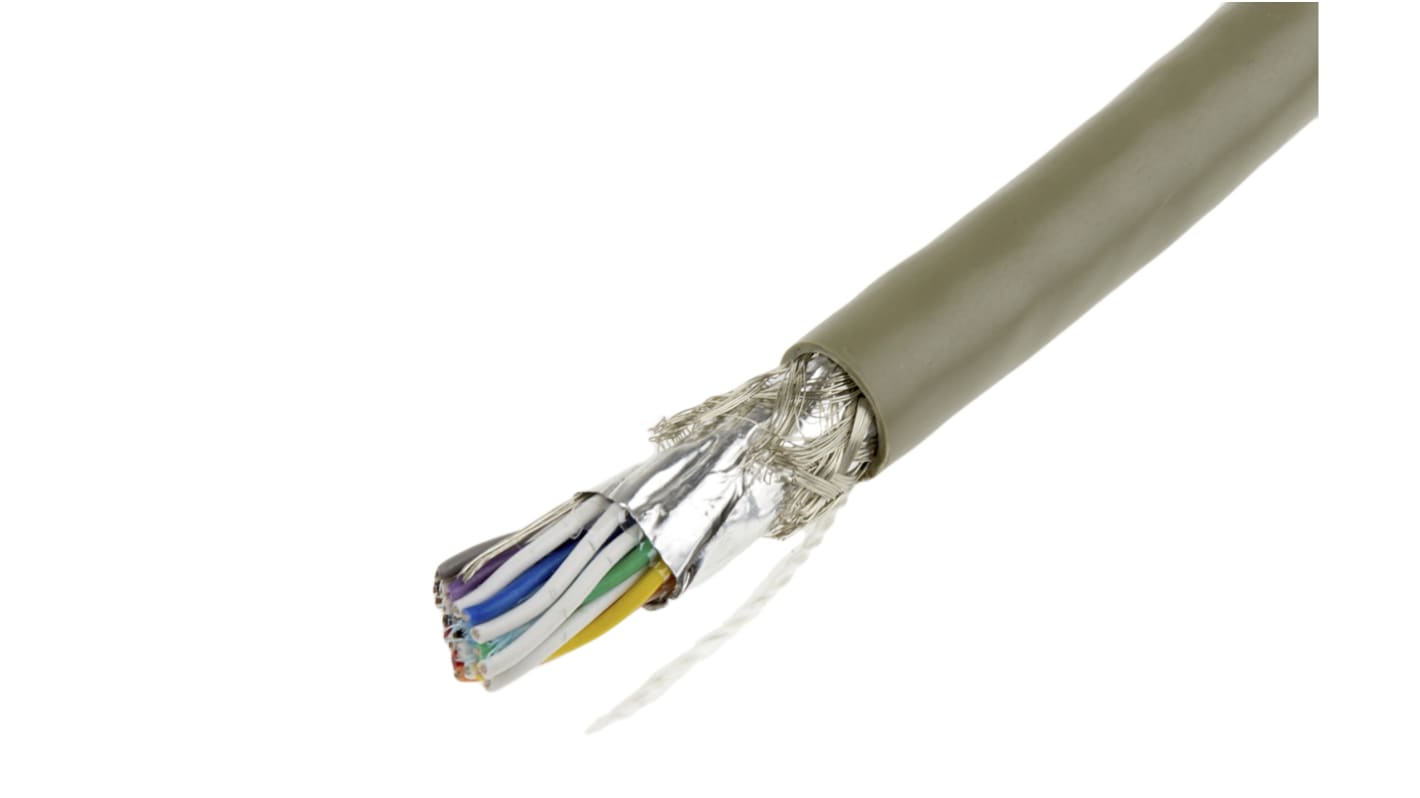

Alpha Wire ProTekt Series Data Cable, 11 Pairs, 22 Cores, 0.35 mm², Screened, 22 AWG, 50m, Foil and Braid Shield
- RS-artikelnummer:
- 740-4985
- Tillv. art.nr:
- B964114 GE321
- Tillverkare / varumärke:
- Alpha Wire
Price 1 rulle med 50 meter*
3 876,77 kr
(exkl. moms)
4 845,96 kr
(inkl. moms)
GRATIS leverans för beställningar över 500,00 kr
Tillfälligt slut
- Leverans från den 30 september 2025
Behöver du mer? Ange den kvantitet du behöver och klicka på "Kontrollera leveransdatum"
Rulle(ar) | Per rulle | Per meter* |
|---|---|---|
| 1 + | 3 876,77 kr | 77,535 kr |
*vägledande pris
- RS-artikelnummer:
- 740-4985
- Tillv. art.nr:
- B964114 GE321
- Tillverkare / varumärke:
- Alpha Wire
Hitta liknande produkter genom att välja ett eller flera attribut.
Välj alla | Attribut | Värde |
|---|---|---|
| Brand | Alpha Wire | |
| Number of Pairs | 11 | |
| Cross Sectional Area | 0.35 mm² | |
| Number of Cores | 22 | |
| American Wire Gauge | 22 AWG | |
| Screened/Unscreened | Screened | |
| Length | 50m | |
| Shield Type | Foil and Braid | |
| Sheath Colour | Grey | |
| Outer Diameter | 10.74mm | |
| Outer Sheath Material | PVC | |
| Cable Shape | Twisted Pair | |
| Characteristic Impedance | 77 Ω | |
| Core Strands | 7/30 AWG | |
| Fire Behaviour | Flame Retardant | |
| Voltage Rating | 300 V | |
| Standards Met | CE, CSA Certified, UL | |
| Series | ProTekt | |
Välj alla | ||
|---|---|---|
Brand Alpha Wire | ||
Number of Pairs 11 | ||
Cross Sectional Area 0.35 mm² | ||
Number of Cores 22 | ||
American Wire Gauge 22 AWG | ||
Screened/Unscreened Screened | ||
Length 50m | ||
Shield Type Foil and Braid | ||
Sheath Colour Grey | ||
Outer Diameter 10.74mm | ||
Outer Sheath Material PVC | ||
Cable Shape Twisted Pair | ||
Characteristic Impedance 77 Ω | ||
Core Strands 7/30 AWG | ||
Fire Behaviour Flame Retardant | ||
Voltage Rating 300 V | ||
Standards Met CE, CSA Certified, UL | ||
Series ProTekt | ||
