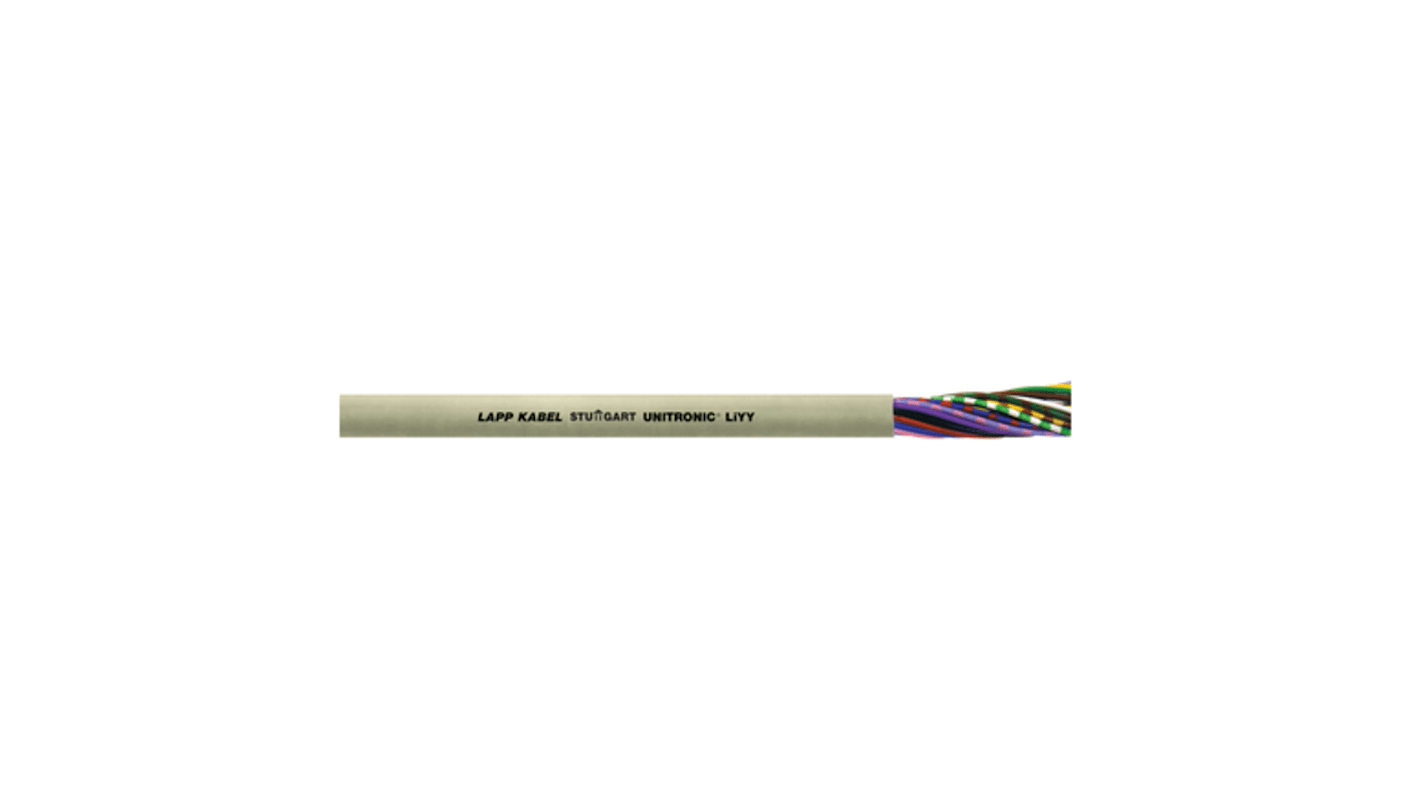

Lapp UNITRONIC LiYY Series Data Cable, 5 Cores, 0.34 mm², Unscreened, 22 AWG, 100m, Unshielded Shield, LiYY Cable

Se kategorien

Antal (1 rulle med 100 meter)*

1 938,05 kr

(exkl. moms)

2 422,56 kr

(inkl. moms)

Add to Basket
välj eller skriv kvantitet
I lager
  • 4 enhet(er) är redo att levereras
  • Dessutom levereras 12 enhet(er) från den 16 januari 2026
Behöver du mer? Ange den kvantitet du behöver och klicka på "Kontrollera leveransdatum"
Rulle(ar)
Per rulle
Per meter*
1 +1 938,05 kr19,381 kr

*vägledande pris

RS-artikelnummer:
445-1531
Distrelec artikelnummer:
301-73-002
Tillv. art.nr:
0028405
Tillverkare / varumärke:
Lapp
Hitta liknande produkter genom att välja ett eller flera attribut.
Välj alla

Brand

Lapp

Cross Sectional Area

0.34 mm²

Number of Cores

5

American Wire Gauge

22 AWG

Screened/Unscreened

Unscreened

Length

100m

Shield Type

Unshielded

Sheath Colour

Grey

CPR Certification

Eca

Cable Type

LiYY

Outer Diameter

5.5mm

Outer Sheath Material

PVC

Cable Shape

Multicore

Shielded/Unshielded

Unshielded

Fire Behaviour

Flame Retardant

Core Strands

7/0.25 mm

Series

UNITRONIC LiYY

Standards Met

IEC 60332-1-2

Maximum Operating Temperature

+80°C

Minimum Operating Temperature

-40°C

Voltage Rating

500 V

COO (Country of Origin):
DE

LAPP Data Cable, 120nF/km Operating Capacitance, 500V Peak Operating Voltage - UNITRONIC LiYY Series - 0028405


Keep your telecommunication devices in the know with this data cable from LAPP. Its fine-wire copper cores are highly conductive for ultra-fast transmissions without signal loss. Rest easy, as the PVC sheath shrugs off abrasion and wear. Thanks to a broad operating temperature range of -40°C to +80°C, this unit keeps its cool in harsh industrial environments.

Features & Benefits


• Cores are colour-coded for ease of identification during wiring
• Self-extinguishing for safety in the event of a fire
• PVC core insulation for shock-free handling and electrical safety

Applications


• Telecommunications networks
• Commercial offices
• Control equipment
• Consumer electronics

Can I install this cable in tight spaces?


Yes. Thanks to a compact outer diameter of 5.5mm, it's a sure fit for areas where space is limited.

Note

YY cable is not suitable for fixed wiring applications requiring compliance with the requirements set out in BS7671.
