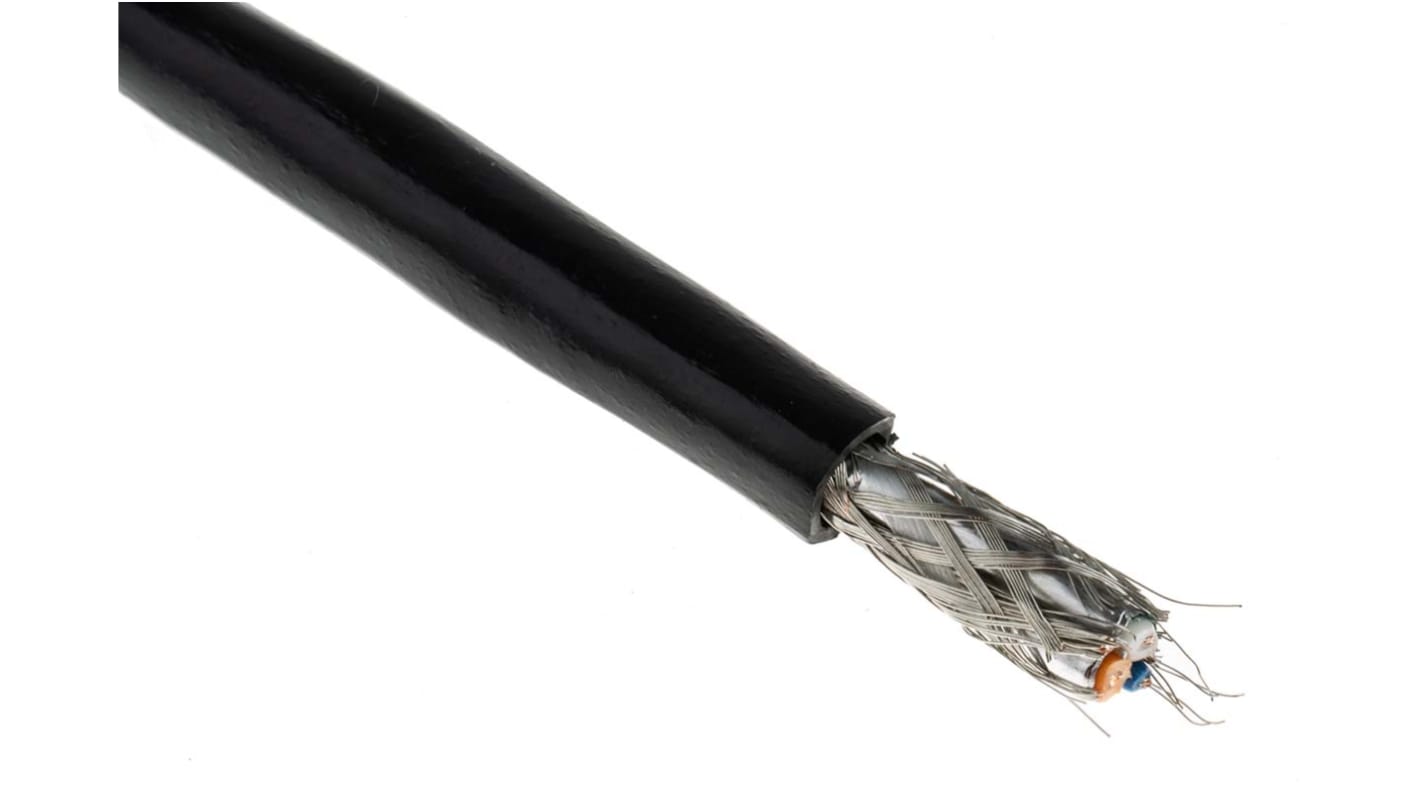

Belden 3106A Series Multicore Industrial Cable, 1 Pairs, 3 Cores, 0.36 mm², Screened, 22 AWG, 152m, Aluminium Foil-PET

RS-artikelnummer:: 382-7016
Tillv. art.nr:: 3106A 010500
Tillverkare / varumärke:: Belden

Belden 3106A Series Multicore Industrial Cable, 1 Pairs, 3 Cores, 0.36 mm², Screened, 22 AWG, 152m, Aluminium Foil-PET

Antal (1 rulle med 152 meter)*

12 465,69 kr

(exkl. moms)

15 582,11 kr

(inkl. moms)

GRATIS leverans för online beställningar över 500,00 kr

I lager

Dessutom levereras 16 enhet(er) från den 15 december 2025
Dessutom levereras 10 enhet(er) från den 15 december 2025
Dessutom levereras 7 enhet(er) från den 23 januari 2026

Behöver du mer? Ange den kvantitet du behöver och klicka på "Kontrollera leveransdatum"

Rulle(ar)	Per rulle	Per meter*
1 +	12 465,69 kr	82,011 kr

*vägledande pris

RS-artikelnummer:: 382-7016
Tillv. art.nr:: 3106A 010500
Tillverkare / varumärke:: Belden

Specifikationer

Datablad

Lagstiftning och ursprungsland

Produktdetaljer

Hitta liknande produkter genom att välja ett eller flera attribut.

Välj alla	Attribut	Värde
	Brand	Belden
	Number of Pairs	1
	Cross Sectional Area	0.36 mm²
	Number of Cores	3
	American Wire Gauge	22 AWG
	Screened/Unscreened	Screened
	Length	152m
	Shield Type	Aluminium Foil-PET Tape, Tinned Copper Braid
	Sheath Colour	Black
	CPR Certification	Eca
	Cable Type	RS-485
	Outer Diameter	7.62mm
	Outer Sheath Material	PVC
	Cable Shape	Twisted Pair
	Characteristic Impedance	120 Ω
	Standards Met	Euroclass Eca
	Minimum Operating Temperature	-20°C
	Maximum Operating Temperature	+60°C
	Shielded/Unshielded	Shielded
	Core Strands	7/0.25 mm
	Voltage Rating	300 V
	Series	3106A

	Välj alla
	Brand Belden
	Number of Pairs 1
	Cross Sectional Area 0.36 mm²
	Number of Cores 3
	American Wire Gauge 22 AWG
	Screened/Unscreened Screened
	Length 152m
	Shield Type Aluminium Foil-PET Tape, Tinned Copper Braid
	Sheath Colour Black
	CPR Certification Eca
	Cable Type RS-485
	Outer Diameter 7.62mm
	Outer Sheath Material PVC
	Cable Shape Twisted Pair
	Characteristic Impedance 120 Ω
	Standards Met Euroclass Eca
	Minimum Operating Temperature -20°C
	Maximum Operating Temperature +60°C
	Shielded/Unshielded Shielded
	Core Strands 7/0.25 mm
	Voltage Rating 300 V
	Series 3106A

COO (ursprungsland):: US

Belden Multi-Core Industrial Cable, 22AWG, 152m Length - 3106A 010500

Meet the data transmission demands of analogue and digital communication devices with this Belden multi-core industrial cable. Its tinned copper conductors are highly conductive for reliable performance and are corrosion-resistant, so can be relied on for an extended service life. Each core is protected by a patented aluminium polyester Beldfoil screen, which blocks interference for a clearer signal. Additional shielding is provided by a tinned copper braid that provides up to 65% coverage on all three cores. A 22AWG (American Wire Gauge) drain wire ensures effective grounding for reduced static.

Features & Benefits

• Minimal insertion loss of 0.5dB (decibels) at 100ft for high signal quality
• Supplied in a convenient 152m reel for use in multiple applications
• Polyvinyl chloride (PVC) jacket for resistance to abrasion and chemicals
• Wide operating temperature range of -20°C to +60°C for reliable performance in challenging environments

Applications

• Telecommunications
• Automated systems
• Personal computers
• Aerospace industry

What kind of insulation does this cable have?

This cable is insulated with Datalene made from FHDPE (foamed high-density polyethylene) material. It has high impact and heat resistance to protect the inner core in demanding applications.

Standards

NEC CM; PLTC CEC: CM
