Kabeltronik Twisted Pair Cable, 7 Cores, 0.14 mm², 26 AWG, 100m, Multicore Cable

Se kategorien
Inte tillgänglig
RS kommer inte längre att lagerföra denna produkt.

Alternativ

Denna produkt är för närvarande inte tillgänglig. Vi rekommenderar denna produkt istället.

presentation

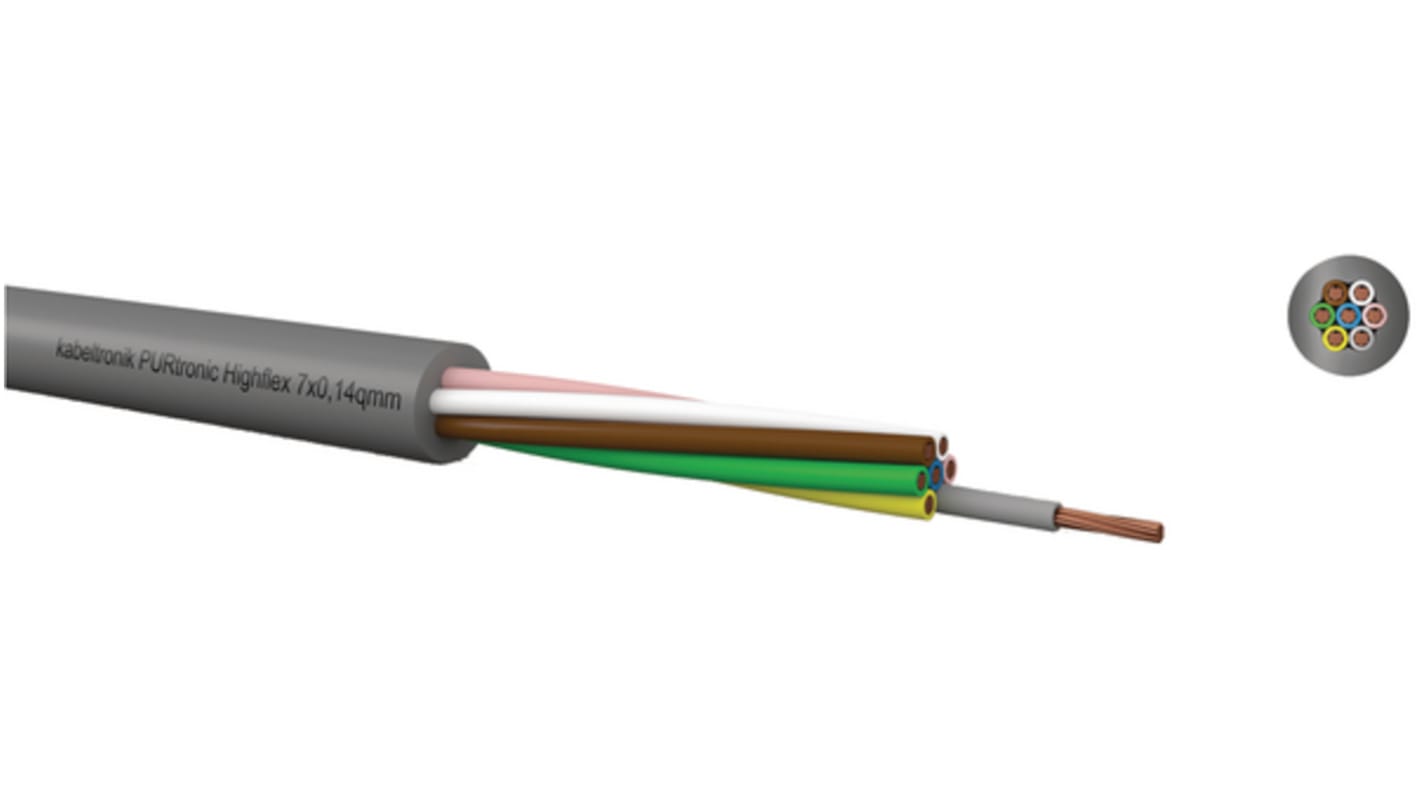

Kabeltronik PURtronic D Series Multicore Industrial Cable, 7 Cores, 0.14 mm², 26 AWG, 100m, Shielded Shield, Multicore
RS-artikelnummer
349-518

1 rulle med 100 meter

1 802,85 kr

(exkl. moms)

2 253,56 kr

(inkl. moms)

RS-artikelnummer:
284-4841
Distrelec artikelnummer:
301-04-325
Tillv. art.nr:
PURTRONIC HIGHFLEX 7X0.14 MM²
Tillverkare / varumärke:
Kabeltronik
Hitta liknande produkter genom att välja ett eller flera attribut.
Välj alla

Brand

Kabeltronik

Cross Sectional Area

0.14 mm²

Number of Cores

7

American Wire Gauge

26 AWG

Length

100m

Sheath Colour

Grey

Cable Type

Multicore

COO (Country of Origin):
DE
The cable is a highly flexible, halogen-free, and shielded control cable with a PUR jacket. It is ideal for use in measurement, signal, control, and regulation technology, as well as in mechanically demanding environments. With high flexibility, a low outer diameter, and excellent mechanical and chemical resistance, this cable is a top choice for demanding applications.

Bare stranded copper wire conductor for reliable performance
TPE-E (Hytrel) core insulation for safety and durability
PUR outer jacket for protection against mechanical stress and chemical exposure
Insulation resistance of at least 10MOhm x km at +20°C for secure operation
Operating voltage of 500V and testing voltage of 1200V for versatility
