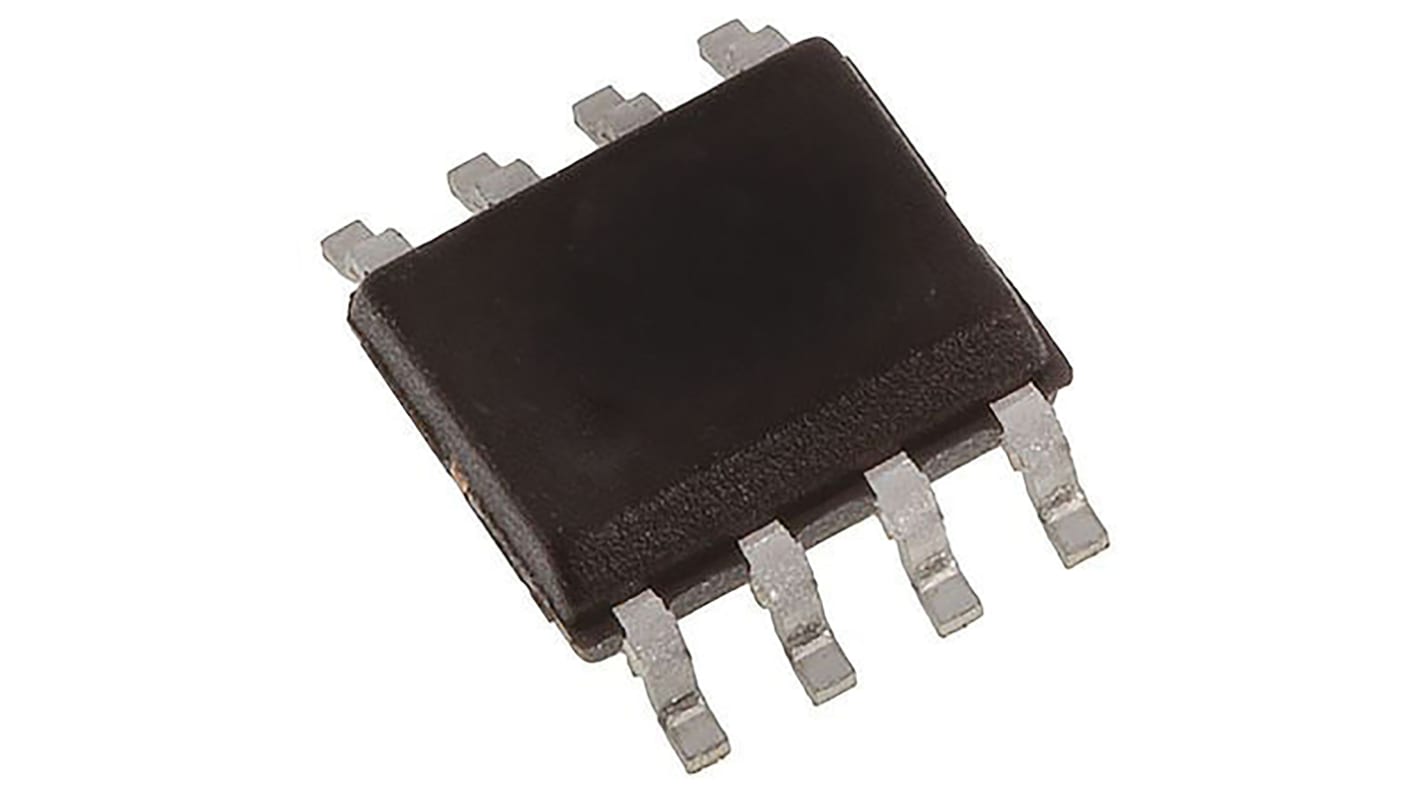

Semtech SMDA12C.TBT, Quad-Element Bi-Directional TVS Diode, 300W, 8-Pin SOIC
- RS-artikelnummer:
- 691-0821
- Tillv. art.nr:
- SMDA12C.TBT
- Tillverkare / varumärke:
- Semtech
Se alla TVS Diodes
85 I lager för avsändande samma dag
Pris (ex. moms) Each
51,62 kr
(exkl. moms)
64,52 kr
(inkl. moms)
| Enheter | Per unit |
| 1 - 4 | 51,62 kr |
| 5 - 9 | 44,41 kr |
| 10 - 49 | 39,57 kr |
| 50 - 99 | 37,85 kr |
| 100 + | 35,81 kr |
Förpackningsalternativ:
- RS-artikelnummer:
- 691-0821
- Tillv. art.nr:
- SMDA12C.TBT
- Tillverkare / varumärke:
- Semtech
Lagstiftning och ursprungsland
Produktdetaljer
SMDAxxC Series, Bidirectional TVS Array for Protection of Four Lines
300 Watts Peak Pulse Power (tp = 8/20μs)
Transient protection for data lines to:
IEC 61000-4-2 (ESD) ±15kV (air), ±8kV (contact)
IEC 61000-4-4 (EFT) 40A (5/50ns)
IEC 61000-4-5 (Lightning) 12A (8/20μs)
Bidirectional protection
Protects four I/O lines
Low leakage current
Transient protection for data lines to:
IEC 61000-4-2 (ESD) ±15kV (air), ±8kV (contact)
IEC 61000-4-4 (EFT) 40A (5/50ns)
IEC 61000-4-5 (Lightning) 12A (8/20μs)
Bidirectional protection
Protects four I/O lines
Low leakage current
Transient Voltage Suppressors, Semtech
Specifikationer
| Attribute | Value |
| Diode Configuration | Isolated |
| Direction Type | Bi-Directional |
| Maximum Clamping Voltage | 24V |
| Minimum Breakdown Voltage | 13.3V |
| Mounting Type | Surface Mount |
| Package Type | SOIC |
| Maximum Reverse Stand-off Voltage | 12V |
| Pin Count | 8 |
| Peak Pulse Power Dissipation | 300W |
| Maximum Peak Pulse Current | 12A |
| ESD Protection | Yes |
| Number of Elements per Chip | 4 |
| Minimum Operating Temperature | -55 °C |
| Dimensions | 5 x 4 x 1.5mm |
| Maximum Operating Temperature | +125 °C |
| Maximum Reverse Leakage Current | 1µA |
| Test Current | 1mA |
| Height | 1.5mm |
| Width | 4mm |
| Length | 5mm |
