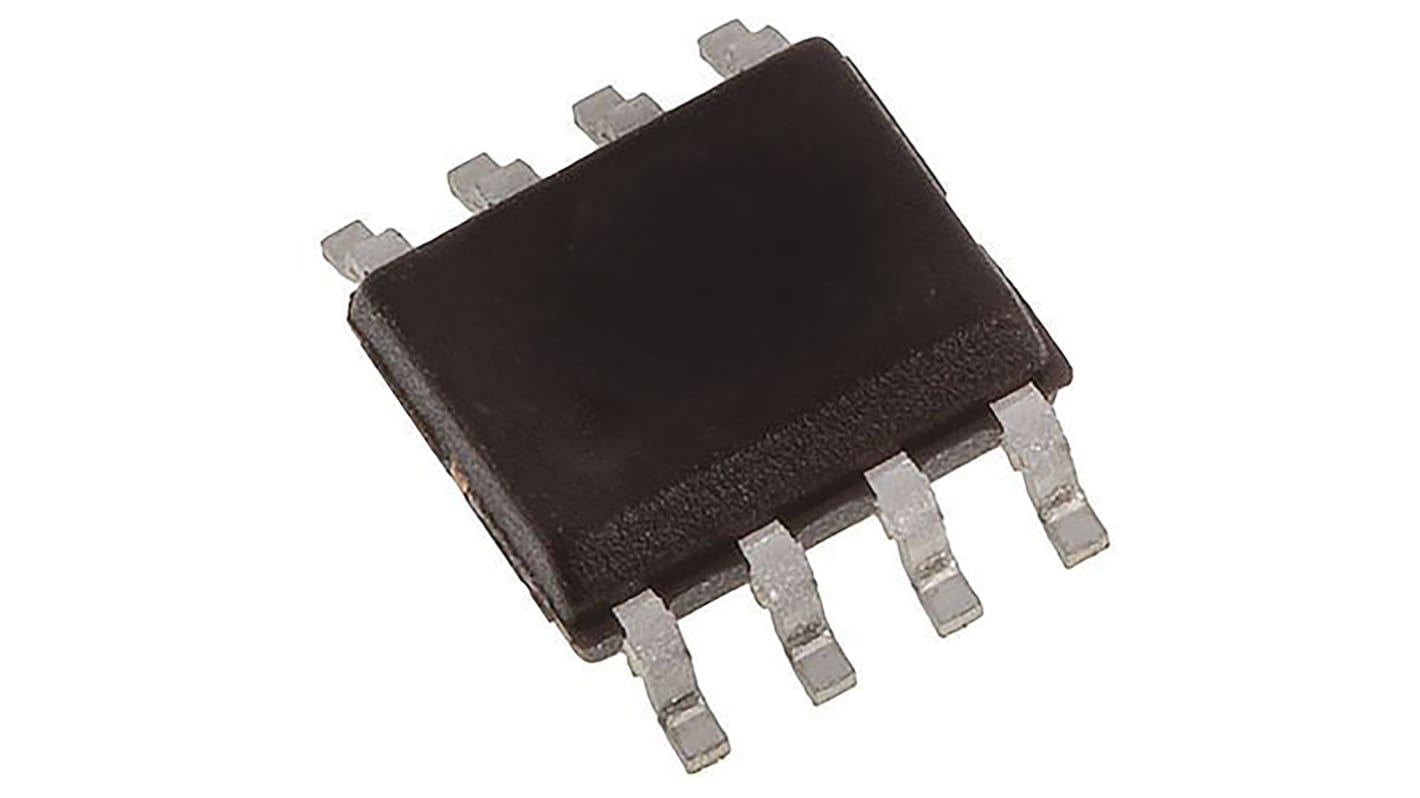

STMicroelectronics ESDA6V1U1RL, Hex-Element Uni-Directional TVS Diode, 200W, 8-Pin SOIC

RS-artikelnummer:: 248-710
Tillv. art.nr:: ESDA6V1U1RL
Tillverkare / varumärke:: STMicroelectronics

STMicroelectronics ESDA6V1U1RL, Hex-Element Uni-Directional TVS Diode, 200W, 8-Pin SOIC

Denna produkt har utgått

RS-artikelnummer:: 248-710
Tillv. art.nr:: ESDA6V1U1RL
Tillverkare / varumärke:: STMicroelectronics

ESDA6V1U1 TRANSIL ARRAY FOR ESD PROTECTION Data Sheet
ESD Control Selection Guide V1

relaterade länkar

STMicroelectronics ESDA6V1U1RL 200W, 8-Pin SOIC
Semtech SMDA05-6.TBT 300W, 8-Pin SOIC
onsemi SMF05T1G 200W, 5-Pin SOT-323
Semtech RCLAMP1654P.TCT 200W, 6-Pin SLP EP
Nexperia PESD12VU1UT Dual-Element Uni-Directional TVS Diode 3-Pin SOT-23
Wurth Elektronik 82401646 8-Pin MSOP
Bourns CDDFN10-0516P 10-Pin DFN
onsemi NUP4201DR2G 500W, 8-Pin SOIC

Attribute	Value
Diode Configuration	Common Anode
Direction Type	Uni-Directional
Minimum Breakdown Voltage	6.1V
Mounting Type	Surface Mount
Package Type	SOIC
Maximum Reverse Stand-off Voltage	5V
Pin Count	8
Peak Pulse Power Dissipation	200W
ESD Protection	Yes
Number of Elements per Chip	6
Minimum Operating Temperature	-55 °C
Maximum Operating Temperature	+125 °C
Dimensions	5 x 4 x 1.25mm
Test Current	1mA
Width	4mm
Length	5mm
Height	1.25mm
Maximum Reverse Leakage Current	2µA

STMicroelectronics ESDA6V1U1RL, Hex-Element Uni-Directional TVS Diode, 200W, 8-Pin SOIC

Transil™ Quad Array for ESD Protection, ESDA Series, STMicroelectronics
