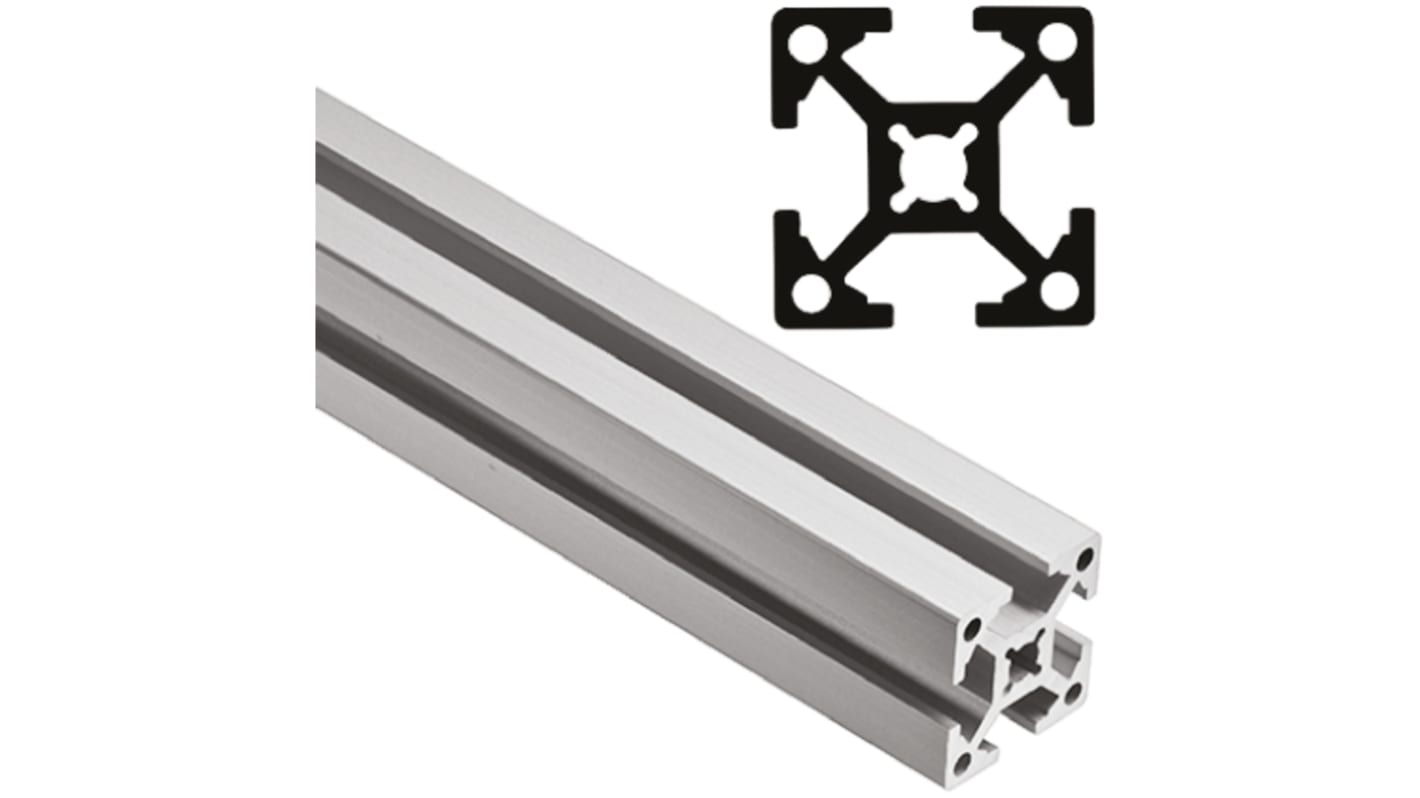

FlexLink Silver Aluminium Profile Strut, 22 x 22 mm, 5.6mm Groove, 1000mm Length, Series XD
- RS-artikelnummer:
- 249-0095
- Tillv. art.nr:
- XDBM 1X22
- Tillverkare / varumärke:
- FlexLink
37 I lager för avsändande samma dag
Pris (ex. moms) Varje
157,59 kr
(exkl. moms)
196,99 kr
(inkl. moms)
Enheter | Per enhet |
|---|---|
| 1 - 4 | 157,59 kr |
| 5 - 9 | 151,27 kr |
| 10 + | 148,16 kr |
- RS-artikelnummer:
- 249-0095
- Tillv. art.nr:
- XDBM 1X22
- Tillverkare / varumärke:
- FlexLink
Datablad
Lagstiftning och ursprungsland
RoHS-status: Inte relevant
- COO (Country of Origin):
- SE
Produktdetaljer
22mm x 22mm Beams
The XD range is for compact, light duty structures, featuring a range of sizes and slot configurations based upon 22mm and 44mm widths and including 2&3 T-slot sections for enclosures. The XD range is ideal for frameworks of up to 1mtr square with static point loads of up to 200N.
Specifikationer
Attribute | Value |
|---|---|
| Strut Profile | 22 x 22 mm |
| Structural Element Type | Strut Profile |
| Length | 1000mm |
| Groove Size | 5.6mm |
| Number of Grooves | 4 |
| Material | Aluminium |
| Colour | Silver |
| Product System | XD |
| Series | XD |
