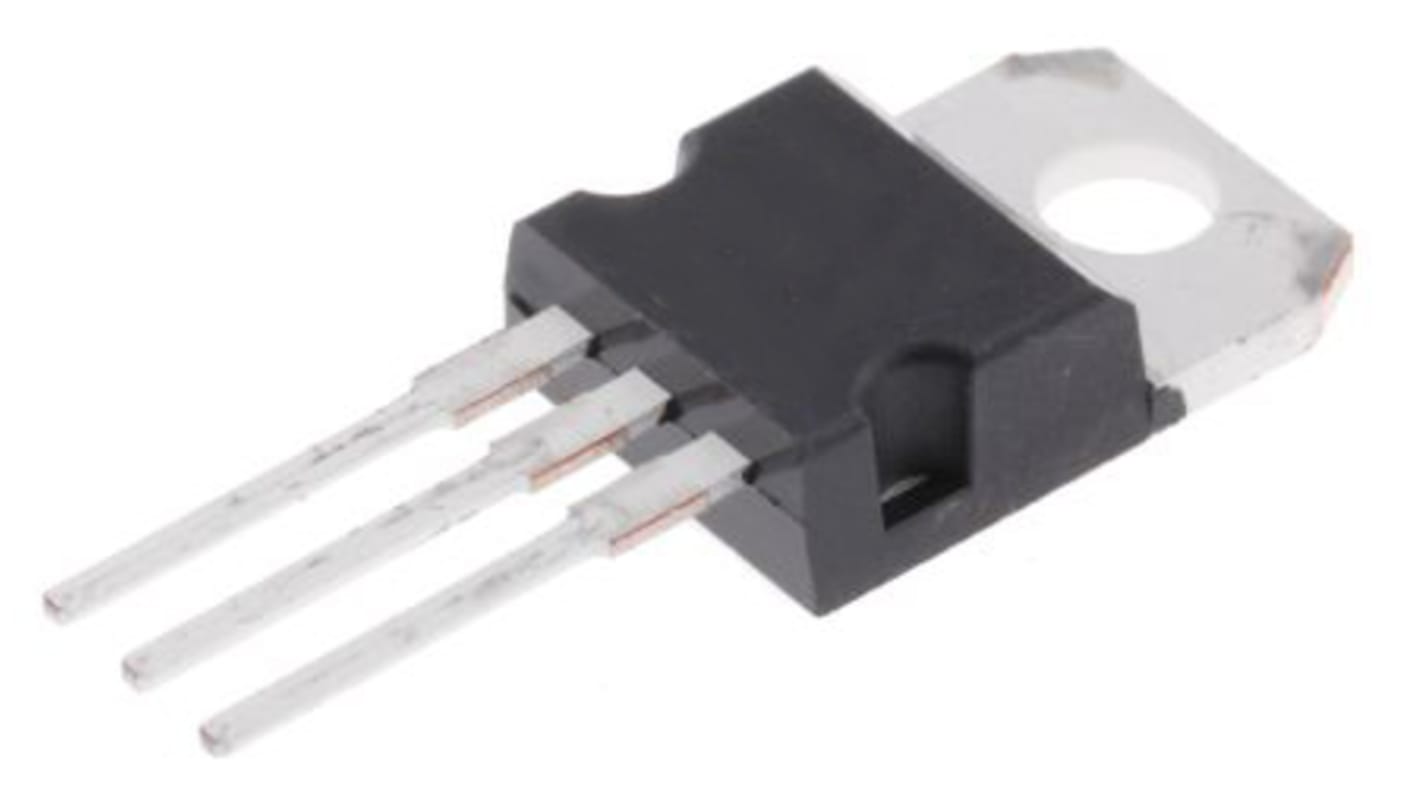

STMicroelectronics Through Hole, 3-pin, TRIAC, 600V

Se alla TRIACs

Antal (1 rör med 50 enheter)*

705,60 kr

(exkl. moms)

882,00 kr

(inkl. moms)

Add to Basket
välj eller skriv kvantitet
I lager
  • Dessutom levereras 850 enhet(er) från den 26 januari 2026
Behöver du mer? Ange den kvantitet du behöver och klicka på "Kontrollera leveransdatum"
Enheter
Per enhet
Per Rør*
50 +14,112 kr705,60 kr

*vägledande pris

RS-artikelnummer:
188-8299
Tillv. art.nr:
T3050H-6T
Tillverkare / varumärke:
STMicroelectronics
Hitta liknande produkter genom att välja ett eller flera attribut.
Välj alla

Brand

STMicroelectronics

Rated Average On-State Current

30A

Mounting Type

Through Hole

Package Type

TO-220AB

Surge Current Rating

284A

Pin Count

3

Repetitive Peak Forward Blocking Voltage

600V

Maximum Holding Current

75mA

Dimensions

10.4 x 4.6 x 15.9mm

Length

10.4mm

Width

4.6mm

Height

15.9mm

Maximum Operating Temperature

+150 °C

Minimum Operating Temperature

-40 °C

Specifically designed to operate at 150 °C, the 30 A T3035H, T3050H Triacs provide very high dynamic and enhanced performance in terms of power loss and thermal dissipation. This allows the heatsink size optimization, leading to space and cost effectiveness when compared to electro-mechanical solutions. Based on ST Snubberless™ technology, they offer a specified minimal commutation and high noise immunity levels valid up to the Tj max. These devices safely optimize the control of universal motors and of inductive loads found in power tools and major appliances. By using an internal ceramic pad, they provide voltage insulation (rated at 2500 VRMS).

High current Triac
High immunity level
Low thermal resistance with clip bonding
Very high 3 quadrant commutation at 150 °C capability
Applications
Thanks to its high electrical noise immunity level and its strong current robustness, the T3035H, T3050H series is designed for the control of AC actuators in appliances and industrial systems
