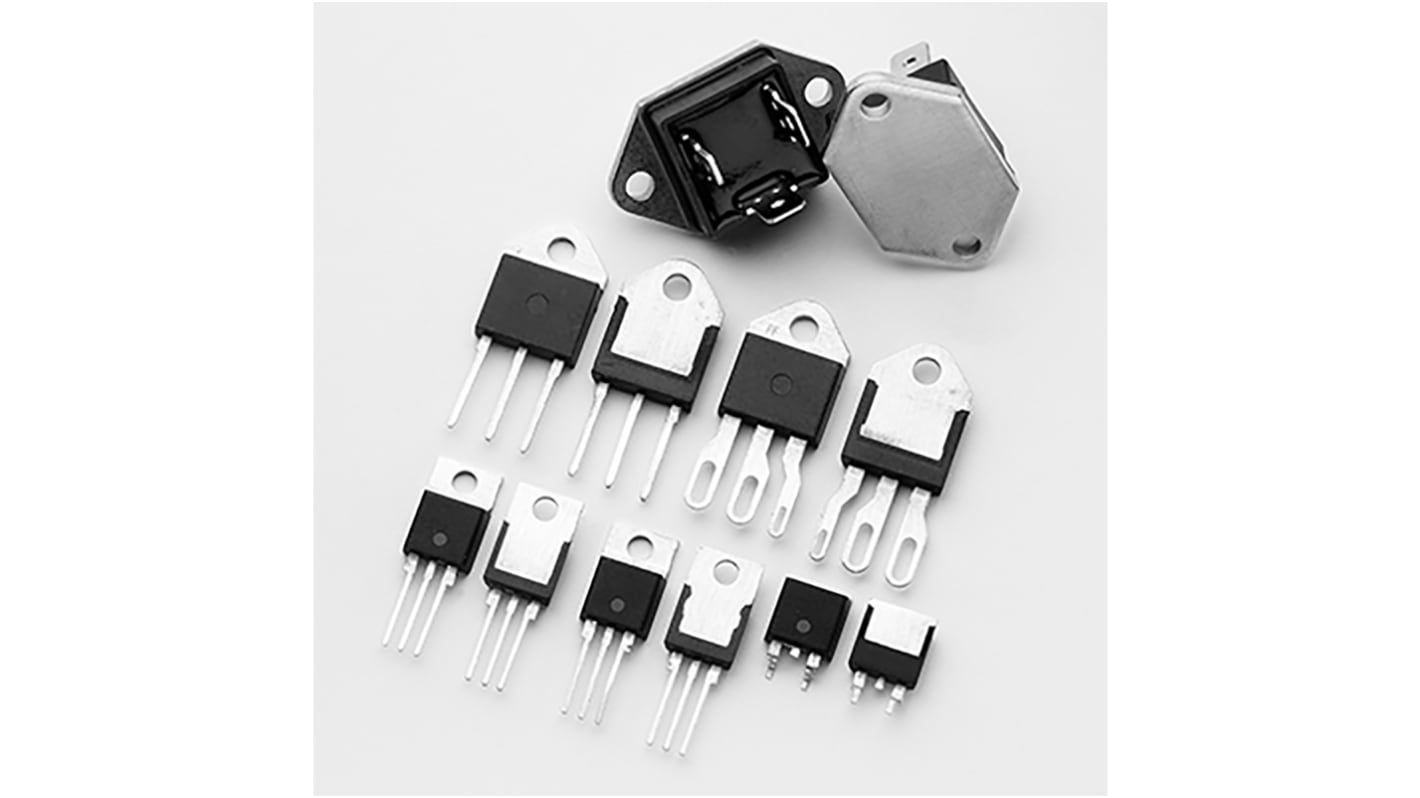

Littelfuse Through Hole, 3-pin, TRIAC, 400V, Gate Trigger 2.5V

Se alla TRIACs

Antal (1 rör med 500 enheter)*

12 037,00 kr

(exkl. moms)

15 046,00 kr

(inkl. moms)

Add to Basket
välj eller skriv kvantitet
Tillfälligt slut
  • Leverans från den 15 april 2026
Behöver du mer? Ange den kvantitet du behöver och klicka på "Kontrollera leveransdatum"
Enheter
Per enhet
Per Rør*
500 +24,074 kr12 037,00 kr

*vägledande pris

RS-artikelnummer:
171-9495
Tillv. art.nr:
Q4025L6TP
Tillverkare / varumärke:
Littelfuse
Hitta liknande produkter genom att välja ett eller flera attribut.
Välj alla

Brand

Littelfuse

Rated Average On-State Current

25A

Mounting Type

Through Hole

Package Type

TO-220AB

Maximum Gate Trigger Current

80mA

Repetitive Peak Reverse Voltage

400V

Surge Current Rating

250A

Pin Count

3

Maximum Gate Trigger Voltage

2.5V

Maximum Holding Current

50mA

Dimensions

10.67 x 4.78 x 15.75mm

Length

10.67mm

Width

4.78mm

Height

15.75mm

Peak On-State Voltage

1.4V

Minimum Operating Temperature

-25 °C

Repetitive Peak Off-State Current

5000µA

Maximum Operating Temperature

+125 °C

COO (Country of Origin):
CN
25 Amp bi-directional solid state switch series is designed for AC switching and phase control applications such as motor speed and temperature modulation controls, lighting controls, and static switching relays. Standard type devices normally operate in Quadrants I & III triggered from AC line. Alternistor type devices only operate in quadrants I, II, & III and are used in circuits requiring high dv/dt capability.

Features & Benefits:
Glass — passivated junctions
Voltage capability up to 1000 V
Surge capability up to 250 A
Applications:
Excellent for AC switching and phase control applications such as heating, lighting, and motor speed controls.
Typical applications are AC solid-state switches, industrial power tools, exercise equipment, white goods and commercial appliances.
Alternistor Triacs (no snubber required) are used in applications with extremely inductive loads requiring highest commutation performance.
Internally constructed isolated packages are offered for ease of heat sinking with highest isolation voltage.
