EPCOS N87 Transformer Core, 250nH, For Use With Power Transformers
- RS-artikelnummer:
- 125-3655
- Tillv. art.nr:
- B66317G0250X187
- Tillverkare / varumärke:
- EPCOS
Inte tillgänglig
RS kommer inte längre att lagerföra denna produkt.
- RS-artikelnummer:
- 125-3655
- Tillv. art.nr:
- B66317G0250X187
- Tillverkare / varumärke:
- EPCOS
Specifikationer
Datablad
Lagstiftning och ursprungsland
Produktdetaljer
Hitta liknande produkter genom att välja ett eller flera attribut.
Välj alla | Attribut | Värde |
|---|---|---|
| Brand | EPCOS | |
| For Use With | Power Transformers | |
| Dimensions | 25 x 7.5 x 12.8mm | |
| AL Rating | 250nH | |
| Material | N87 | |
| Depth | 12.8mm | |
| Length | 25mm | |
| Width | 7.5mm | |
| Standards Met | IEC 61246 | |
| Välj alla | ||
|---|---|---|
Brand EPCOS | ||
For Use With Power Transformers | ||
Dimensions 25 x 7.5 x 12.8mm | ||
AL Rating 250nH | ||
Material N87 | ||
Depth 12.8mm | ||
Length 25mm | ||
Width 7.5mm | ||
Standards Met IEC 61246 | ||
- COO (Country of Origin):
- CZ

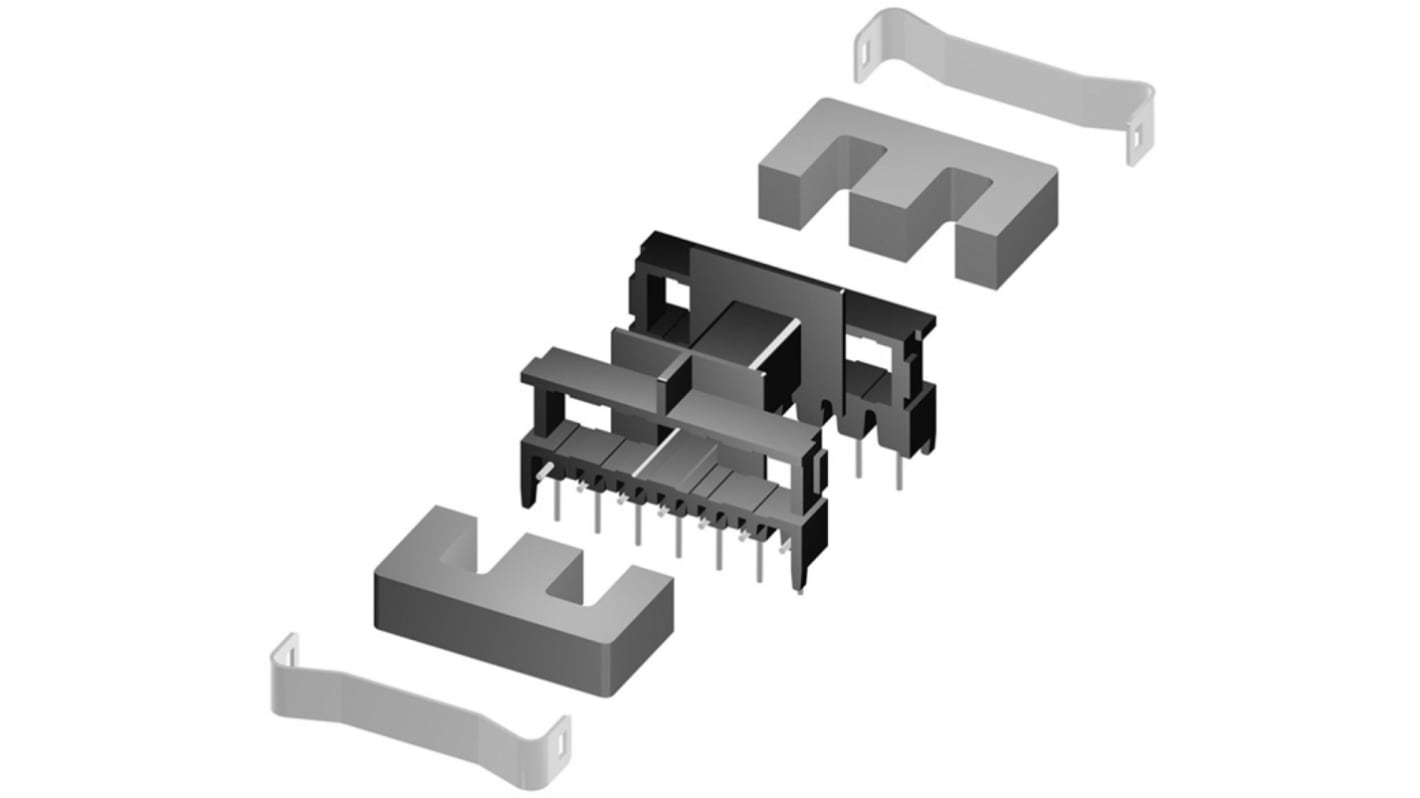

EPCOS B66317 E25/13/7 Ferrite Cores
EPCOS B66317 E25/13/7 ferrite cores have a rectangular centre leg with compact mounting dimensions and wide openings on each side. Suitable for power applications in the frequency range up to 100 KHz. The materials used in the cores N27, N87 feature a high saturation flux density and low-power loss. To IEC 61246.
EPCOS Ferrite Cores
