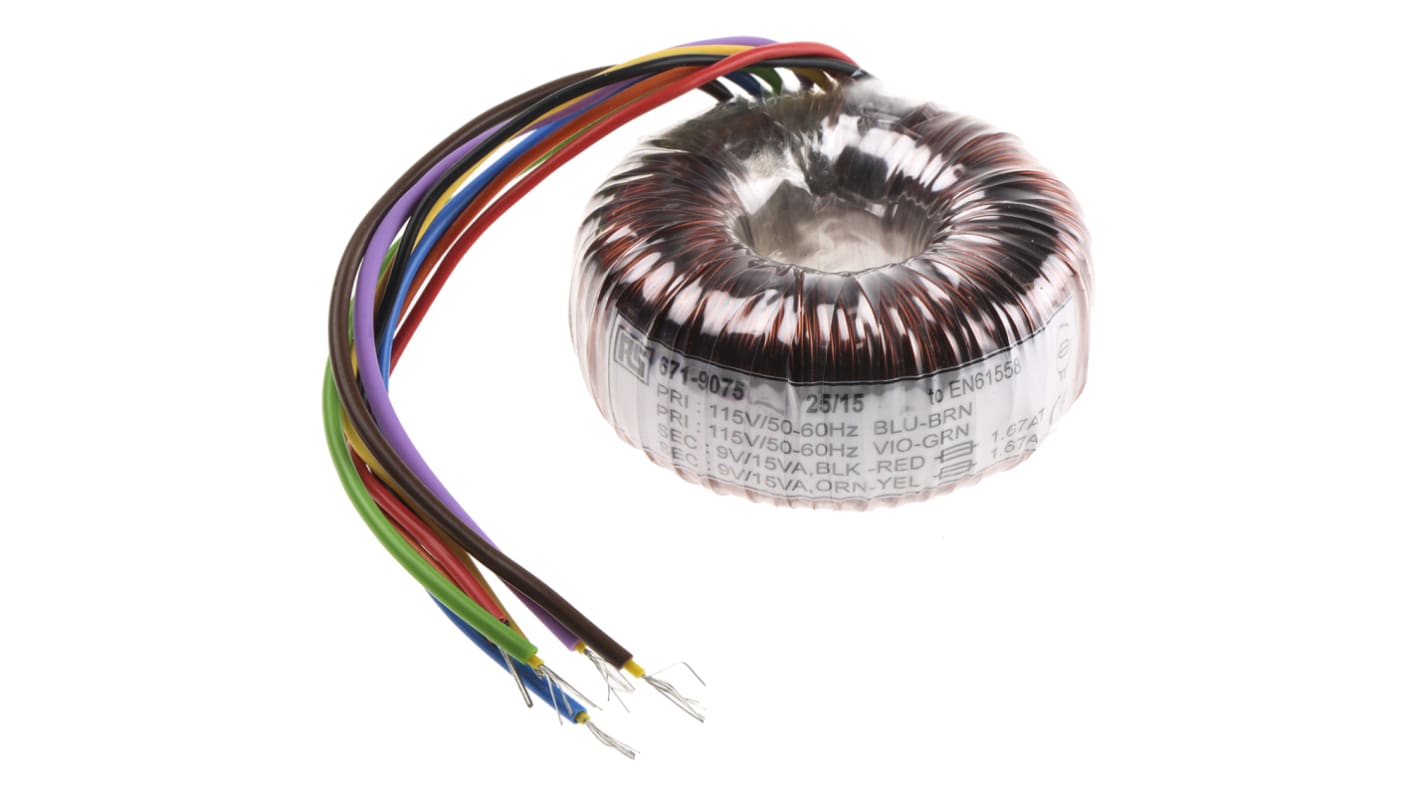

RS PRO 115 V ac, 230 V ac, 2 x 9V ac Toroidal Transformer, 30VA 2 Output

RS-artikelnummer:: 671-9075
Tillverkare / varumärke:: RS PRO

RS PRO 115 V ac, 230 V ac, 2 x 9V ac Toroidal Transformer, 30VA 2 Output

Mängdrabatt möjlig

Antal (1 enhet)*

314,82 kr

(exkl. moms)

393,52 kr

(inkl. moms)

GRATIS leverans för online beställningar över 500,00 kr

I lager

Dessutom levereras 16 enhet(er) från den 15 december 2025
Dessutom levereras 2 enhet(er) från den 15 december 2025
Dessutom levereras 18 enhet(er) från den 22 december 2025

Behöver du mer? Ange den kvantitet du behöver och klicka på "Kontrollera leveransdatum"

Enheter	Per enhet
1 - 9	314,82 kr
10 +	283,02 kr

*vägledande pris

RS-artikelnummer:: 671-9075
Tillverkare / varumärke:: RS PRO

Specifikationer

Datablad

Lagstiftning och ursprungsland

Produktdetaljer

Hitta liknande produkter genom att välja ett eller flera attribut.

Välj alla	Attribut	Värde
	Brand	RS PRO
	Primary Voltage Rating	115 V ac, 230 V ac
	Secondary Voltage Rating	2 x 9V ac
	Power Rating	30VA
	Number of Outputs	2
	Secondary Current	1.667A
	Height	32mm
	Weight	503g
	Diameter	70mm
	Dimensions	70 (Dia.) x 32mm
	Minimum Operating Frequency	50Hz
	Maximum Operating Frequency	60Hz
	Termination Type	Copper Conductor Termination Wire

	Välj alla
	Brand RS PRO
	Primary Voltage Rating 115 V ac, 230 V ac
	Secondary Voltage Rating 2 x 9V ac
	Power Rating 30VA
	Number of Outputs 2
	Secondary Current 1.667A
	Height 32mm
	Weight 503g
	Diameter 70mm
	Dimensions 70 (Dia.) x 32mm
	Minimum Operating Frequency 50Hz
	Maximum Operating Frequency 60Hz
	Termination Type Copper Conductor Termination Wire

Logga in för att ladda ner CAD-modeller

Toroid open wound dual 115V primary

High quality open style toroidal transformers with dual 115Vac 50/60Hz primary windings and twin secondary windings which may be connected in series or parallel or used independently.

Features & Benefits

• Small size and low weight compared with traditional stacked lamination types

• Extremely low level of radiated magnetic field

• Very low induced noise (hum)

• Very low iron loss

• Double insulated primary leads

Note

Mounting hardware is not supplied, available seperately

Warning

Under no circumstances should both ends of the fixing bolt simultaneously contact the metal chassis or framework as this would create a potentially dangerous 'shorted-turn'.
