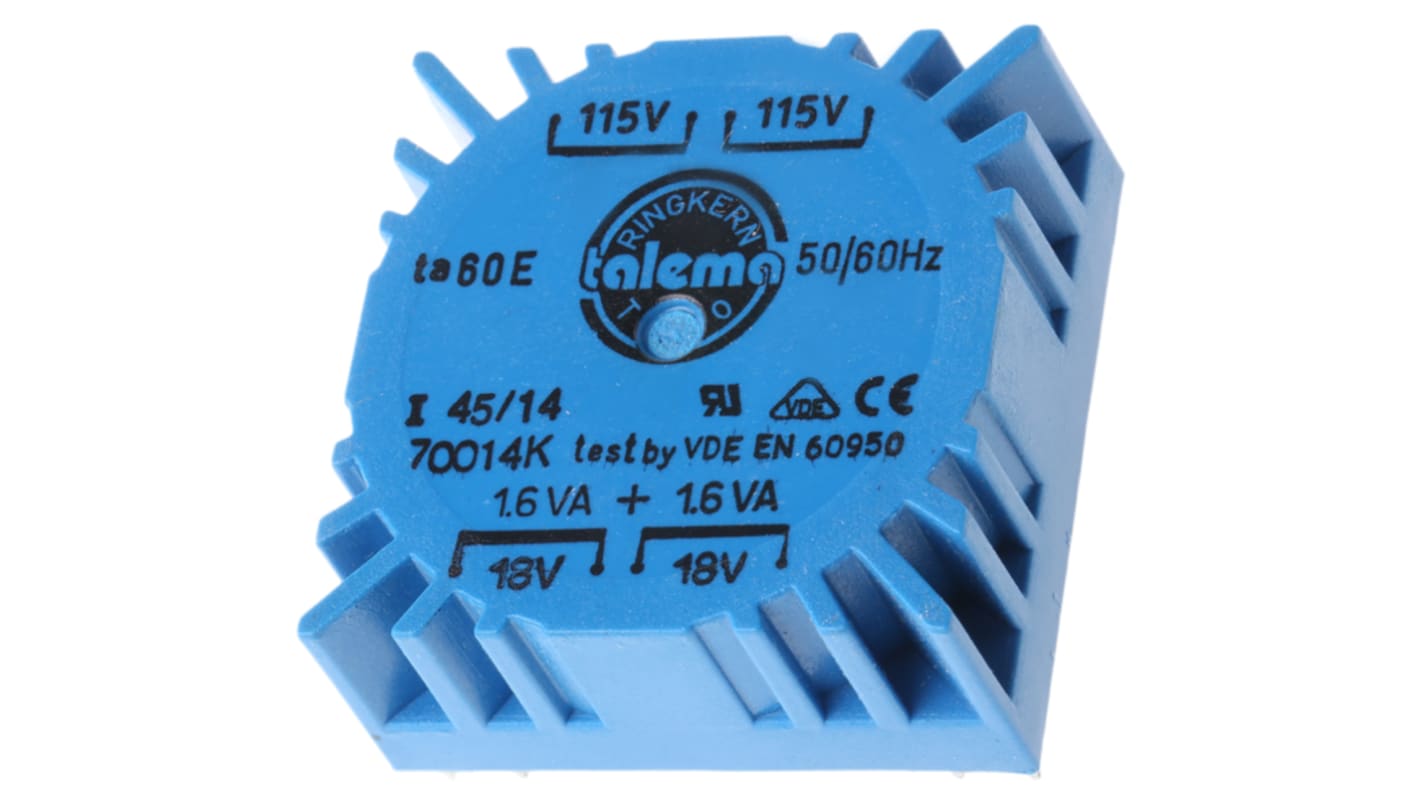

Nuvotem Talema 230 V ac 2 x 18 V ac Toroidal Transformer 2 Output 3.2 VA, UL, IEC

RS-artikelnummer:: 223-9092
Tillv. art.nr:: 70014K
Tillverkare / varumärke:: Nuvotem Talema

Nuvotem Talema 230 V ac 2 x 18 V ac Toroidal Transformer 2 Output 3.2 VA, UL, IEC

Antal (1 enhet)*

333,54 kr

(exkl. moms)

416,92 kr

(inkl. moms)

GRATIS leverans för online beställningar över 500,00 kr

I lager

89 enhet(er) är redo att levereras
Plus 2 enhet(er) är redo att levereras från en annan plats

Behöver du mer? Ange den kvantitet du behöver och klicka på "Kontrollera leveransdatum"

Enheter	Per enhet
1 +	333,54 kr

*vägledande pris

RS-artikelnummer:: 223-9092
Tillv. art.nr:: 70014K
Tillverkare / varumärke:: Nuvotem Talema

Specifikationer

Datablad

Lagstiftning och ursprungsland

Produktdetaljer

Hitta liknande produkter genom att välja ett eller flera attribut.

Välj alla	Attribut	Värde
	Brand	Nuvotem Talema
	Product Type	Toroidal Transformer
	Primary Voltage	230 V ac
	Secondary Voltage	2 x 18 V ac
	Number of Outputs	2
	Secondary Current	89 mA
	Power	3.2VA
	Weight	110g
	Minimum Operating Frequency	50Hz
	Maximum Operating Frequency	60Hz
	Toroid Centre	Potted
	Winding Type	Dual Primary
	Maximum Operating Temperature	60°C
	Mount Type	PCB
	Series	70000
	Termination Type	Pin
	Standards/Approvals	UL, IEC

	Välj alla
	Brand Nuvotem Talema
	Product Type Toroidal Transformer
	Primary Voltage 230 V ac
	Secondary Voltage 2 x 18 V ac
	Number of Outputs 2
	Secondary Current 89 mA
	Power 3.2VA
	Weight 110g
	Minimum Operating Frequency 50Hz
	Maximum Operating Frequency 60Hz
	Toroid Centre Potted
	Winding Type Dual Primary
	Maximum Operating Temperature 60°C
	Mount Type PCB
	Series 70000
	Termination Type Pin
	Standards/Approvals UL, IEC

Datasheet

Logga in för att ladda ner CAD-modeller

Miniature Encapsulated PCB Mount 115/230Vac Primary Transformers

This series of fully encapsulated PCB mounting toroidal transformers feature twin 115 V ac 50/60Hz primary windings that can be connected in series to a 230 V supply or in parallel for 115 V supplies. With a low weight and compact size, these toroidal transformers are ideal where space is at a premium, offering low magnetic interference, low noise and high efficiency. An M4 central bush allows for easy mounting

Low profile compact design

Fully encapsulated to UL94-V0

Extremely low level of radiated magnetic field

Extremely low level of hum and noise

High efficiency and low temperature rise

Ease of mounting

100% electrical and flash tested

Encapsulated – Toroidal

Note

Fixing screws not provided

Approvals

UL recognised, VDE

Standards

EN60950, VDE0805, UL506, UL1950, UL6500
