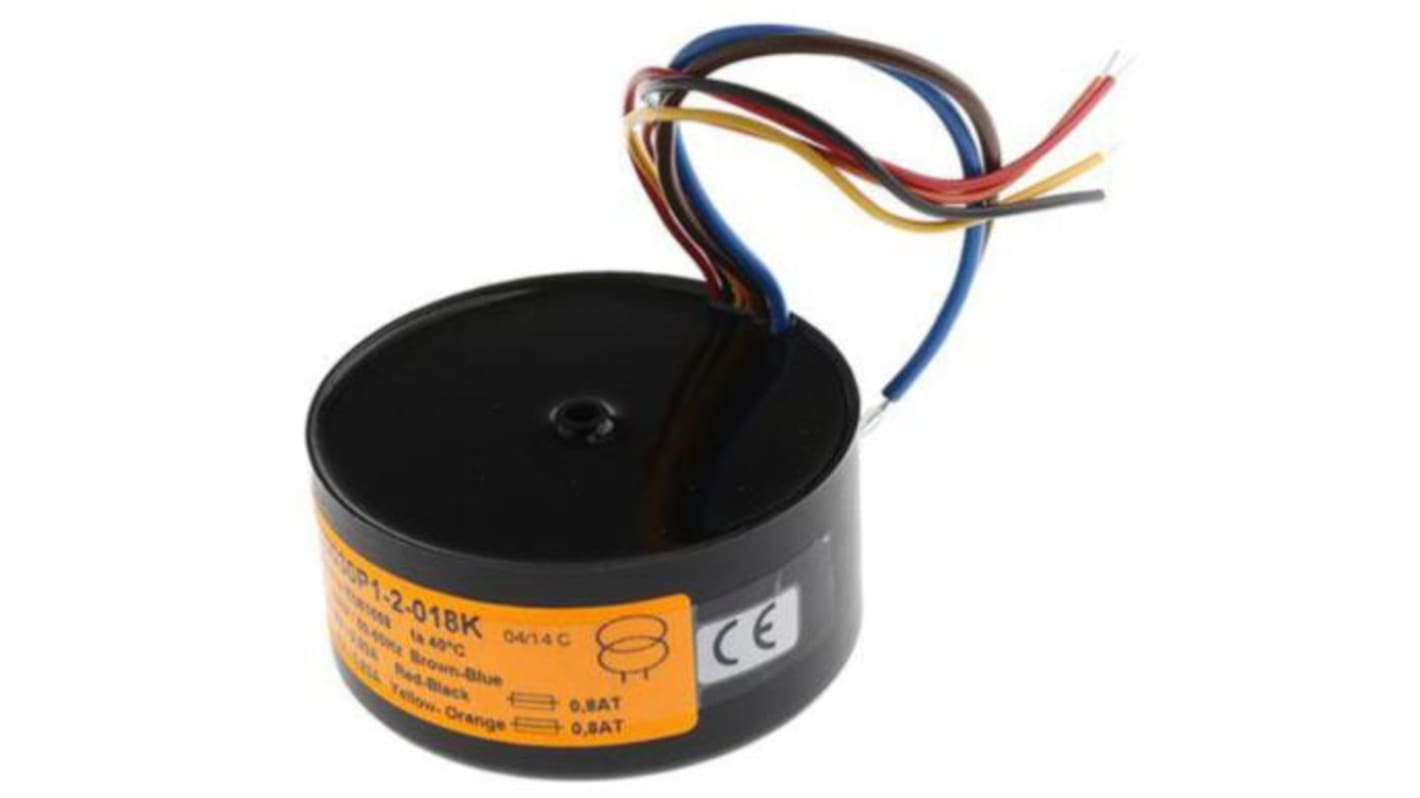

Nuvotem Talema 230 V 2 x 6 V Toroidal Transformer 2 Output 50 VA, EN60065, UL5 (File E15495), BS415, UL506, EN61558
- RS-artikelnummer:
- 223-8623
- Tillv. art.nr:
- 0050P1-2-018K
- Tillverkare / varumärke:
- Nuvotem Talema
Antal (1 enhet)*
652,51 kr
(exkl. moms)
815,64 kr
(inkl. moms)
GRATIS leverans för online beställningar över 500,00 kr
I lager
- Dessutom levereras 205 enhet(er) från den 02 februari 2026
Behöver du mer? Ange den kvantitet du behöver och klicka på "Kontrollera leveransdatum"
Enheter | Per enhet |
|---|---|
| 1 + | 652,51 kr |
*vägledande pris
- RS-artikelnummer:
- 223-8623
- Tillv. art.nr:
- 0050P1-2-018K
- Tillverkare / varumärke:
- Nuvotem Talema
Specifikationer
Datablad
Lagstiftning och ursprungsland
Produktdetaljer
Hitta liknande produkter genom att välja ett eller flera attribut.
Välj alla | Attribut | Värde |
|---|---|---|
| Brand | Nuvotem Talema | |
| Primary Voltage | 230 V | |
| Product Type | Toroidal Transformer | |
| Secondary Voltage | 2 x 6 V | |
| Number of Outputs | 2 | |
| Secondary Current | 4.167 A | |
| Weight | 0.74kg | |
| Power | 50VA | |
| Diameter | 80 mm | |
| Minimum Operating Frequency | 50Hz | |
| Winding Type | Dual Secondary | |
| Maximum Operating Frequency | 60Hz | |
| Maximum Operating Temperature | 180°C | |
| Termination Type | Lead | |
| Height | 41.7mm | |
| Standards/Approvals | EN60065, UL5 (File E15495), BS415, UL506, EN61558 (DEKRA Certificates 161054.01161054.0), VDE0550 | |
| Välj alla | ||
|---|---|---|
Brand Nuvotem Talema | ||
Primary Voltage 230 V | ||
Product Type Toroidal Transformer | ||
Secondary Voltage 2 x 6 V | ||
Number of Outputs 2 | ||
Secondary Current 4.167 A | ||
Weight 0.74kg | ||
Power 50VA | ||
Diameter 80 mm | ||
Minimum Operating Frequency 50Hz | ||
Winding Type Dual Secondary | ||
Maximum Operating Frequency 60Hz | ||
Maximum Operating Temperature 180°C | ||
Termination Type Lead | ||
Height 41.7mm | ||
Standards/Approvals EN60065, UL5 (File E15495), BS415, UL506, EN61558 (DEKRA Certificates 161054.01161054.0), VDE0550 | ||
Encapsulated with Leads 230Vac Primary Transformers
High quality encapsulated toroidal transformers with a single 230Vac 50/60Hz primary winding. Twin secondary windings may be connected in series or parallel or used independently. Designed for easy mounting with centre hole fixing.
Fixing bolt not included
Fully encapsulated to UL94-V0
Case material meets UL94-V0, Nylon 6.6
Small size and low weight compared with traditional stacked lamination types
Extremely low level of radiated magnetic field
Very low induced noise (hum)
Very low iron loss
Double insulated primary leads
Low surface temperature
100% electrical and flash tested
High quality manufacturing and testing in accordance to EN61558, EN60950, EN60065, VDE0551, VDE0550 and BS415
Toroidal Encapsulated 230Vac Primary 15VA to 500VA
Approvals
VDE 0551; VDE 0550
Standards
UL94-V0
