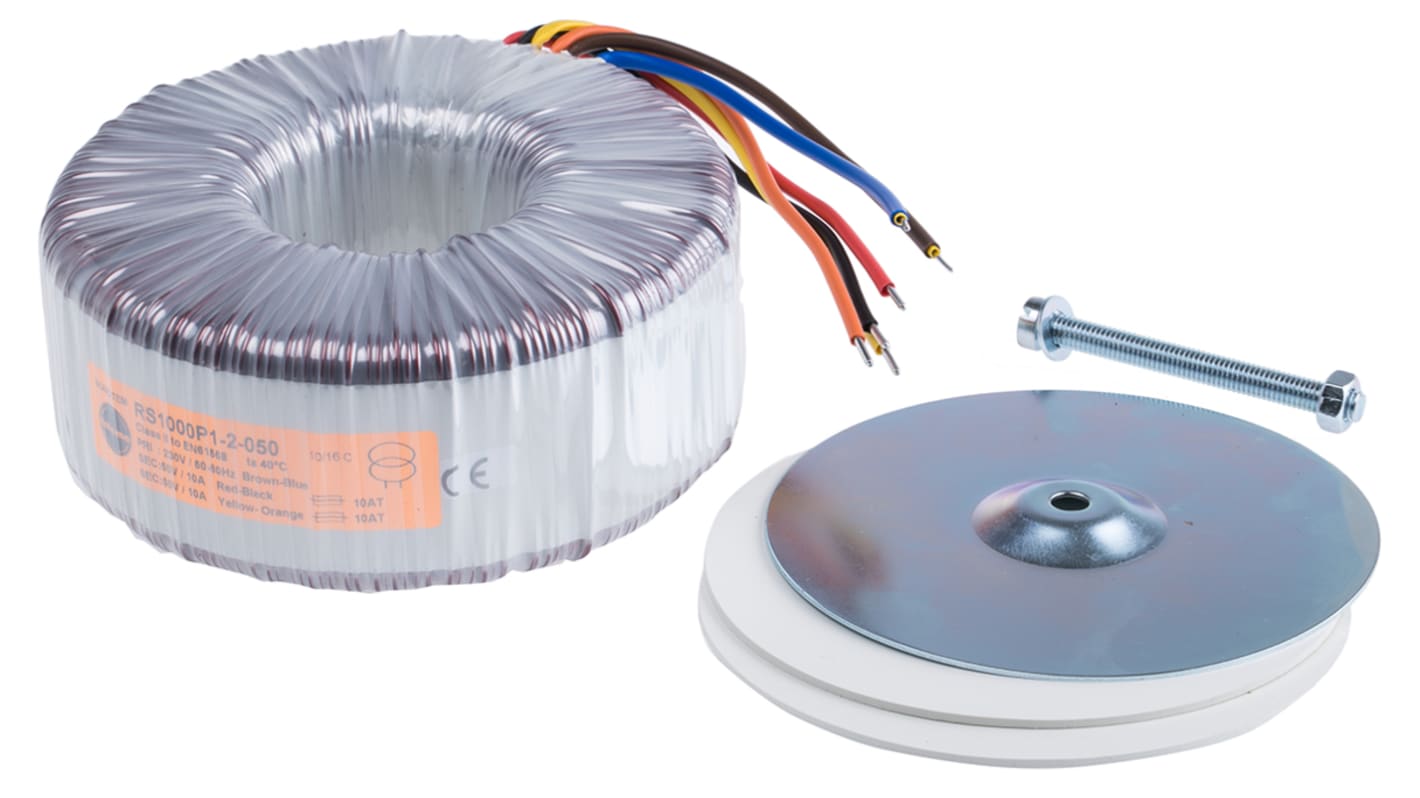

Nuvotem Talema 230 V ac 2 x 50 V ac Toroidal Transformer 2 Output 1000 VA, UL, VDE
- RS-artikelnummer:
- 223-8421
- Tillv. art.nr:
- 1000P1-2-050
- Tillverkare / varumärke:
- Nuvotem Talema
Mängdrabatt möjlig
Antal (1 enhet)*
3 687,82 kr
(exkl. moms)
4 609,78 kr
(inkl. moms)
Lägg till 1 enhet för att få fri frakt
I lager
- 1 enhet(er) är redo att levereras
- Dessutom levereras 18 enhet(er) från den 20 april 2026
Behöver du mer? Ange den kvantitet du behöver och klicka på "Kontrollera leveransdatum"
Enheter | Per enhet |
|---|---|
| 1 - 9 | 3 687,82 kr |
| 10 - 24 | 3 485,10 kr |
| 25 - 49 | 3 116,18 kr |
| 50 - 74 | 2 747,36 kr |
| 75 + | 2 378,77 kr |
*vägledande pris
- RS-artikelnummer:
- 223-8421
- Tillv. art.nr:
- 1000P1-2-050
- Tillverkare / varumärke:
- Nuvotem Talema
Specifikationer
Datablad
Lagstiftning och ursprungsland
Produktdetaljer
Hitta liknande produkter genom att välja ett eller flera attribut.
Välj alla | Attribut | Värde |
|---|---|---|
| Brand | Nuvotem Talema | |
| Primary Voltage | 230 V ac | |
| Product Type | Toroidal Transformer | |
| Secondary Voltage | 2 x 50 V ac | |
| Number of Outputs | 2 | |
| Secondary Current | 10 A | |
| Weight | 6.5kg | |
| Power | 1000VA | |
| Diameter | 162 mm | |
| Toroid Centre | Potted | |
| Minimum Operating Temperature | 0°C | |
| Winding Type | Dual Secondary | |
| Maximum Operating Frequency | 450Hz | |
| Maximum Operating Temperature | 120°C | |
| Termination Type | Copper Conductor Termination Wire | |
| Height | 70mm | |
| Standards/Approvals | UL, VDE | |
| Välj alla | ||
|---|---|---|
Brand Nuvotem Talema | ||
Primary Voltage 230 V ac | ||
Product Type Toroidal Transformer | ||
Secondary Voltage 2 x 50 V ac | ||
Number of Outputs 2 | ||
Secondary Current 10 A | ||
Weight 6.5kg | ||
Power 1000VA | ||
Diameter 162 mm | ||
Toroid Centre Potted | ||
Minimum Operating Temperature 0°C | ||
Winding Type Dual Secondary | ||
Maximum Operating Frequency 450Hz | ||
Maximum Operating Temperature 120°C | ||
Termination Type Copper Conductor Termination Wire | ||
Height 70mm | ||
Standards/Approvals UL, VDE | ||
Open Style with Leads, 15VA to 1000VA
High-quality open style toroidal transformers with a single 230 Vac 50/60 Hz primary winding. Twin secondary windings may be connected in series or parallel or used independently.
Small size and low weight compared with traditional stacked lamination types
Extremely low level of radiated magnetic field and very low induced noise (hum)
Very low iron losses
Double insulated primary leads
100% electrical and flash tested
High-quality manufacturing and testing in accordance to EN61558, EN60950, EN60065, VDE 0551, VDE 0550 and BS415
Approvals
UL 506; EN 61558
Warning
Under no circumstances should both ends of the fixing bolt simultaneously contact the metal chassis or framework as this would create a potentially dangerous 'shorted-turn'.
Standards
UL 506; EN 61558
Supplied with
Full mounting kit
