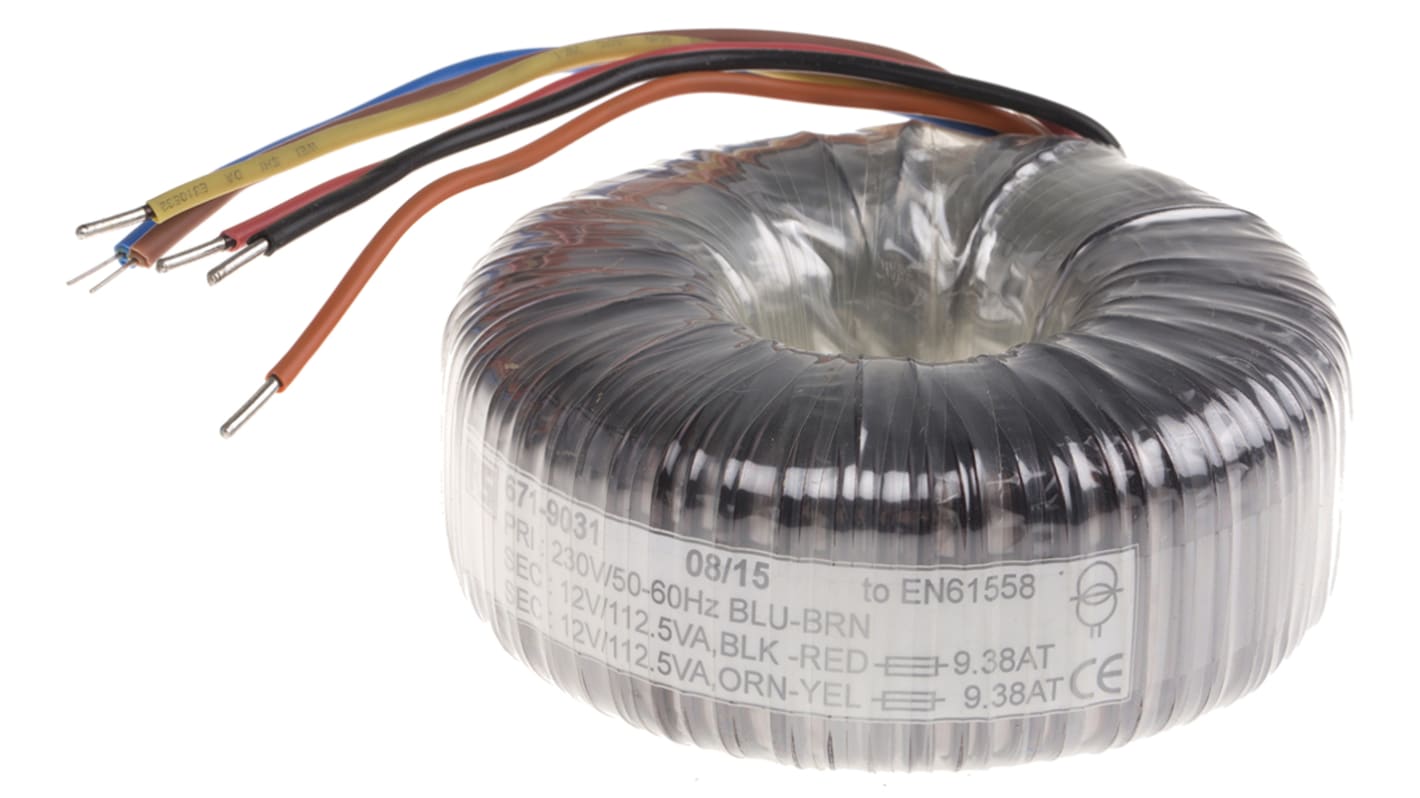

    RS PRO 230V ac, 2 x 12V ac Toroidal Transformer, 225VA 2 Output

    RS-artikelnummer:
    173-0245
    Tillverkare / varumärke:
    RS PRO
    RS PRO
    Se alla Toroidal Transformers
    66 I lager för avsändande samma dag
    Add to Basket
    Enheter

    Lagt till varukorgen

    Pris (ex. moms) Each (In a Box of 6)

    387,452 kr

    (exkl. moms)

    484,315 kr

    (inkl. moms)

    EnheterPer unitPer Box*
    6 - 24387,452 kr2 324,712 kr
    30 - 54364,22 kr2 185,32 kr
    60 +340,97 kr2 045,82 kr
    RS-artikelnummer:
    173-0245
    Tillverkare / varumärke:
    RS PRO
    COO (Country of Origin):
    IN

    Lagstiftning och ursprungsland

    COO (Country of Origin):
    IN

    Produktdetaljer

    Toroid open wound 230V primary


    High quality open style toroidal transformers with single 230Vac 50/60Hz primary winding. Twin secondary windings may be connected in series or parallel or used independently.


    Small size and low weight compared with traditional stacked lamination types
    Extremely low level of radiated magnetic field
    Very low induced noise (hum)
    Very low iron loss
    Double insulated primary leads


    Note

    Mounting hardware is not supplied, available seperately

    Warning

    Under no circumstances should both ends of the fixing bolt simultaneously contact the metal chassis or framework as this would create a potentially dangerous 'shorted-turn'.

    Approvals

    UL506, EN61558


    Toroidal 230Vac Primary 15VA to 1000VA


    Specifikationer

    AttributeValue
    Primary Voltage Rating230V ac
    Secondary Voltage Rating2 x 12V ac
    Power Rating225VA
    Number of Outputs2
    Secondary Current9.375A
    Height50mm
    Weight2.3kg
    Diameter120mm
    Dimensions120 (Dia.) x 50mm
    Minimum Operating Frequency50Hz
    Maximum Operating Frequency60Hz
    Termination TypeCopper Conductor
