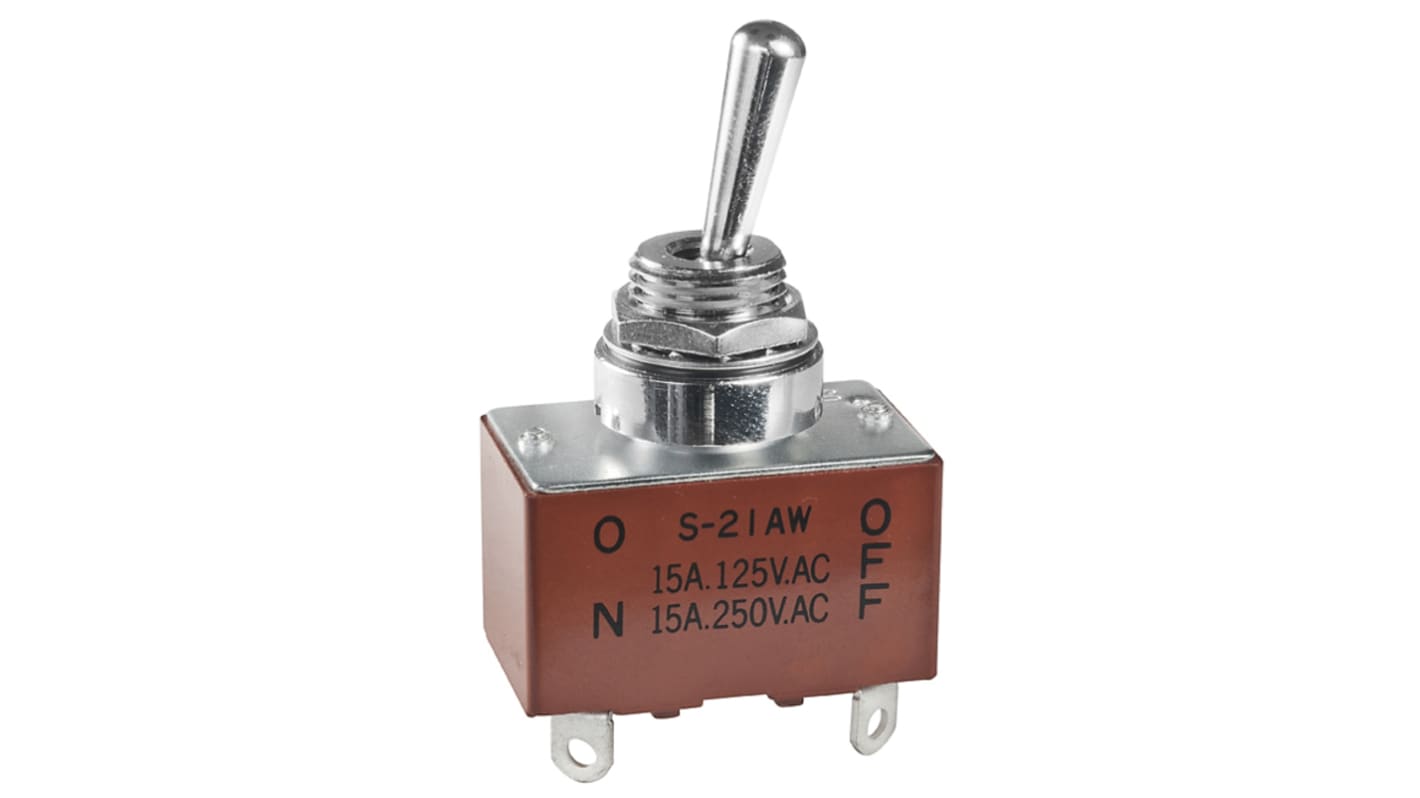

NKK Switches Toggle Switch, Panel Mount, On-Off, DPST, Solder Terminal, 250V ac
- RS-artikelnummer:
- 181-3643
- Distrelec artikelnummer:
- 301-14-228
- Tillv. art.nr:
- S21AW
- Tillverkare / varumärke:
- NKK Switches
Mängdrabatt möjlig
Price Varje**
154,18 kr
(exkl. moms)
192,72 kr
(inkl. moms)
12 I lager för avsändande samma dag*
* Leveransdatumen kan ändras beroende på vald kvantitet och leveransadress.
FRI frakt på alla onlineordrar över 500,00 kr
Finns det i lager?
Enheter | Per enhet |
|---|---|
| 1 - 4 | 154,18 kr |
| 5 - 49 | 139,18 kr |
| 50 + | 130,53 kr |
**vägledande pris
- RS-artikelnummer:
- 181-3643
- Distrelec artikelnummer:
- 301-14-228
- Tillv. art.nr:
- S21AW
- Tillverkare / varumärke:
- NKK Switches
Hitta liknande produkter genom att välja ett eller flera attribut.
Välj alla | Attribut | Värde |
|---|---|---|
| Brand | NKK Switches | |
| Contact Configuration | DPST | |
| Switch Operation | On-Off | |
| Contact Current Rating | 15 A | |
| Mounting Type | Panel Mount | |
| Terminal Type | Solder | |
| IP Rating | IP67 | |
| Illuminated | No | |
| Panel Cut Out Diameter | 12.5mm | |
| Actuator Length | 17.5mm | |
| Voltage Rating | 250V ac | |
| Contact Material | Silver Alloy (Movable & Stationary) | |
| Contact Resistance | 10mΩ | |
| Standards Met | CSA, UL | |
| Minimum Operating Temperature | -10°C | |
| Maximum Operating Temperature | +70°C | |
| Operating Temperature Range | -10 → +70°C | |
Välj alla | ||
|---|---|---|
Brand NKK Switches | ||
Contact Configuration DPST | ||
Switch Operation On-Off | ||
Contact Current Rating 15 A | ||
Mounting Type Panel Mount | ||
Terminal Type Solder | ||
IP Rating IP67 | ||
Illuminated No | ||
Panel Cut Out Diameter 12.5mm | ||
Actuator Length 17.5mm | ||
Voltage Rating 250V ac | ||
Contact Material Silver Alloy (Movable & Stationary) | ||
Contact Resistance 10mΩ | ||
Standards Met CSA, UL | ||
Minimum Operating Temperature -10°C | ||
Maximum Operating Temperature +70°C | ||
Operating Temperature Range -10 → +70°C | ||
