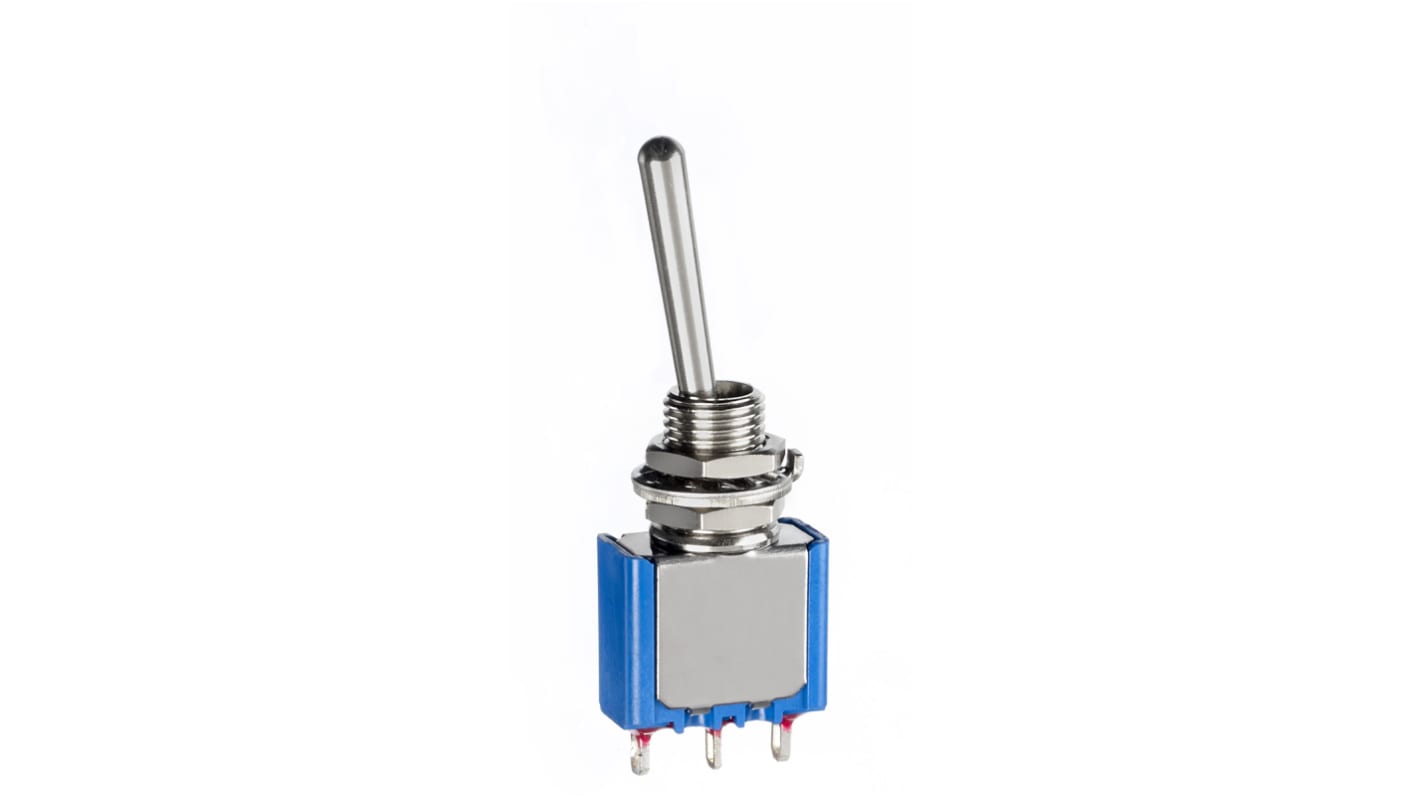

APEM Toggle Switch, Panel Mount, (On)-Off-(On), SPDT, Solder Lug Terminal, 30 V dc, 125V ac

RS-artikelnummer:: 165-1453
Tillv. art.nr:: 5637AB-2
Tillverkare / varumärke:: APEM

APEM Toggle Switch, Panel Mount, (On)-Off-(On), SPDT, Solder Lug Terminal, 30 V dc, 125V ac

Mängdrabatt möjlig

Antal (1 enhet)*

82,25 kr

(exkl. moms)

102,81 kr

(inkl. moms)

GRATIS leverans för online beställningar över 500,00 kr

I lager

69 enhet(er) är redo att levereras
Plus 14 enhet(er) är redo att levereras från en annan plats

Behöver du mer? Ange den kvantitet du behöver och klicka på "Kontrollera leveransdatum"

Enheter	Per enhet
1 - 24	82,25 kr
25 - 49	67,54 kr
50 - 99	61,82 kr
100 - 249	57,57 kr
250 +	52,64 kr

*vägledande pris

RS-artikelnummer:: 165-1453
Tillv. art.nr:: 5637AB-2
Tillverkare / varumärke:: APEM

Specifikationer

Datablad

Lagstiftning och ursprungsland

Produktdetaljer

Hitta liknande produkter genom att välja ett eller flera attribut.

Välj alla	Attribut	Värde
	Brand	APEM
	Contact Configuration	SPDT
	Switch Operation	(On)-Off-(On)
	Contact Current Rating	3 A @ 250 V ac, 4 A @ 30 V dc, 6 A @ 125 V ac
	Mounting Type	Panel Mount
	Terminal Type	Solder Lug
	Illuminated	No
	Panel Cut Out Diameter	6.5mm
	Actuator Length	17.8mm
	Actuator Material	Chrome Plated Brass
	Voltage Rating	30 V dc, 125 V ac, 250V ac
	Panel Cut Out Size	6.5 Dia.mm
	Contact Resistance	10mΩ
	Contact Material	Silver
	Standards Met	CECC 96201-007, CSA, cULus Recognised, UL Listed, VDE
	Operating Temperature Range	-40 → +85°C
	Minimum Operating Temperature	-40°C
	Maximum Operating Temperature	+85°C

	Välj alla
	Brand APEM
	Contact Configuration SPDT
	Switch Operation (On)-Off-(On)
	Contact Current Rating 3 A @ 250 V ac, 4 A @ 30 V dc, 6 A @ 125 V ac
	Mounting Type Panel Mount
	Terminal Type Solder Lug
	Illuminated No
	Panel Cut Out Diameter 6.5mm
	Actuator Length 17.8mm
	Actuator Material Chrome Plated Brass
	Voltage Rating 30 V dc, 125 V ac, 250V ac
	Panel Cut Out Size 6.5 Dia.mm
	Contact Resistance 10mΩ
	Contact Material Silver
	Standards Met CECC 96201-007, CSA, cULus Recognised, UL Listed, VDE
	Operating Temperature Range -40 → +85°C
	Minimum Operating Temperature -40°C
	Maximum Operating Temperature +85°C

COO (Country of Origin):: FR

The widest range in Miniature toggle Switches Diameter 6.35 mm Available in a wide model & amp options

17 actuators including toggles, paddle Levers and Locking levers in Different lengths
5 contact materials from dry circuits 6A 125VAC and high inrush up to 120A 2ms
8 functions including maintained and momentary versions
1 to 4 pole configurations
12 terminal types including 9 for PC board mounting others types include quick connect and wire-wrap
3 types of Finish including military black
4 types of sealing of terminal or front panel requirements
Numerous accessories available for actuator and bushing options
