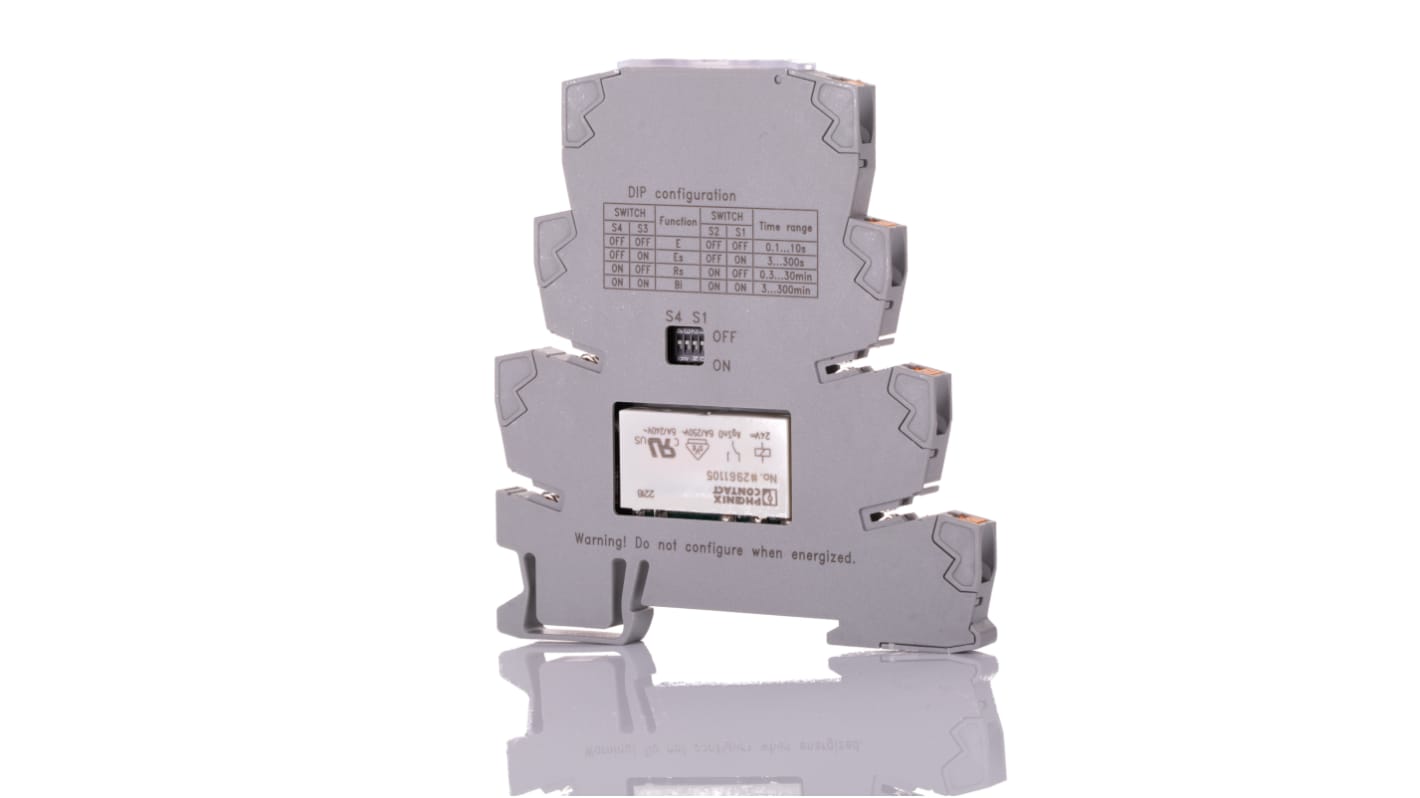

Phoenix Contact PLC-TR-1T-MUL-300M-PT Series DIN Rail Mount Timer Relay, 19.2 → 30V dc, 1-Contact, 0.1 s
- RS-artikelnummer:
- 189-2323
- Tillv. art.nr:
- 2910141
- Tillverkare / varumärke:
- Phoenix Contact
- RS-artikelnummer:
- 189-2323
- Tillv. art.nr:
- 2910141
- Tillverkare / varumärke:
- Phoenix Contact
Lagstiftning och ursprungsland
- COO (Country of Origin):
- DE
Produktdetaljer
Phoenix Contact Timer Relay, 0.45W Nominal Power Consumption, 50ms Recovery Time - PLC-TR-1T-MUL-300M-PT - 2910141
Looking for a way to energise and de-energise your electrical circuits at set intervals? Choose this timer relay from Phoenix Contact. It has four operating modes, including switch-on delay and release delay with a control contact function, so it saves space by eliminating the need for multiple relays. Polyamide housing provides reliable insulation to protect you from electric shocks while handling the unit.
This device consumes just 0.45W of power, making it an energy-efficient choice for your circuits. You can adjust its switching time between 0.1s and 300min, so it's a versatile solution to fit your design needs. Thanks to push-in terminals and a DIN rail mounting system, you don't need any tools to install this unit, saving time and effort. Timer relays like this are commonly found in industrial lighting systems.
This device consumes just 0.45W of power, making it an energy-efficient choice for your circuits. You can adjust its switching time between 0.1s and 300min, so it's a versatile solution to fit your design needs. Thanks to push-in terminals and a DIN rail mounting system, you don't need any tools to install this unit, saving time and effort. Timer relays like this are commonly found in industrial lighting systems.
Features & Benefits
IP20 rating indicates that it's touchproof and resistant to tools and objects larger than 12mm in size
Mechanical service life of 2 x 10^7 cycles for long-term performance
Integrated 6.3A fast-blow output fuse for short-circuit protection
Green and yellow LED indicators for quick monitoring of operating status
Mechanical service life of 2 x 10^7 cycles for long-term performance
Integrated 6.3A fast-blow output fuse for short-circuit protection
Green and yellow LED indicators for quick monitoring of operating status
Specifikationer
Attribute | Value |
---|---|
Supply Voltage | 19.2 → 30V dc |
Mounting Type | DIN Rail |
Time Range | 0.1 s → 300min |
Number of Contacts | 1 |
Number of Timer Functions | Multi Function |
Contact Configuration | SPDT |
Time Increment | Minutes, Seconds |
Maximum Current | 6A |
Maximum Voltage | 30V dc |
Terminal Type | Push In |
Switch Configuration | SPDT |
Width | 86mm |
Minimum Voltage | 19.2V dc |
Power Supply | External |
Length | 6.2mm |
Maximum Operating Temperature | +65°C |
Series | PLC-TR-1T-MUL-300M-PT |
Depth | 80mm |
Minimum Operating Temperature | -20°C |
