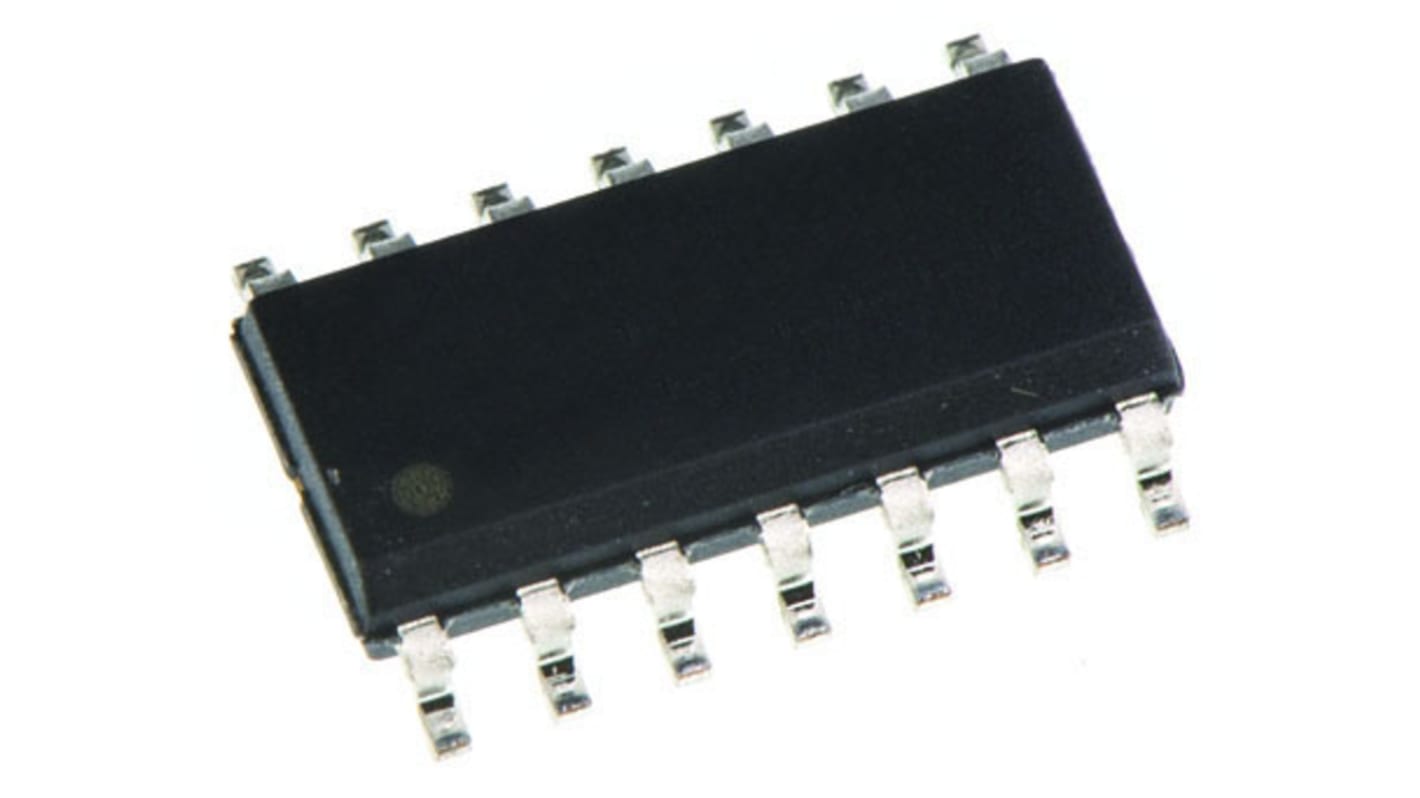

Texas Instruments TLC556ID, Timer Circuit Dual 2MHz, 3 → 18 V, 14-Pin SOIC


5 I lager för leverans inom 1 arbetsdagar
Add to Basket

Pris (ex. moms) Each (In a Pack of 5)

12,636 kr

(exkl. moms)

15,795 kr

(inkl. moms)

Enheter

Lagt till varukorgen

Förpackningsalternativ:
RS-artikelnummer:
662-4687
Tillv. art.nr:
TLC556ID
Tillverkare / varumärke:
Texas Instruments
EnheterPer unitPer Pack*
5 - 2012,636 kr63,18 kr
25 - 4510,588 kr52,94 kr
50 - 9510,072 kr50,36 kr
100 - 2458,50 kr42,50 kr
250 +8,066 kr40,33 kr
*price indicative

555 Timer, Texas Instruments


A range of highly stable precision timing circuits for the generation of accurate time delays or timing pulses. These timers can be operated in monostable (one-shot) or astable (oscillator) mode with timing periods ranging from less than a microsecond to several minutes. In addition to the original bipolar version, low-power CMOS and LinCMOS variants are also available. These devices are capable of longer timing periods and offering a significant reduction in power consumption. The range includes both single (551, 555) and dual (552, 556) versions of the timer.


Timers/Timing Generators

AttributeValue
Mounting TypeSurface Mount
Timer TypeStandard
Package TypeSOIC
Number of Internal Timers2
Pin Count14
Maximum Input Frequency2MHz
Minimum Operating Supply Voltage3 V
Maximum Operating Supply Voltage18 V
Minimum Operating Temperature-40 °C
Maximum Operating Temperature+85 °C
Maximum Low Level Output Current100mA
Maximum High Level Output Current-10mA
Dimensions8.65 x 3.91 x 1.58mm
Length8.65mm
Height1.58mm
Width3.91mm
