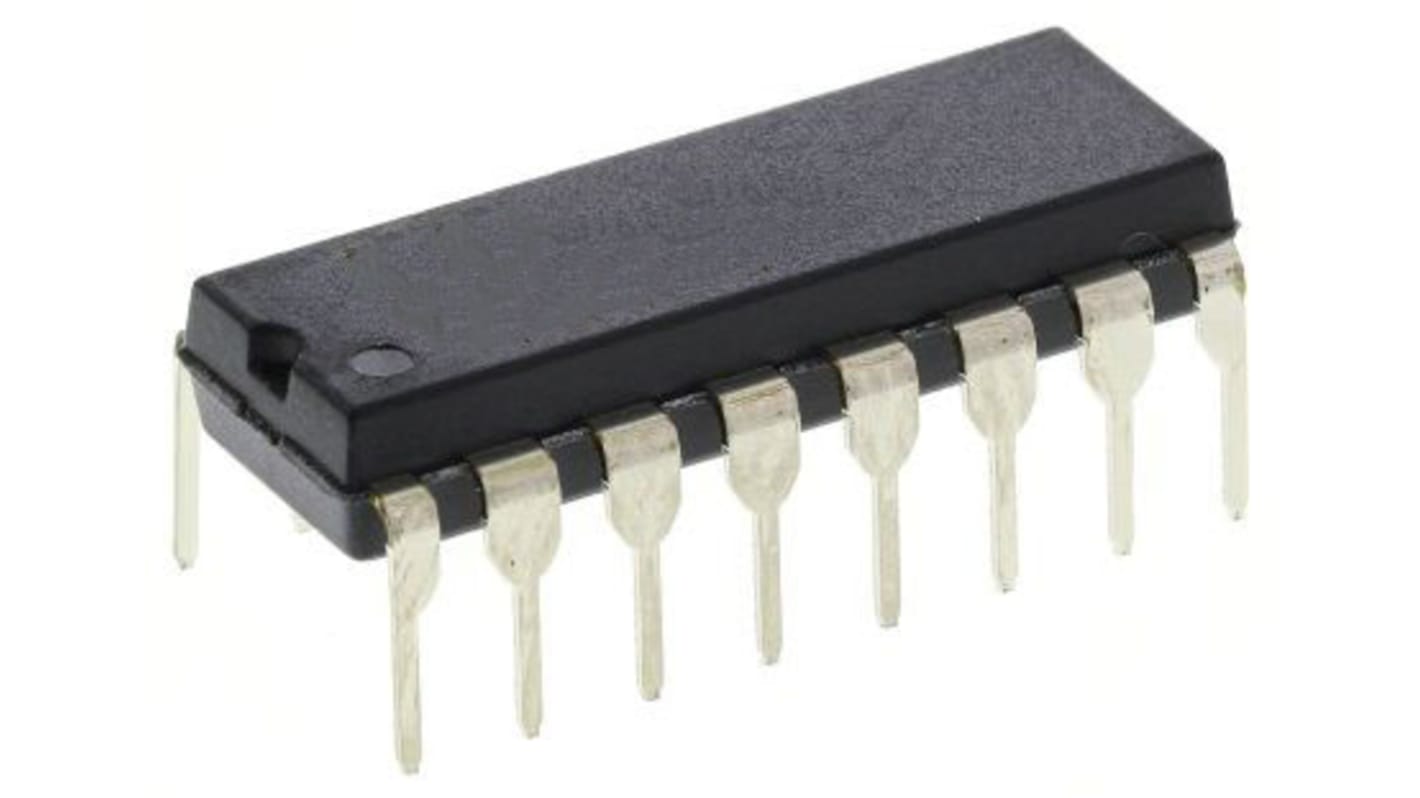

Maxim Integrated ICM7240IPE+, Timer Circuit, 16-Pin PDIP
- RS-artikelnummer:
- 190-4884
- Tillv. art.nr:
- ICM7240IPE+
- Tillverkare / varumärke:
- Maxim Integrated
Denna produkt har utgått
- RS-artikelnummer:
- 190-4884
- Tillv. art.nr:
- ICM7240IPE+
- Tillverkare / varumärke:
- Maxim Integrated
Datablad
Lagstiftning och ursprungsland
Produktdetaljer
Low Supply Current: 120μA
Timing from us to Days
Shutdown Current less than 10μA
Programmable Fixed Count
Cascadable for Long Range Timing
Monostable or Astable Operation
Low Power CMOS
Applications
ON/OFF Delay Timers
Batch Timer/Sequencers
Cycle Timers
Programmable Timers
Frequency Synthesizers
Ultra-Long Time Delay Generators
Timing from us to Days
Shutdown Current less than 10μA
Programmable Fixed Count
Cascadable for Long Range Timing
Monostable or Astable Operation
Low Power CMOS
Applications
ON/OFF Delay Timers
Batch Timer/Sequencers
Cycle Timers
Programmable Timers
Frequency Synthesizers
Ultra-Long Time Delay Generators
Specifikationer
Attribute | Value |
|---|---|
| Mounting Type | Through Hole |
| Timer Type | Fixed, Programmable |
| Package Type | PDIP |
| Number of Internal Timers | 1 |
| Pin Count | 16 |
| Minimum Operating Supply Voltage | 2 V |
| Maximum Operating Supply Voltage | 16 V |
| Minimum Operating Temperature | -20 °C |
| Maximum Operating Temperature | +85 °C |
| Length | 19.43mm |
| Width | 7.87mm |
| Dimensions | 19.43 x 7.87 x 4.45mm |
| Propagation Delay Test Condition | 10pF |
| Height | 4.45mm |
