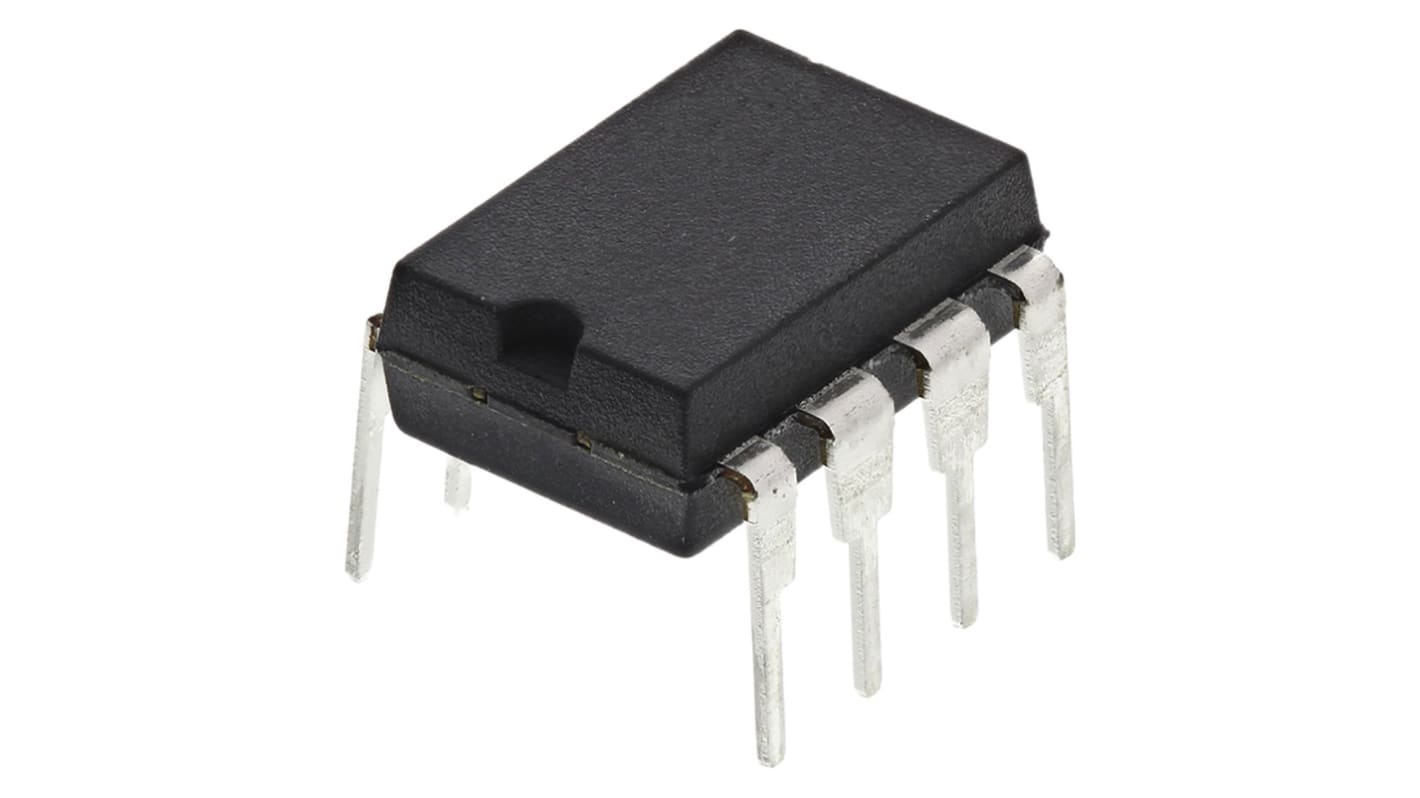

onsemi LM555CN, Timer, 8-Pin PDIP
- RS-artikelnummer:
- 169-8718
- Tillv. art.nr:
- LM555CN
- Tillverkare / varumärke:
- onsemi
Denna produkt har utgått
- RS-artikelnummer:
- 169-8718
- Tillv. art.nr:
- LM555CN
- Tillverkare / varumärke:
- onsemi
Datablad
Lagstiftning och ursprungsland
Produktdetaljer
555 Timer, Fairchild Semiconductor
Fairchild Semiconductor offers the 555 timer, a highly stable controller capable of producing accurate timing pulses. With monostable operation, you control the time delay by one external resistor and one capacitor. With a stable operation, the frequency and duty cycle are accurately controlled with two external resistors and one capacitor.
Timers/Timing Generators
Specifikationer
Attribute | Value |
|---|---|
| Mounting Type | Through Hole |
| Timer Type | Reset |
| Package Type | PDIP |
| Number of Internal Timers | 1 |
| Pin Count | 8 |
| Minimum Operating Supply Voltage | 4.5 V |
| Maximum Operating Supply Voltage | 16 V |
| Minimum Operating Temperature | 0 °C |
| Maximum Operating Temperature | +70 °C |
| Maximum Low Level Output Current | 50mA |
| Maximum High Level Output Current | 200mA |
| Height | 3.15mm |
| Width | 6.35mm |
| Length | 10.15mm |
| Dimensions | 10.15 x 6.35 x 3.15mm |
