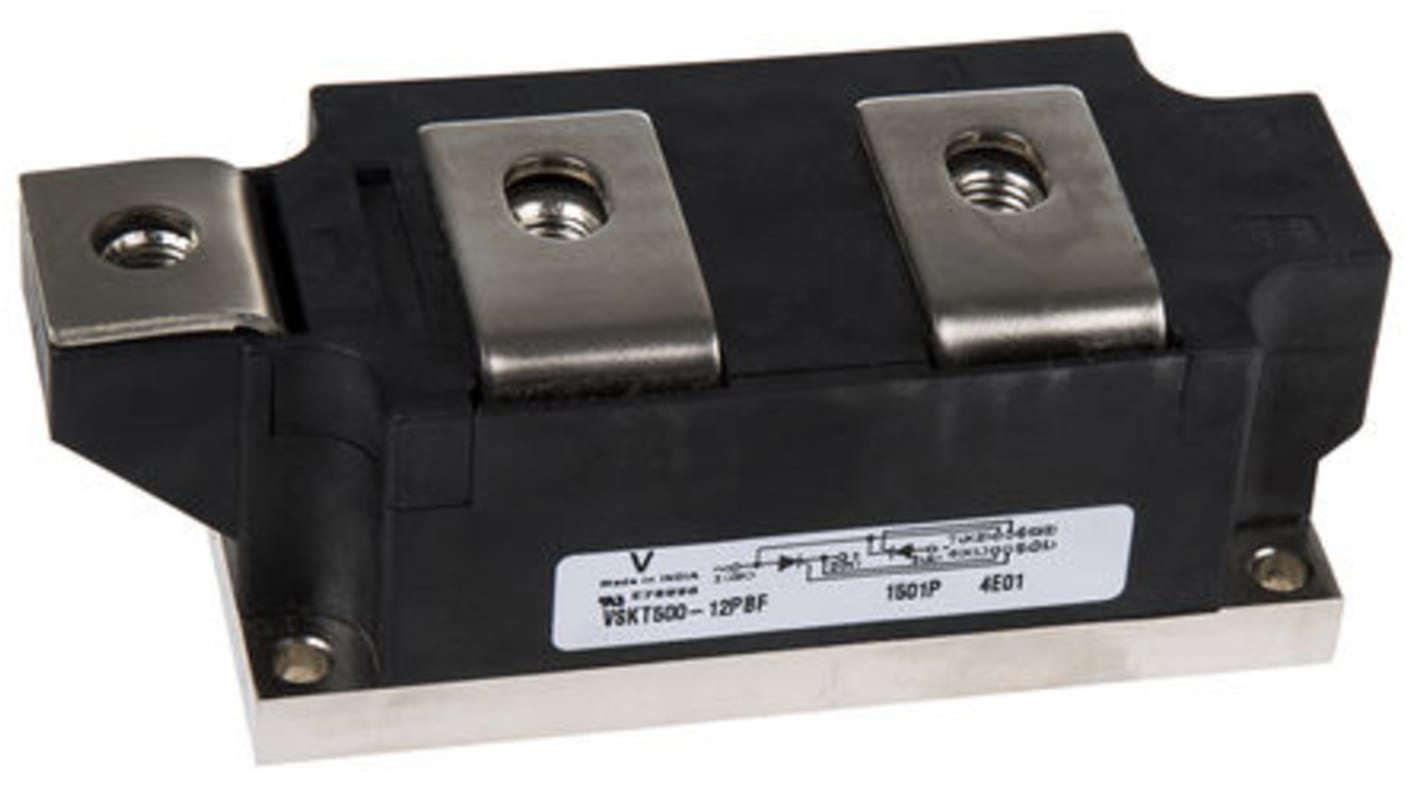

Vishay VS-VSKT500-16PbF, Thyristor 1600V, 500A 3A
- RS-artikelnummer:
- 903-3507
- Tillv. art.nr:
- VS-VSKT500-16PbF
- Tillverkare / varumärke:
- Vishay
Inte tillgänglig
RS kommer inte längre att lagerföra denna produkt.
- RS-artikelnummer:
- 903-3507
- Tillv. art.nr:
- VS-VSKT500-16PbF
- Tillverkare / varumärke:
- Vishay
Specifikationer
Datablad
Lagstiftning och ursprungsland
Produktdetaljer
Hitta liknande produkter genom att välja ett eller flera attribut.
Välj alla | Attribut | Värde |
|---|---|---|
| Brand | Vishay | |
| Rated Average On-State Current | 500A | |
| Thyristor Type | SCR | |
| Package Type | MAGN-A-PAK | |
| Repetitive Peak Reverse Voltage | 1600V | |
| Surge Current Rating | 18.7kA | |
| Mounting Type | Panel Mount | |
| Maximum Gate Trigger Current | 3A | |
| Maximum Gate Trigger Voltage | 20V | |
| Maximum Holding Current | 500mA | |
| Pin Count | 3 | |
| Dimensions | 150 x 60 x 52mm | |
| Peak On-State Voltage | 1.5V | |
| Minimum Operating Temperature | -40 °C | |
| Maximum Operating Temperature | +130 °C | |
| Repetitive Peak Off-State Current | 100mA | |
| Välj alla | ||
|---|---|---|
Brand Vishay | ||
Rated Average On-State Current 500A | ||
Thyristor Type SCR | ||
Package Type MAGN-A-PAK | ||
Repetitive Peak Reverse Voltage 1600V | ||
Surge Current Rating 18.7kA | ||
Mounting Type Panel Mount | ||
Maximum Gate Trigger Current 3A | ||
Maximum Gate Trigger Voltage 20V | ||
Maximum Holding Current 500mA | ||
Pin Count 3 | ||
Dimensions 150 x 60 x 52mm | ||
Peak On-State Voltage 1.5V | ||
Minimum Operating Temperature -40 °C | ||
Maximum Operating Temperature +130 °C | ||
Repetitive Peak Off-State Current 100mA | ||
- COO (Country of Origin):
- IN
Thyristor/Thyristor VS-VSKT Series, MAGN-A-PAK Modules, Vishay Semiconductor
Thyristor/Thyristor configuration
3500VRMS isolating voltage from the metal base
Industrial standard package MAGN-A-PAK
3500VRMS isolating voltage from the metal base
Industrial standard package MAGN-A-PAK
Approvals
UL approved file E78996
Thyristors - Vishay Semiconductor
A Thyristor is a solid-state semiconductor device with four layers of alternating N and P-type material. They act as bistable switches, conducting when their gate receives a current trigger, and continue to conduct while they are forward biased. Thyristors are synonymous to Silicon-Controlled Rectifier (SCR).
Encapsulated modules with electrically isolated base plate. Suitable for applications such as battery chargers, welders and plating equipment, regulated power supplies and temperature and speed control circuits.
Encapsulated modules with electrically isolated base plate. Suitable for applications such as battery chargers, welders and plating equipment, regulated power supplies and temperature and speed control circuits.
