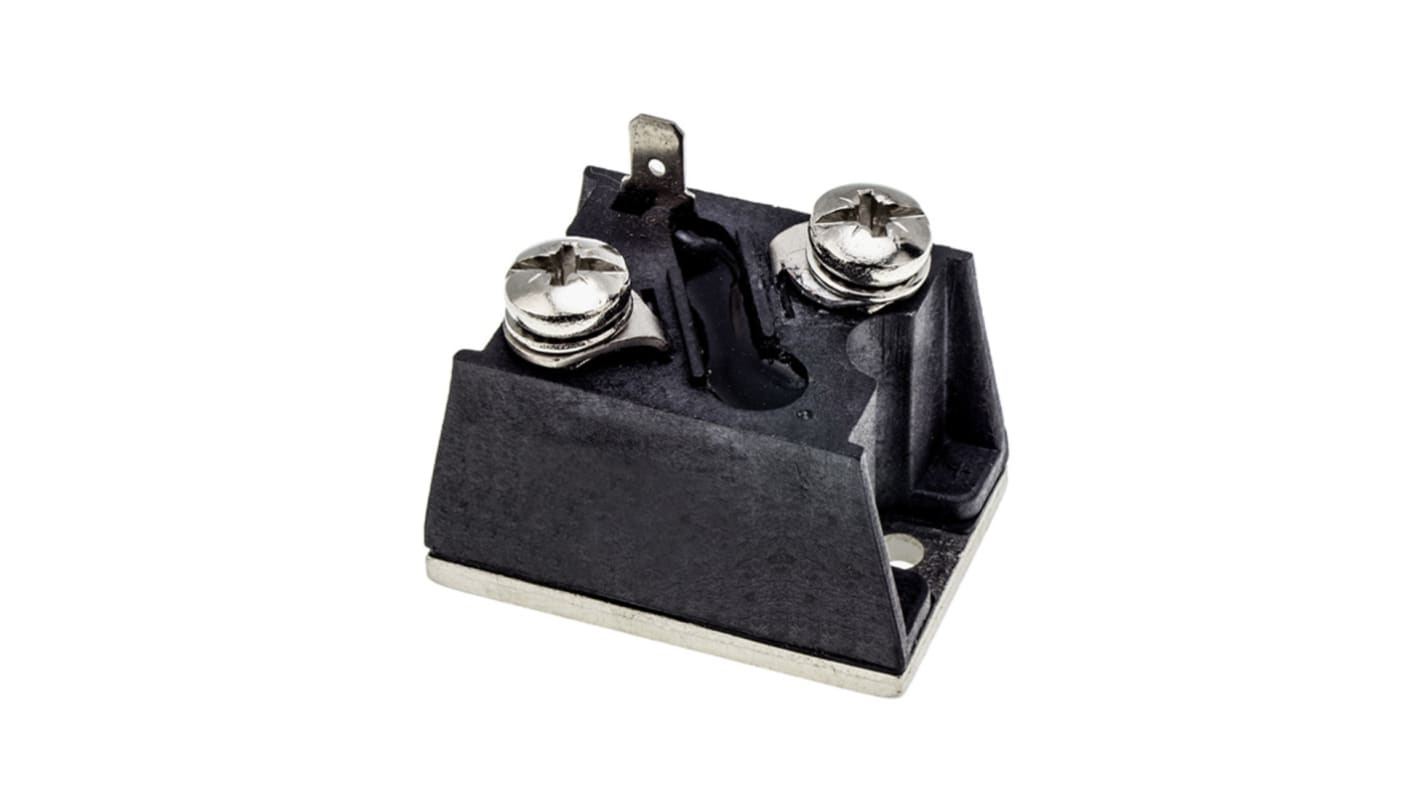

Vishay VS-T50RIA60, Thyristor 600V, 50A 100mA
- RS-artikelnummer:
- 395-9157
- Tillv. art.nr:
- VS-T50RIA60
- Tillverkare / varumärke:
- Vishay
Mängdrabatt möjlig
Antal (1 enhet)*
286,36 kr
(exkl. moms)
357,95 kr
(inkl. moms)
GRATIS leverans för online beställningar över 500,00 kr
I lager
- 24 enhet(er) är redo att levereras
- Dessutom levereras 201 enhet(er) från den 14 januari 2026
Behöver du mer? Ange den kvantitet du behöver och klicka på "Kontrollera leveransdatum"
Enheter | Per enhet |
|---|---|
| 1 - 9 | 286,36 kr |
| 10 - 49 | 280,62 kr |
| 50 - 99 | 272,02 kr |
| 100 - 249 | 263,42 kr |
| 250 + | 257,69 kr |
*vägledande pris
- RS-artikelnummer:
- 395-9157
- Tillv. art.nr:
- VS-T50RIA60
- Tillverkare / varumärke:
- Vishay
Specifikationer
Datablad
Lagstiftning och ursprungsland
Produktdetaljer
Hitta liknande produkter genom att välja ett eller flera attribut.
Välj alla | Attribut | Värde |
|---|---|---|
| Brand | Vishay | |
| Rated Average On-State Current | 50A | |
| Thyristor Type | SCR | |
| Package Type | D 55 | |
| Repetitive Peak Reverse Voltage | 600V | |
| Surge Current Rating | 1370A | |
| Mounting Type | Panel Mount | |
| Maximum Gate Trigger Current | 100mA | |
| Maximum Gate Trigger Voltage | 2.5V | |
| Maximum Holding Current | 200mA | |
| Pin Count | 3 | |
| Dimensions | 41 x 27 x 25mm | |
| Peak On-State Voltage | 1.6V | |
| Repetitive Peak Forward Blocking Voltage | 600V | |
| Minimum Operating Temperature | -40 °C | |
| Maximum Operating Temperature | +125 °C | |
| Repetitive Peak Off-State Current | 0.1mA | |
| Välj alla | ||
|---|---|---|
Brand Vishay | ||
Rated Average On-State Current 50A | ||
Thyristor Type SCR | ||
Package Type D 55 | ||
Repetitive Peak Reverse Voltage 600V | ||
Surge Current Rating 1370A | ||
Mounting Type Panel Mount | ||
Maximum Gate Trigger Current 100mA | ||
Maximum Gate Trigger Voltage 2.5V | ||
Maximum Holding Current 200mA | ||
Pin Count 3 | ||
Dimensions 41 x 27 x 25mm | ||
Peak On-State Voltage 1.6V | ||
Repetitive Peak Forward Blocking Voltage 600V | ||
Minimum Operating Temperature -40 °C | ||
Maximum Operating Temperature +125 °C | ||
Repetitive Peak Off-State Current 0.1mA | ||
Phase Control Thyristors T..RIA Series, T-Modules, Vishay Semiconductor
Single thyristor (SCR) power modules
3500VRMS isolating voltage from the metal base
3500VRMS isolating voltage from the metal base
Warning
These products contain Beryllium Oxide and MUST NOT be cut open or incinerated.
Approvals
UL E78996 approved
Thyristors - Vishay Semiconductor
A Thyristor is a solid-state semiconductor device with four layers of alternating N and P-type material. They act as bistable switches, conducting when their gate receives a current trigger, and continue to conduct while they are forward biased. Thyristors are synonymous to Silicon-Controlled Rectifier (SCR).
Encapsulated modules with electrically isolated base plate. Suitable for applications such as battery chargers, welders and plating equipment, regulated power supplies and temperature and speed control circuits.
Encapsulated modules with electrically isolated base plate. Suitable for applications such as battery chargers, welders and plating equipment, regulated power supplies and temperature and speed control circuits.
