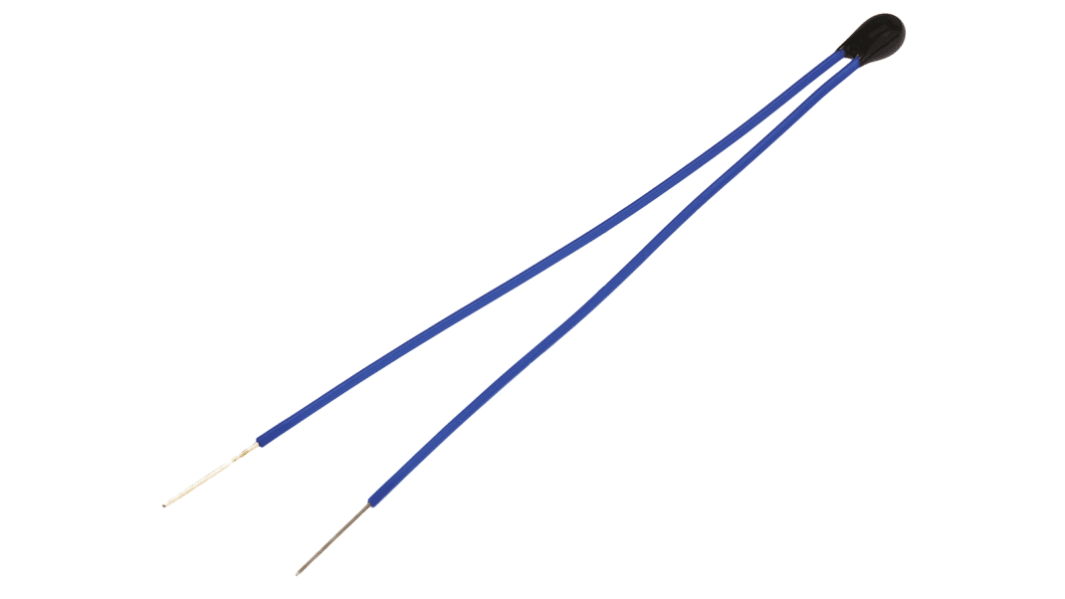

EPCOS Thermistor, 10kΩ Resistance, NTC Type, 2.41 x 6.5mm
- RS-artikelnummer:
- 167-8226
- Tillv. art.nr:
- B57861S0103J040
- Tillverkare / varumärke:
- EPCOS
Se alla Thermistor ICs
Det är tyvärr inte möjligt att visa lagerbehållning för närvarande. Uppdatera sidan och försök igen.
Pris (ex. moms) Each (In a Box of 1000)
9,926 kr
(exkl. moms)
12,408 kr
(inkl. moms)
| Enheter | Per unit | Per Box* |
| 1000 + | 9,926 kr | 9 926,00 kr |
- RS-artikelnummer:
- 167-8226
- Tillv. art.nr:
- B57861S0103J040
- Tillverkare / varumärke:
- EPCOS
Lagstiftning och ursprungsland
Produktdetaljer
Epcos Miniature Sensor S861 Series
From Epcos, this S861 Series of miniature encapsulated NTC bead thermistors and feature high measuring accuracy and a fast thermal response. The S861 series thermistors are for temperature sensing and measurement applications.
Features and Benefits:
• Resistance tolerance ±5% J40 type, ±1% F40 type
• Fast thermal response
• High measuring accuracy
• Epoxy resin encapsulation
• PTFE insulated silver-plated nickel wire leads
• Maximum power dissipation: 60mW @ 25°C
• Dissipation Factor (In Air): 1.5 mW/C (Approx.)
• Thermal time constant (In Air): 15 seconds (Approx.)
• Body Size: 2.41Ø x x 6.5mm
• Resistance tolerance ±5% J40 type, ±1% F40 type
• Fast thermal response
• High measuring accuracy
• Epoxy resin encapsulation
• PTFE insulated silver-plated nickel wire leads
• Maximum power dissipation: 60mW @ 25°C
• Dissipation Factor (In Air): 1.5 mW/C (Approx.)
• Thermal time constant (In Air): 15 seconds (Approx.)
• Body Size: 2.41Ø x x 6.5mm
Note
Beta values shown are for the temperature range 25-100°C
Specifikationer
| Attribute | Value |
| Series | B57861S |
| Temperature Coefficient Type | NTC |
| Thermal Coefficient | 4.4%/°C |
| Thermal Time Constant | 15s |
| Resistance @ 25 °C | 10kΩ |
| Tolerance | ±5% |
| Maximum Power Rating | 60mW |
| Depth | 2.41mm |
| Height | 6.5mm |
| Minimum Operating Temperature | -55°C |
| Dimensions | 2.41 x 6.5mm |
| Maximum Operating Temperature | +155°C |
