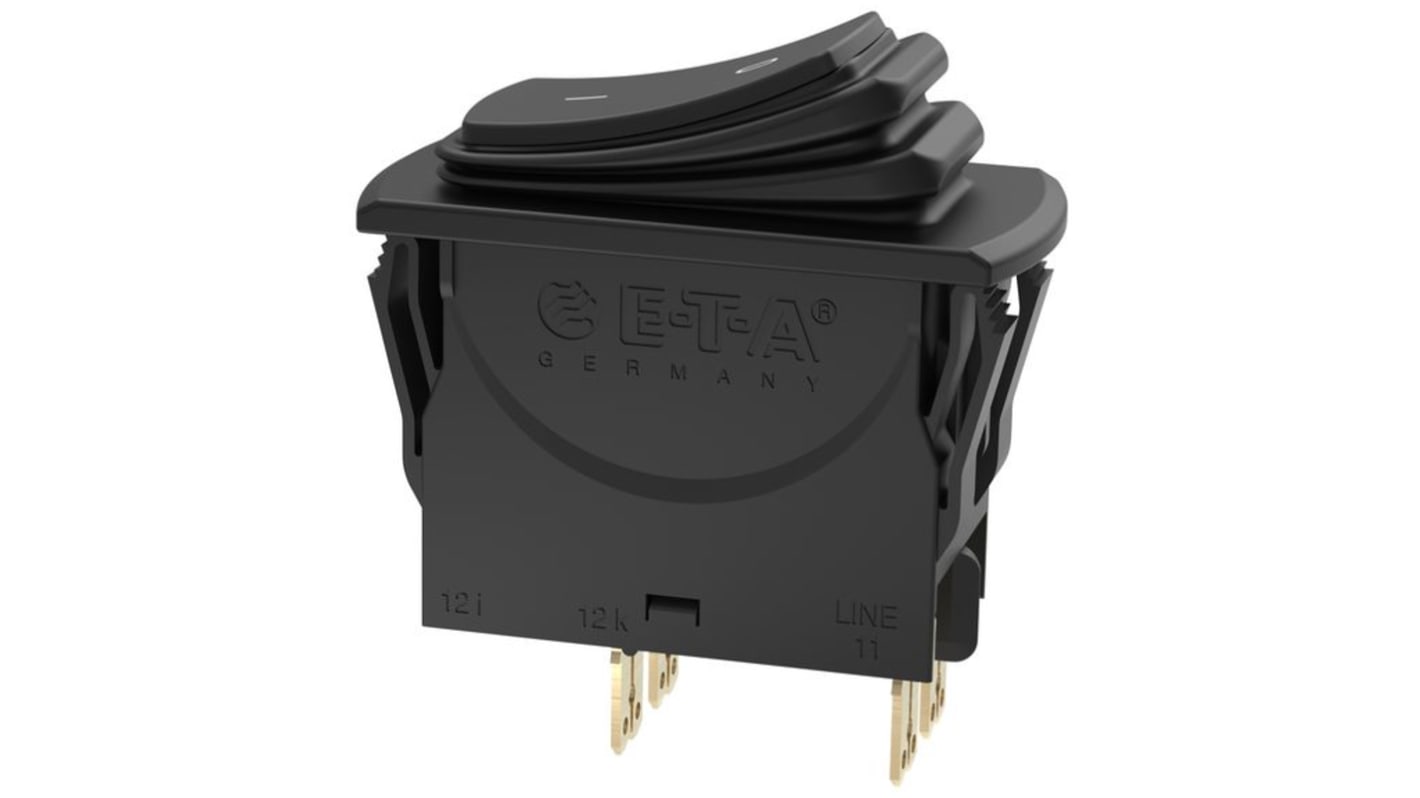

ETA Thermal Circuit Breaker - 3120 2 Pole 50 V ac/dc, 240 V ac/dc Voltage Rating Snap In, 20A Current Rating

The thermal circuit breaker/switch combination that provides overcurrent protection and the functionality of an ON/OFF switch in a single component. It features a thermal bimetal trip element and is ideal for overload protection in applications such as motors, pumps, transformers, and cables. The trip-free mechanism ensures reliable disconnection of the circuit even when the actuator is blocked. With voltage ratings of AC 240V and DC 50V, this circuit breaker is perfectly matched with the loads, preventing nuisance tripping. It has a current rating range of 0.1A to 20A, with an optional range of up to 30A. The compact design of this circuit breaker saves space and reduces mounting and wiring time, making it a reliable choice for various applications.

Single or double pole thermal circuit breaker/switch combination
Maximum equipment availability is ensured by overload protection
Voltage ratings of AC 240V and DC 50V perfectly matched with the loads and prevent nuisance tripping
Current rating range from 0.1A to 20A (up to 30A upon request)
Reduced mounting and wiring time
Optional push-in terminals for easy and quick wiring
Space-saving design
Increased overall reliability
Quick and easy reset after tripping
