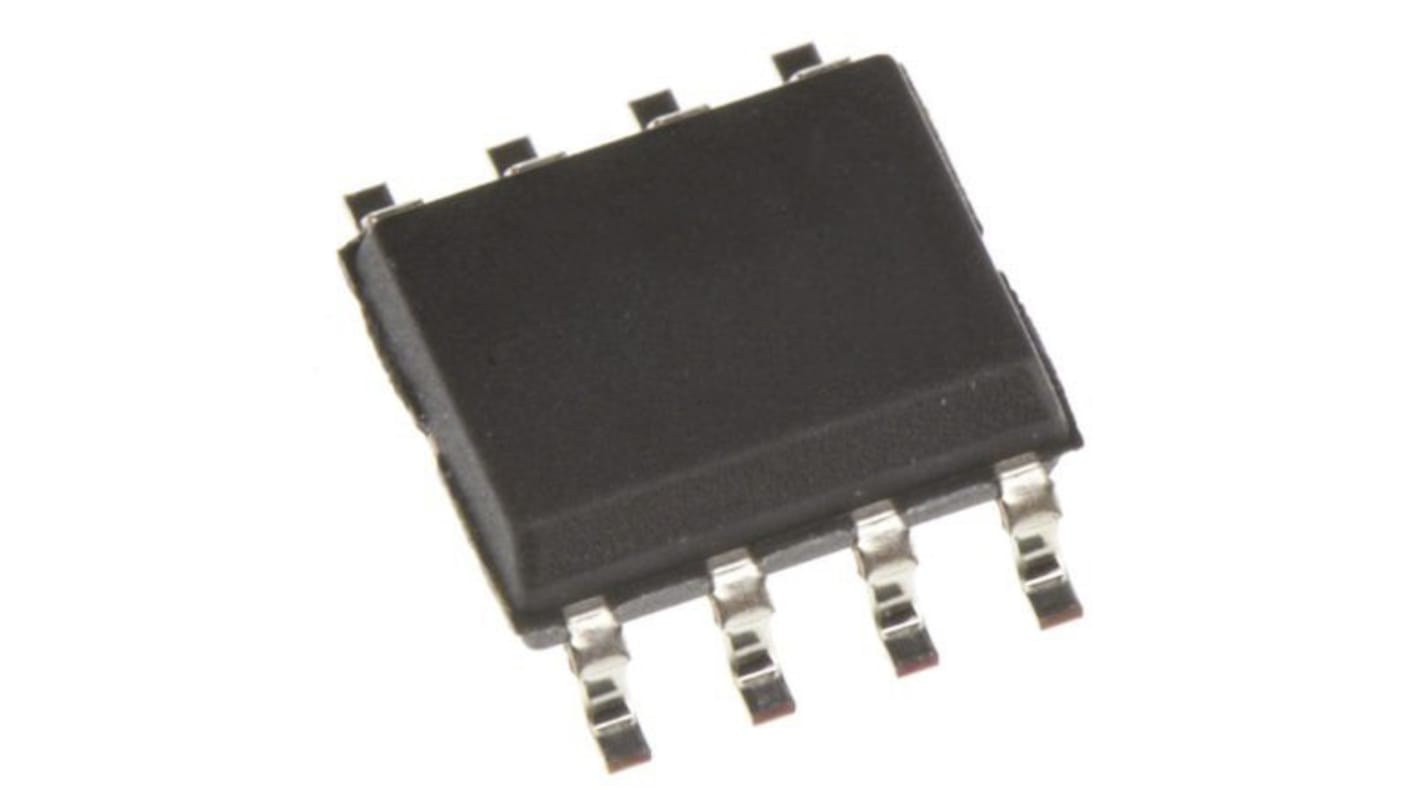

Maxim Integrated Temperature Sensor, Open Drain Output, Surface Mount, Serial-I2C, SMBus, ±2.5°C, 8 Pins
- RS-artikelnummer:
- 190-4812
- Tillv. art.nr:
- MAX6635MSA+
- Tillverkare / varumärke:
- Maxim Integrated
Se kategorien
200 I lager för avsändande samma dag
Pris (ex. moms) Each (In a Tube of 100)
25,211 kr
(exkl. moms)
31,514 kr
(inkl. moms)
Enheter | Per unit | Per Tube* |
100 - 400 | 25,211 kr | 2 521,10 kr |
500 - 900 | 22,566 kr | 2 256,60 kr |
1000 + | 22,003 kr | 2 200,30 kr |
- RS-artikelnummer:
- 190-4812
- Tillv. art.nr:
- MAX6635MSA+
- Tillverkare / varumärke:
- Maxim Integrated
Datablad
Lagstiftning och ursprungsland
Produktdetaljer
+3V to +5.5V Supply Range
Accuracy
±1°C max (0°C to +50°C)
±1.5°C max (-20°C to +85°C)
±2.5°C max (-40°C to +125°C)
±2.5°C typ (+150°C)
User-Programmable Temperature Thresholds (MAX6634/MAX6635)
User-Configurable Alarm Output(s) (MAX6634/MAX6635)
Ability to Respond to SMBus/I²C-Compatible Alert Response Address (MAX6634/MAX6635)
Active-Low OVERT Output for System Shutdown (MAX6635)
Multiple Devices per Bus
16 devices (MAX6633)
8 devices (MAX6634)
4 devices (MAX6635)
Applications
Battery-Temperature Alarms
PC Temperature Control
Accuracy
±1°C max (0°C to +50°C)
±1.5°C max (-20°C to +85°C)
±2.5°C max (-40°C to +125°C)
±2.5°C typ (+150°C)
User-Programmable Temperature Thresholds (MAX6634/MAX6635)
User-Configurable Alarm Output(s) (MAX6634/MAX6635)
Ability to Respond to SMBus/I²C-Compatible Alert Response Address (MAX6634/MAX6635)
Active-Low OVERT Output for System Shutdown (MAX6635)
Multiple Devices per Bus
16 devices (MAX6633)
8 devices (MAX6634)
4 devices (MAX6635)
Applications
Battery-Temperature Alarms
PC Temperature Control
Specifikationer
Attribute | Value |
Sensor Function | Temperature |
Output Type | Open Drain |
Interface Type | Serial-I2C, SMBus |
Accuracy | ±2.5°C |
Mounting Type | Surface Mount |
Pin Count | 8 |
Operating Temperature Range | -55 to +150 °C |
Minimum Operating Temperature | -55 °C |
Maximum Operating Temperature | +150 °C |
Minimum Operating Supply Voltage | 3 V |
Maximum Operating Supply Voltage | 5.5 V |
Package Type | SO |
Length | 5mm |
Height | 1.5mm |
Width | 4mm |
Dimensions | 5 x 4 x 1.5mm |
Resolution | 0.0625 °C |
