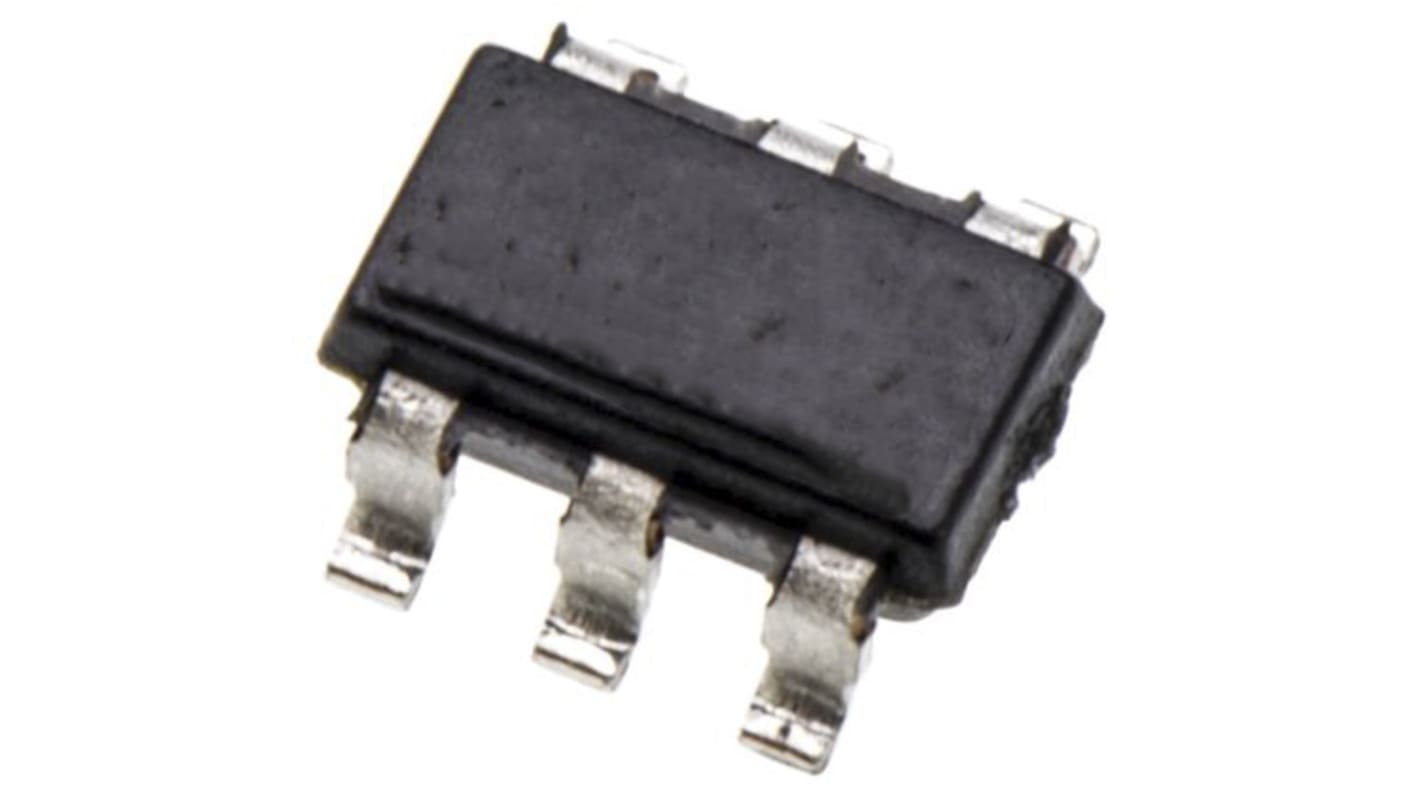

Maxim Integrated Temperature Sensor, Period/Frequency Output, Surface Mount, Serial-1 Wire, ±5°C, 6 Pins

RS-artikelnummer:: 190-4806
Tillv. art.nr:: MAX6577ZUT+T
Tillverkare / varumärke:: Maxim Integrated

Maxim Integrated Temperature Sensor, Period/Frequency Output, Surface Mount, Serial-1 Wire, ±5°C, 6 Pins

Det är tyvärr inte möjligt att visa lagerbehållning för närvarande. Uppdatera sidan och försök igen.

Lagt till varukorgen

Pris (ex. moms) Each (On a Reel of 2500)

13,763 kr

(exkl. moms)

17,204 kr

(inkl. moms)

Enheter	Per unit	Per Reel*
2500 +	13,763 kr	34 407,50 kr

RS-artikelnummer:: 190-4806
Tillv. art.nr:: MAX6577ZUT+T
Tillverkare / varumärke:: Maxim Integrated

Datablad

MAX6577ZUT+T - Datasheet

Lagstiftning och ursprungsland

Produktdetaljer

Simple Single-Wire Output
Two Output Types Available
Temperature to Period (μs) (MAX6576)
Temperature to Frequency (Hz) (MAX6577)
±0.8°C Accuracy at +25°C (±3°C max)
No External Components
Operates from +2.7V to +5.5V Supply Voltage
Low 140μA Typical Supply Current
Standard Operating Temperature Range: -40°C to +125°C
Small 6-Pin SOT23 Package
Applications
Battery Packs
Cell Phones
Critical μP and μC Temperature Monitoring
Hard Drives/Tape Drives
Medical Equipment
Networking and Telecom Equipment
Portable Battery-Powered Equipment

Specifikationer

Attribute	Value
Sensor Function	Temperature
Output Type	Period/Frequency
Interface Type	Serial-1 Wire
Accuracy	±5°C
Mounting Type	Surface Mount
Pin Count	6
Minimum Operating Temperature	-40 °C
Operating Temperature Range	-40 to +125 °C
Maximum Operating Temperature	+125 °C
Minimum Operating Supply Voltage	2.7 V
Maximum Operating Supply Voltage	5.5 V
Package Type	SOT-23
Length	3mm
Height	1.3mm
Width	1.75mm
Dimensions	3 x 1.75 x 1.3mm
