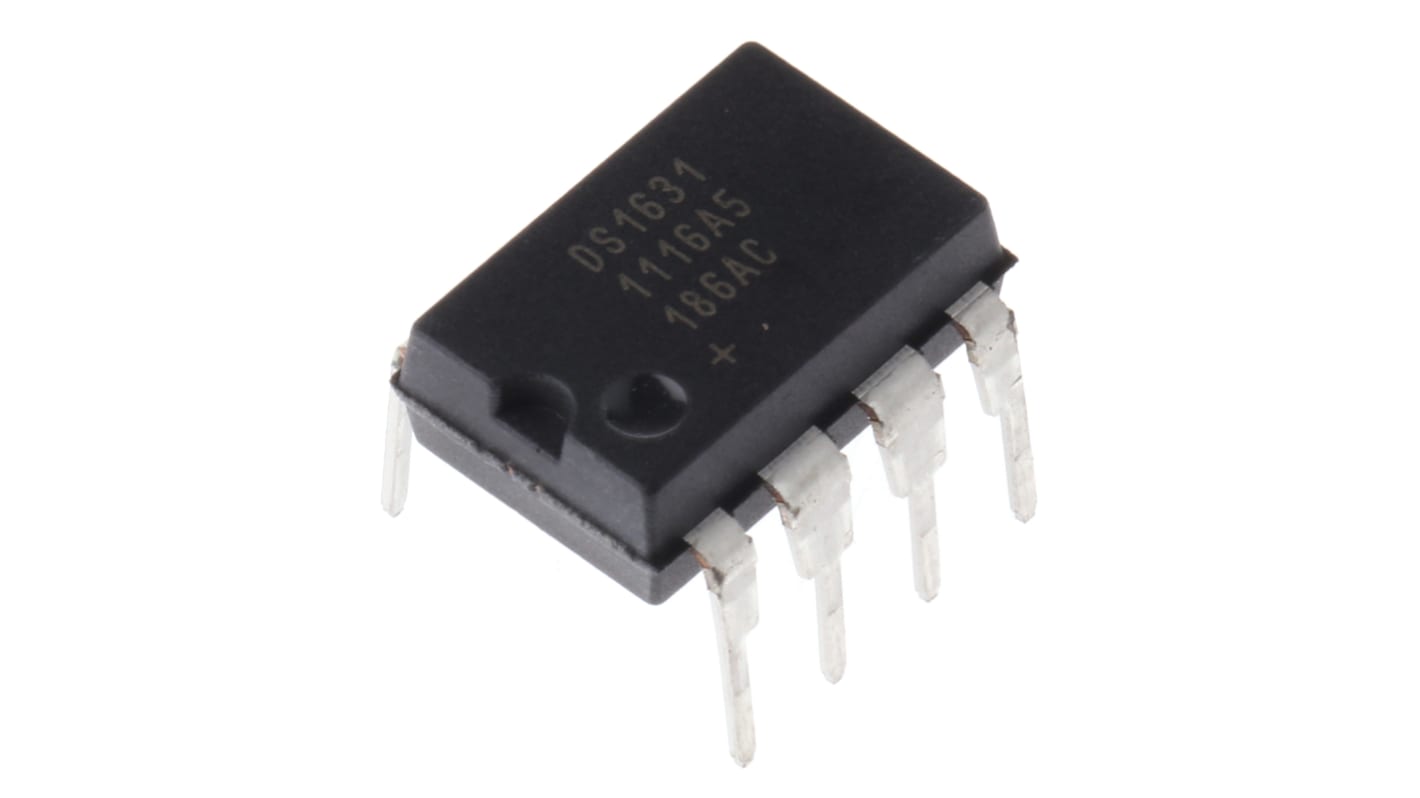

Maxim Integrated Temperature Sensor, Push-Pull Output, Through Hole Mount, Serial-I2C, SMBus, ±0.5°C, 8 Pins
- RS-artikelnummer:
- 190-1483P
- Tillv. art.nr:
- DS1631+
- Tillverkare / varumärke:
- Maxim Integrated
Mängdrabatt möjlig
Antal 10 enheter (levereras i ett rör)*
617,12 kr
(exkl. moms)
771,40 kr
(inkl. moms)
GRATIS leverans för online beställningar över 500,00 kr
Sista RS lager
- Slutlig(a) 160 enhet(er), redo att levereras
Enheter | Per enhet |
|---|---|
| 10 - 20 | 61,712 kr |
| 25 - 95 | 58,778 kr |
| 100 - 495 | 50,982 kr |
| 500 + | 48,518 kr |
*vägledande pris
- RS-artikelnummer:
- 190-1483P
- Tillv. art.nr:
- DS1631+
- Tillverkare / varumärke:
- Maxim Integrated
Specifikationer
Datablad
Lagstiftning och ursprungsland
Produktdetaljer
Hitta liknande produkter genom att välja ett eller flera attribut.
Välj alla | Attribut | Värde |
|---|---|---|
| Brand | Maxim Integrated | |
| Sensor Function | Temperature | |
| Output Type | Push-Pull Output | |
| Interface Type | Serial-I2C, SMBus | |
| Accuracy | ±0.5°C | |
| Mounting Type | Through Hole | |
| Pin Count | 8 | |
| Minimum Operating Temperature | -55 °C | |
| Operating Temperature Range | -55 to +125 °C | |
| Maximum Operating Temperature | +125 °C | |
| Minimum Operating Supply Voltage | 2.7 V | |
| Maximum Operating Supply Voltage | 5.5 V | |
| Package Type | PDIP | |
| Length | 9.91mm | |
| Height | 4.45mm | |
| Width | 7.87mm | |
| Dimensions | 9.91 x 7.87 x 4.45mm | |
| Välj alla | ||
|---|---|---|
Brand Maxim Integrated | ||
Sensor Function Temperature | ||
Output Type Push-Pull Output | ||
Interface Type Serial-I2C, SMBus | ||
Accuracy ±0.5°C | ||
Mounting Type Through Hole | ||
Pin Count 8 | ||
Minimum Operating Temperature -55 °C | ||
Operating Temperature Range -55 to +125 °C | ||
Maximum Operating Temperature +125 °C | ||
Minimum Operating Supply Voltage 2.7 V | ||
Maximum Operating Supply Voltage 5.5 V | ||
Package Type PDIP | ||
Length 9.91mm | ||
Height 4.45mm | ||
Width 7.87mm | ||
Dimensions 9.91 x 7.87 x 4.45mm | ||
DS1631/1731 Digital Thermometer & Thermostat
The DS1631/1731 are temperature-to-digital converters with over/under-temperature detection. Applications include PCs, mobile phones, office equipment and data loggers.
Measurement temperature range: -55 to +125°C
Accuracy: ±0.5°C from 0 to +70°C (DS1631), ±1°C from -10 to +85°C (DS1731)
Programmable resolution from 9 to 12 bits
Conversion Time (Max): 93.75ms (9-bit), 750ms (12-bit)
DS1631A will function as a stand-alone thermostat
Configuration settings saved in EEPROM prior to installation
Communication: Serial I²C bus for up to 8 devices
Power supply: +2.7V to +5.5Vdc
Accuracy: ±0.5°C from 0 to +70°C (DS1631), ±1°C from -10 to +85°C (DS1731)
Programmable resolution from 9 to 12 bits
Conversion Time (Max): 93.75ms (9-bit), 750ms (12-bit)
DS1631A will function as a stand-alone thermostat
Configuration settings saved in EEPROM prior to installation
Communication: Serial I²C bus for up to 8 devices
Power supply: +2.7V to +5.5Vdc
Note
Please note that any defect or non – conformance of this product must be discovered and reported to RS within 20 days of purchase.
Temperature & Humidity Sensors, Maxim Integrated
