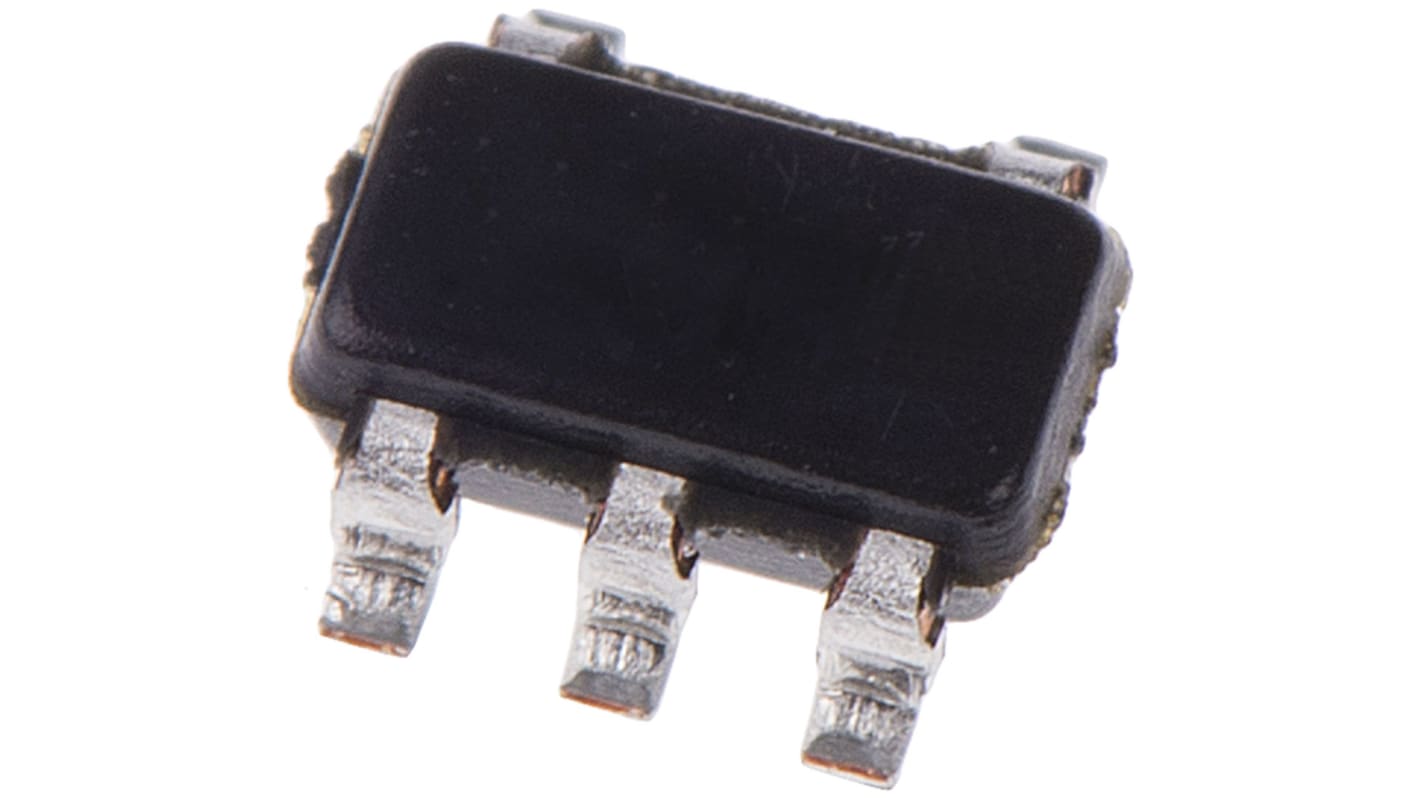

Texas Instruments Analog Temperature Sensor, Open Drain Output, Surface Mount, ±4°C, 5 Pins

Se kategorien
Inte tillgänglig
RS kommer inte längre att lagerföra denna produkt.
RS-artikelnummer:
162-4197
Tillv. art.nr:
LM26CIM5-HHD/NOPB
Tillverkare / varumärke:
Texas Instruments
Hitta liknande produkter genom att välja ett eller flera attribut.
Välj alla

Brand

Texas Instruments

Sensor Function

Temperature

Output Type

Open Drain

Accuracy

±4°C

Mounting Type

Surface Mount

Pin Count

5

Operating Temperature Range

-55 to +125 °C

Minimum Operating Temperature

-55 °C

Maximum Operating Temperature

+125 °C

Minimum Operating Supply Voltage

2.7 V

Maximum Operating Supply Voltage

5.5 V

Package Type

SOT-23

Length

2.92mm

Height

1.02mm

Width

1.6mm

Sensor Gain

-10.82mV/°C

Dimensions

2.92 x 1.6 x 1.02mm

LM26/27 Single Output Thermostats


The LM26/27 series of single output thermostats are composed of an internal reference, DAC, temperature sensor and comparator. In addition to the single digital output, the thermostats also have an analogue output and a digital input.
Applications include thermal management within microprocessing, remote temperature sensing, protection within electronic systems, fan control, HVAC, industrial process control and portable battery powered systems.


Features;
Internal temperature sensor
Excellent noise rejection
Internal voltage reference and DAC for trip-point setting
