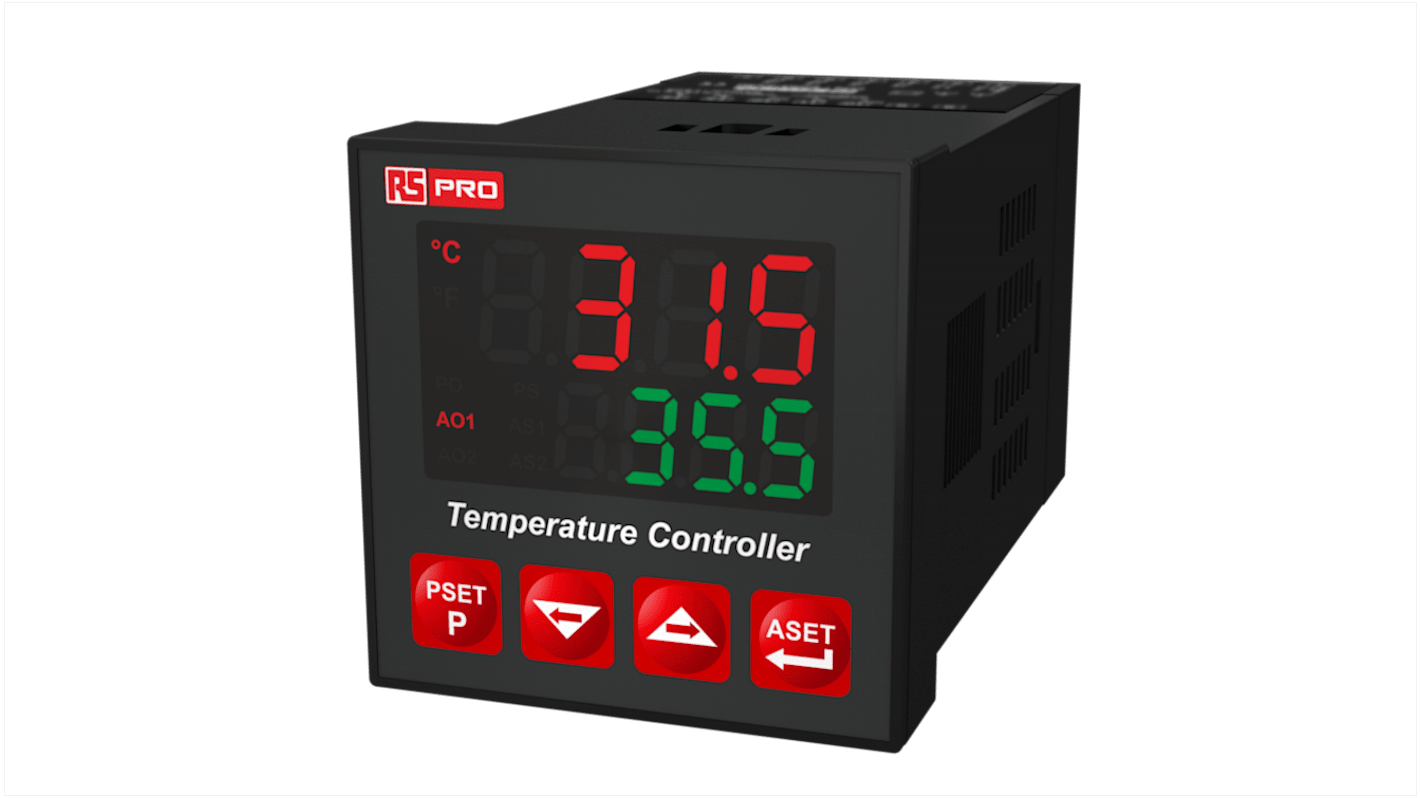

RS PRO Panel Mount PID Temperature Controller, 48 x 48mm 2 Input, 3 Output Relay, SSR, 115 V Supply Voltage ON/OFF, PID

Se alla Temperature Controllers
Inte tillgänglig
RS kommer inte längre att lagerföra denna produkt.

Alternativ

Denna produkt är för närvarande inte tillgänglig. Vi rekommenderar denna produkt istället.

presentation
RS PRO Panel Mount PID Temperature Controller, 48 x 48mm 2 Input, 3 Output Relay, SSR, 100 → 240 V Supply
RS-artikelnummer
222-8141

Varje

2 334,08 kr

(exkl. moms)

2 917,60 kr

(inkl. moms)

RS-artikelnummer:
222-8144
Tillverkare / varumärke:
RS PRO
Hitta liknande produkter genom att välja ett eller flera attribut.
Välj alla

Brand

RS PRO

Output Type

Relay, SSR

Supply Voltage

115 V

Size

48 x 48mm

Number of Inputs

2

Number of Outputs

3

Minimum Operating Temperature

0°C

Maximum Operating Temperature

+50°C

Temperature Range

0 → +50 °C

Control Type

ON/OFF, PID Controller

Input Type

TC, RTD

Mounting Type

Panel Mount

COO (Country of Origin):
TR

RS PRO Digital Temperature Controllers - ESM 4420 Series


Introducing a range of high-quality digital temperature control units from the trusted brand RS PRO. These universal input temperature controllers are designed to control and measure temperature values. Upon inspection, the units are sturdy, simple to set up, easy to use, and packed with features. Our digital temperature controllers are available with a choice in supply voltage and power, all operating with a high degree of accuracy.

Also known as


Bang-Bang Controllers

Features and Benefits


  • ESM 4420 Series

  • 4 digits process(PV) and 4 digits process set value(SV) display

  • Universal process input (TC, RTD)

  • Configurable ON/OFF, P, PI, PD and PID control forms

  • Adaptation of PID Coefficients to the system with Self-Tune operation (Step Response Tuning)

  • Programmable Heating or Cooling Functions for Control Output

  • Alarm Functions for Alarm Output

Specification


  • Switching current: 5 A

  • Accuracy: 0.25% at Thermocouple, resistance thermometer

  • Ambient temperature: 0°C to +50°C

  • Storage temperature: -40°C to +85°C

  • Protection Class: NEMA 4X (IP65 at front, IP20 at rear)

  • Dimensions: 48 mm x 48 mm

Input


  • Process Inputs: Universal input TC, RTD

  • Thermocouple input types: Selectable by parameters J, K, R, S, T (IEC584.1) (ITS90)

  • Thermo-resistance input type: PT 100 (IEC751) (ITS90)

Output


  • Process Output: Relay (5A@250Vac. at resistive load) and SSR Driver Output: (Maximum 20mA@12Vdc)

  • Alarm Output: Relay (5A@250Vac.resistive load)

RS PRO ESM 4420 Series Variants



Application


  • Textiles

  • Automotive

  • Machine Production

Approvals

EAC, CE
