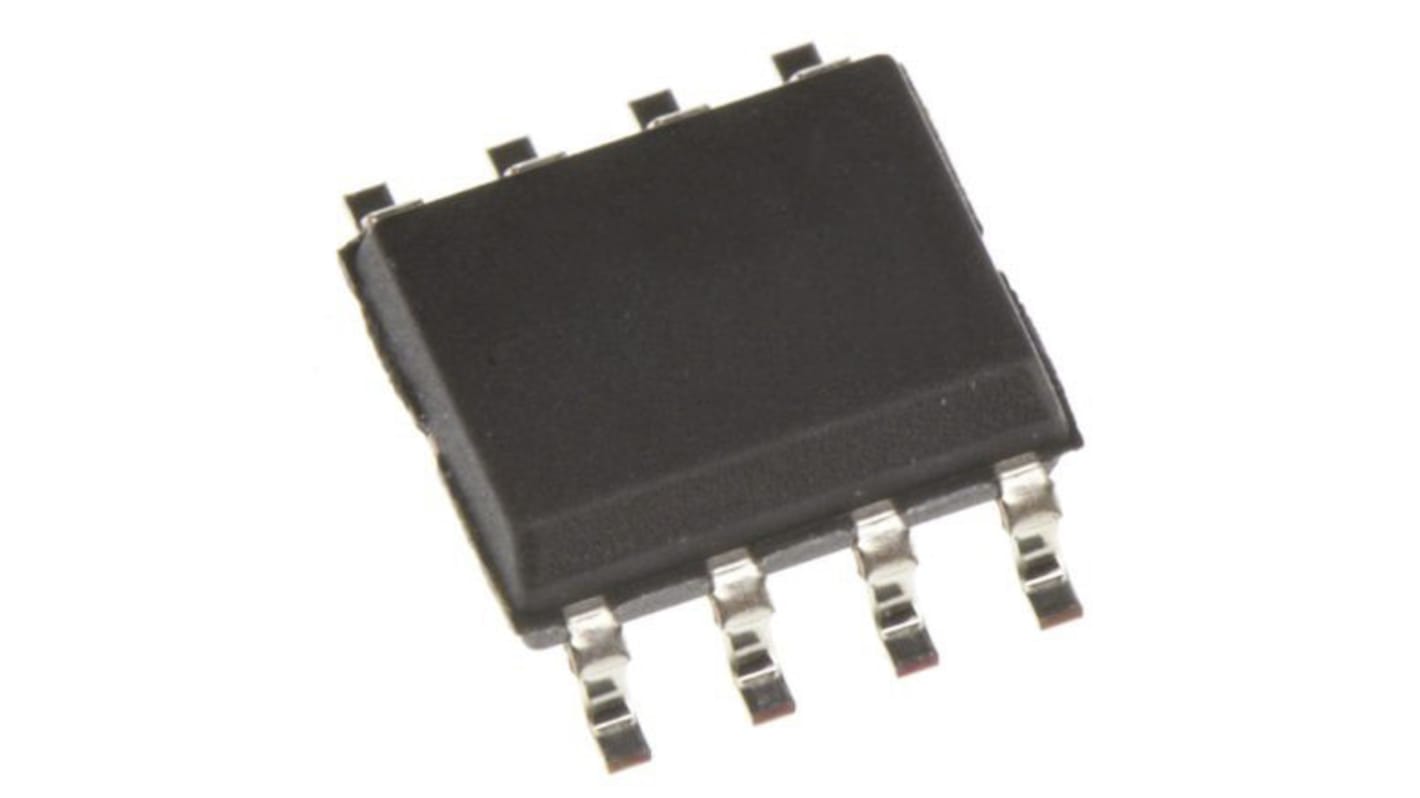

Maxim Integrated Switching Regulator, Surface Mount, 2.5 → 5.5V dc Output Voltage, 1.5 → 5.5V dc Input
- RS-artikelnummer:
- 190-8014P
- Tillv. art.nr:
- MAX860ESA+
- Tillverkare / varumärke:
- Maxim Integrated
Mängdrabatt möjlig
Antal 10 enheter (levereras i ett rör)*
382,82 kr
(exkl. moms)
478,52 kr
(inkl. moms)
GRATIS leverans för online beställningar över 500,00 kr
Sista RS lager
- Slutlig(a) 50 enhet(er), redo att levereras
Enheter | Per enhet |
|---|---|
| 10 - 20 | 38,282 kr |
| 25 - 95 | 36,042 kr |
| 100 - 245 | 29,524 kr |
| 250 + | 27,172 kr |
*vägledande pris
- RS-artikelnummer:
- 190-8014P
- Tillv. art.nr:
- MAX860ESA+
- Tillverkare / varumärke:
- Maxim Integrated
Specifikationer
Datablad
Lagstiftning och ursprungsland
Produktdetaljer
Hitta liknande produkter genom att välja ett eller flera attribut.
Välj alla | Attribut | Värde |
|---|---|---|
| Brand | Maxim Integrated | |
| Output Voltage | 2.5 → 5.5V dc | |
| Output Current | 100mA | |
| Input Voltage | 1.5 → 5.5V dc | |
| Mounting Type | Surface Mount | |
| Number of Outputs | 1 | |
| Efficiency | 99.9 (Typ.)% | |
| Minimum Temperature | -40°C | |
| Maximum Temperature | +85°C | |
| Special Features | High Frequency Reduces Capacitor Size, Invert or Double the Input Supply Voltage | |
| Application | Hand-Held InstrumentsOperational-Amplifier Power Supplies, Interface Power Supplies, Medical Instruments, Portable Computers | |
| Depth | 1.5mm | |
| Width | 4mm | |
| Switching Frequency Range | 250 (Typ)kHz | |
| Length | 5mm | |
| Välj alla | ||
|---|---|---|
Brand Maxim Integrated | ||
Output Voltage 2.5 → 5.5V dc | ||
Output Current 100mA | ||
Input Voltage 1.5 → 5.5V dc | ||
Mounting Type Surface Mount | ||
Number of Outputs 1 | ||
Efficiency 99.9 (Typ.)% | ||
Minimum Temperature -40°C | ||
Maximum Temperature +85°C | ||
Special Features High Frequency Reduces Capacitor Size, Invert or Double the Input Supply Voltage | ||
Application Hand-Held InstrumentsOperational-Amplifier Power Supplies, Interface Power Supplies, Medical Instruments, Portable Computers | ||
Depth 1.5mm | ||
Width 4mm | ||
Switching Frequency Range 250 (Typ)kHz | ||
Length 5mm | ||
8-Pin, 1.11mm High μMAX Package
Invert or Double the Input Supply Voltage
Three Selectable Switching Frequencies
High Frequency Reduces Capacitor Size
87% Efficiency at 50mA
200μA Quiescent Current (MAX860)
1μA Shutdown Supply Current
600mV Voltage Drop at 50mA Load
12Ω Output Resistance
Applications
Handheld Instruments (PDAs, Palmtops)
Interface Power Supplies
Medical Instruments
Operational Amplifier Power Supplies
Portable Computing
Invert or Double the Input Supply Voltage
Three Selectable Switching Frequencies
High Frequency Reduces Capacitor Size
87% Efficiency at 50mA
200μA Quiescent Current (MAX860)
1μA Shutdown Supply Current
600mV Voltage Drop at 50mA Load
12Ω Output Resistance
Applications
Handheld Instruments (PDAs, Palmtops)
Interface Power Supplies
Medical Instruments
Operational Amplifier Power Supplies
Portable Computing
