Specifikationer

Datablad

Lagstiftning och ursprungsland

Produktdetaljer

Hitta liknande produkter genom att välja ett eller flera attribut.

Välj alla	Attribut	Värde
	Brand	Maxim Integrated
	Output Voltage	1.5 V dc, 3.3 V dc
	Output Current	4A
	Input Voltage	2.5 → 5.5V dc
	Mounting Type	Surface Mount
	Number of Outputs	2
	Minimum Temperature	-40°C
	Maximum Temperature	+125°C
	Depth	0.75mm
	Application	Automotive Multimedia, Multivoltage Supplies, Networking/Telecom, Power-over-Ethernet (PoE) IP Phones, RFID Reader Cards
	Switching Frequency Range	500 KHz → 4 MHz
	Length	5mm
	Power Signal Conversion Type	DC-DC
	Width	5mm

	Välj alla
	Brand Maxim Integrated
	Output Voltage 1.5 V dc, 3.3 V dc
	Output Current 4A
	Input Voltage 2.5 → 5.5V dc
	Mounting Type Surface Mount
	Number of Outputs 2
	Minimum Temperature -40°C
	Maximum Temperature +125°C
	Depth 0.75mm
	Application Automotive Multimedia, Multivoltage Supplies, Networking/Telecom, Power-over-Ethernet (PoE) IP Phones, RFID Reader Cards
	Switching Frequency Range 500 KHz → 4 MHz
	Length 5mm
	Power Signal Conversion Type DC-DC
	Width 5mm

Datasheet -MAX15021ATI+

COO (Country of Origin):: TW

Integration Reduces Power-Supply Footprint for Space-Constrained Designs
Dual-Output Synchronous Buck Regulators
Integrated Switches for 4A and 2A Output Currents
Programmable Switching Frequency from 500kHz to 4MHz
28-Pin TQFN Package (5mm x 5mm)
180° Out-Of-Phase Operation Reduces Input Ripple Current and Thus the Size of the Input Bypass Capacitors
Sophisticated Tracking/Sequencing Functions Facilitate Reliable Processor Operation
Digital Soft-Start and Soft-Stop for Tracking Applications
Digital Soft-Start into a Prebiased Load for Sequencing Applications
Sequencing or Coincident/Ratiometric Tracking
Flexible Enough for Use in a Range of Designs
2.5V to 5.5V Input Voltage Range
Output-Voltage Adjustable from 0.6V to VAVIN
External Compensation for Maximum Flexibility
100% Maximum Duty Cycle
Integrated Protection Features Save Space and Increase Reliability
Lossless, Cycle-by-Cycle Current Sensing
Thermal Shutdown and Hiccup-Mode Short-Circuit Protection
20μA Shutdown Current Extends Battery Life in Portable Applications
Applications
Automotive Multimedia
Multivoltage Supplies
Networking/Telecom
Power-Over-Ethernet (PoE) IP Phones
RFID Reader Cards

Enheter	Per enhet
1 - 9	104,36 kr
10 - 24	94,38 kr
25 - 99	90,05 kr
100 - 249	74,41 kr
250 +	72,97 kr

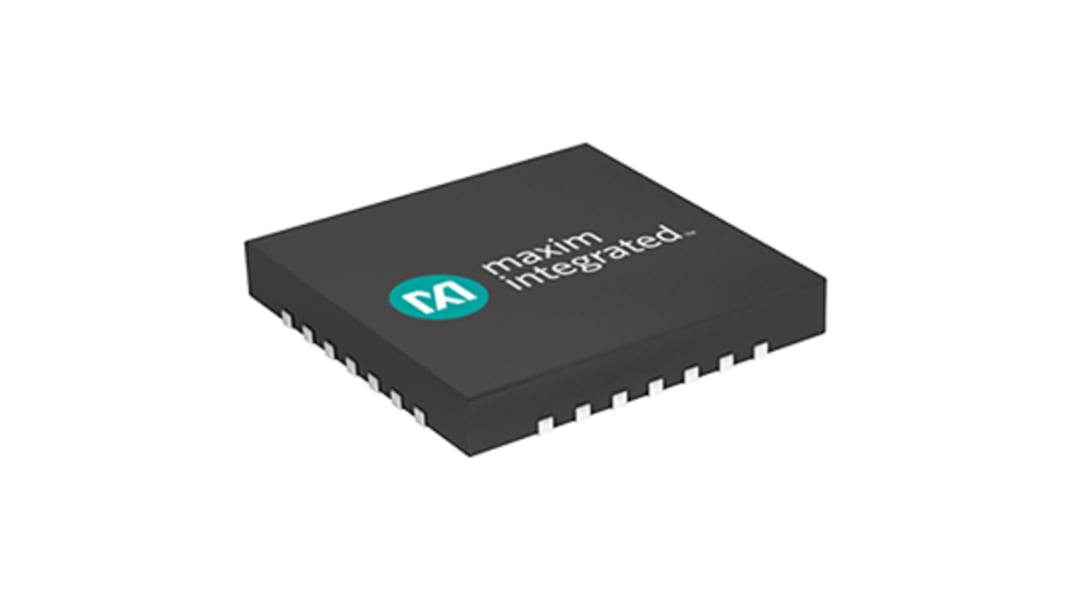

Maxim Integrated Switching Regulator, Surface Mount, 1.5 V dc, 3.3 V dc Output Voltage, 2.5 → 5.5V dc Input
