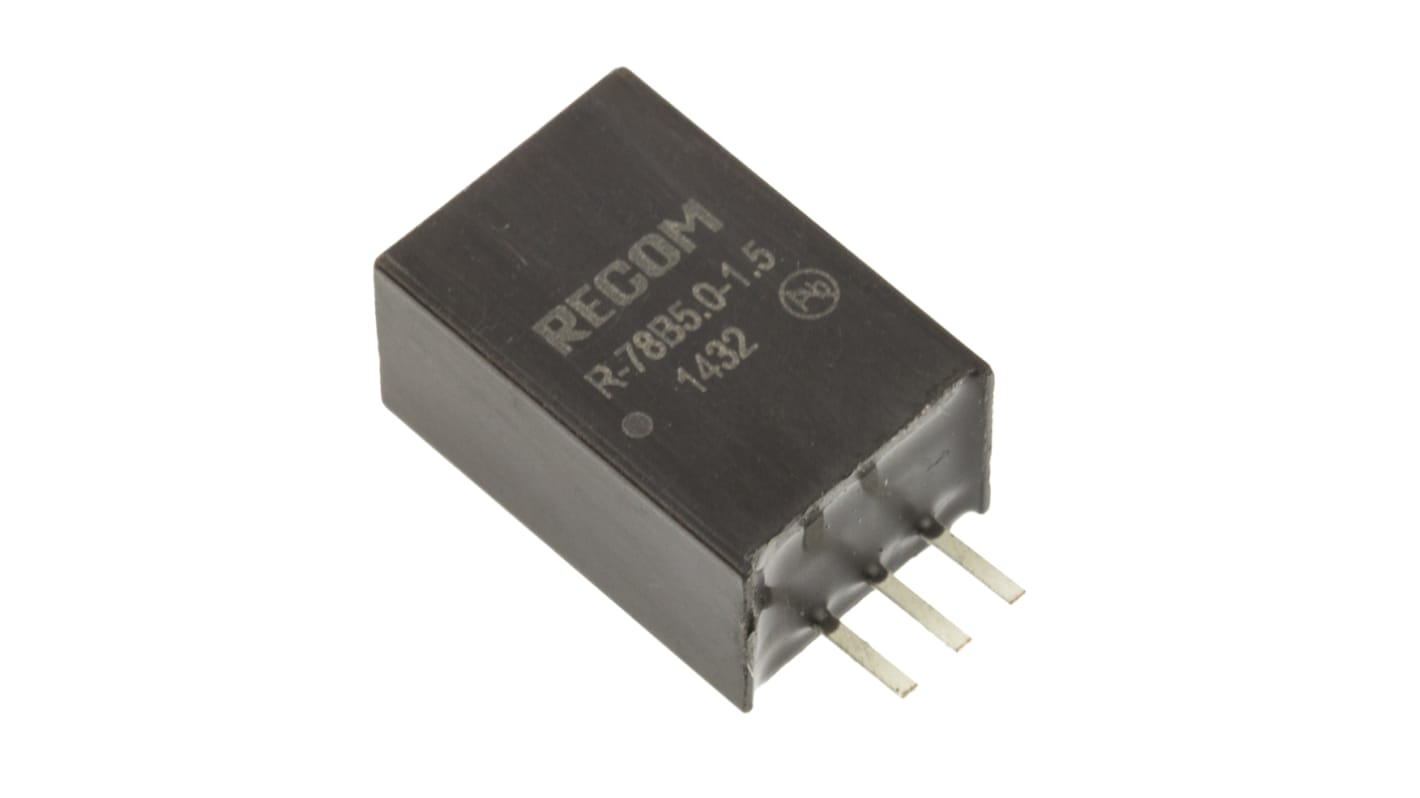

Recom Switching Regulator, 6.5 → 18 V, 8 → 18 V Input, 5V dc Output, 1.5A

  • RS-artikelnummer 166-9001
  • Tillv. art.nr R-78B5.0-1.5
  • Tillverkare / varumärke Recom
Datablad
Lagstiftning och ursprungsland
RoHS-Försäkran
COO (Country of Origin): TW
Produktdetaljer

R-78Bxx-1.5 Series

Non isolated
Medical safety approval EN-60601-1-2
No need for heat sinks
High efficiency
Wide input voltage range, up to 18V
Thermal shutdown and continuous short circuit protection
Low ripple and noise
Low profile
Pin-out compatible with LM78XX Linear regulators
SIP3 package

Note

De-rate above 71°C operating temperature.
MTBF to MIL-HDBK 217F.

Standards

EN-55022, EN-55024, EN-60601-1-2, EN-60950-1

Specifikationer
Attribute Value
Input Voltage 6.5 → 18 V, 8 → 18 V
Output Voltage 5V dc
Number of Outputs 1
Output Current 1.5A
Power Rating 7.5W
Mounting Type Through Hole
Package SIP
Minimum Temperature -40°C
Maximum Temperature +85°C
Efficiency 92%
MTBF 3250000h
Load Regulation ±0.8%
Line Regulation ±0.5%
Ripple And Noise 30mV Pk-Pk
Weight 4g
Width 8.5mm
Length 11.5mm
Depth 17.5mm
1 I lager för leverans inom 1 arbetsdagar
Pris (ex. moms) 1 Tube of 42
4 530,27 kr
(exkl. moms)
5 662,84 kr
(inkl. moms)
Rör
Per Tube
Per unit*
1 +
4 530,27 kr
107,864 kr
