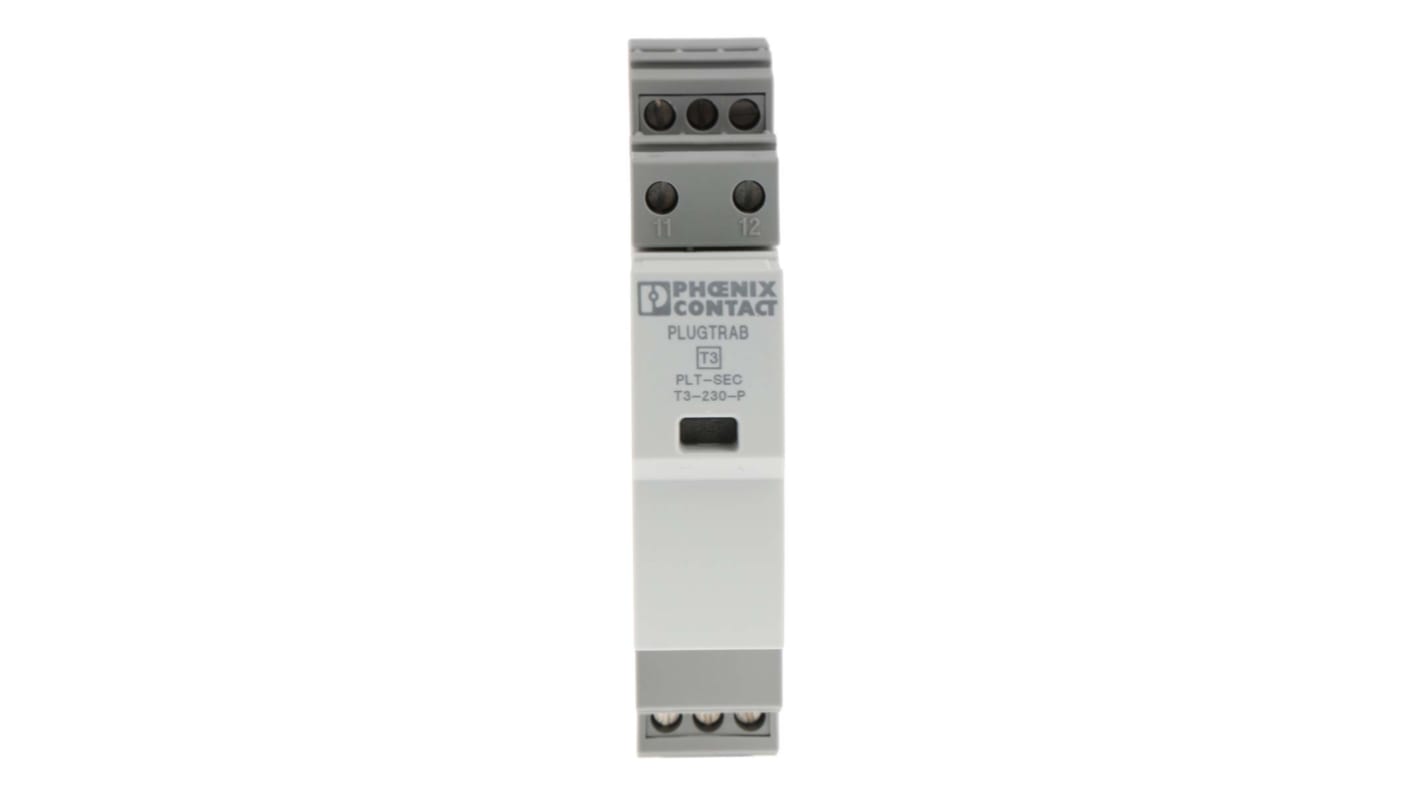

1 Phase Industrial Surge Protector, ≤1.5 kV, DIN Rail Mount
- RS-artikelnummer:
- 890-3752
- Tillv. art.nr:
- 2905229
- Tillverkare / varumärke:
- Phoenix Contact
Denna produkt har utgått
Alternativ
Denna produkt är för närvarande inte tillgänglig. Vi rekommenderar denna produkt istället.
- RS-artikelnummer:
- 890-3752
- Tillv. art.nr:
- 2905229
- Tillverkare / varumärke:
- Phoenix Contact
Datablad
Lagstiftning och ursprungsland
- COO (Country of Origin):
- DE
Produktdetaljer
Phoenix Contact PLT-SEC Surge Protection
The Phoenix Contact space saving, PLT-SEC range of surge protection devices work in the background to protect your devices against transient and high energy voltage peaks.
The type 3 plug-in protection devices are designed for 1-phase and 3-phase power supply networks and can be used without back up fuse. They should be installed upstream of the end devices to be protected.
The type 3 plug-in protection devices are designed for 1-phase and 3-phase power supply networks and can be used without back up fuse. They should be installed upstream of the end devices to be protected.
Features and Benefits
• Varistor-based device protection
• Integrated overcurrent protection
• Line follow current is safely protected due to the innovative spark gap technology
• Slim design
• Works in the background to preserve your whole system
• Optical status indicator using LED
• Predictive testing of the protective devices lets you know in advance what is happening
• Integrated overcurrent protection
• Line follow current is safely protected due to the innovative spark gap technology
• Slim design
• Works in the background to preserve your whole system
• Optical status indicator using LED
• Predictive testing of the protective devices lets you know in advance what is happening
Industrial Circuit Protection
Specifikationer
Attribute | Value |
|---|---|
| Voltage Protection Rating | ≤1.5kV |
| Series | PLT-SEC-T3-230-FM |
| Electrical Phase | 1 |
| Mounting Style | DIN Rail |
| Impulse Discharge Current | 3kA |
| Length | 90mm |
| Width | 17.7mm |
| Depth | 74.5mm |
| Dimensions | 90 x 17.7 x 74.5mm |
| Minimum Operating Temperature | -40°C |
| Maximum Operating Temperature | +80°C |
| Operating Temperature Range | -40 → +80 °C |
