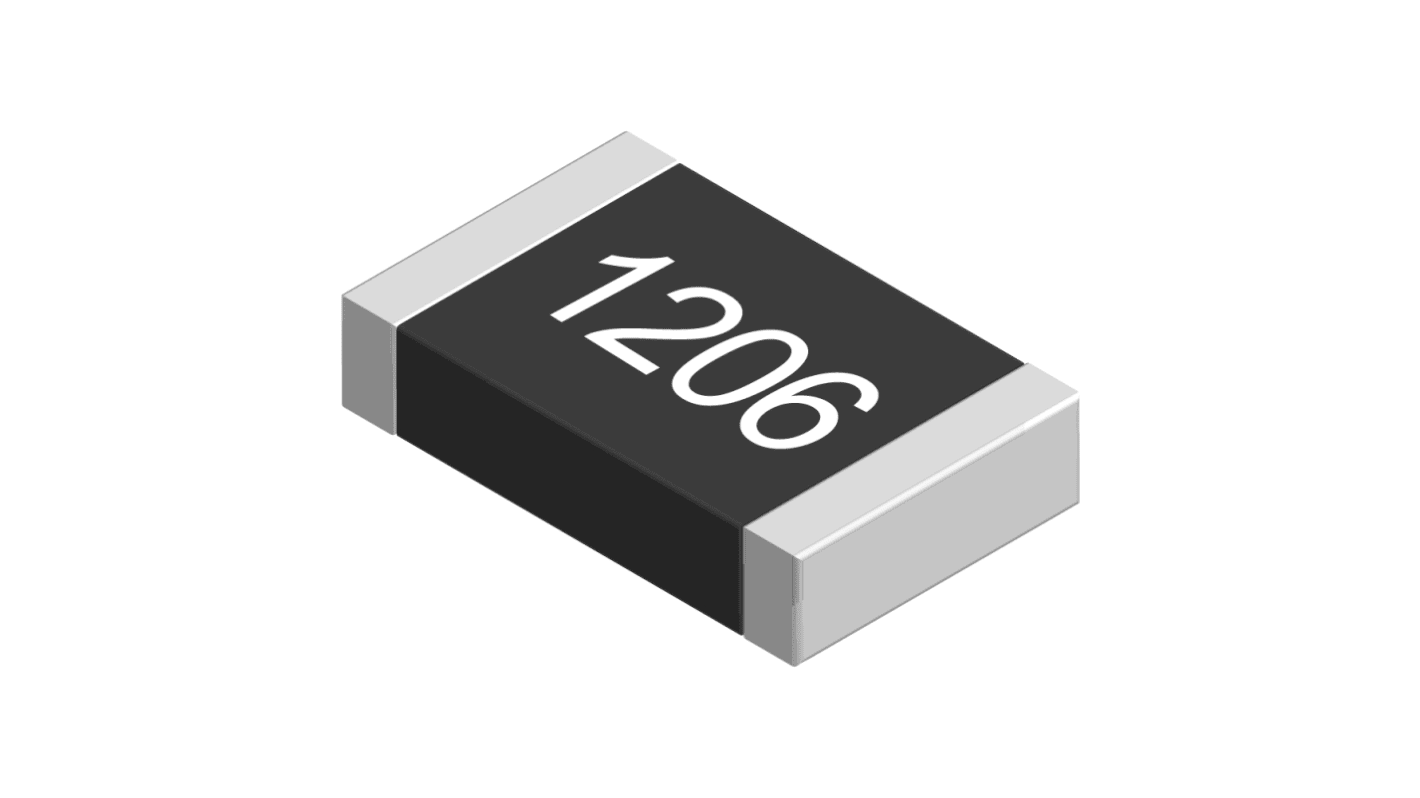

Arcol Ohmite 10mΩ, 1206 (3216M) SMD Resistor ±1% 0.5W - LVK12R010FER
- RS-artikelnummer:
- 126-0379
- Tillv. art.nr:
- LVK12R010FER
- Tillverkare / varumärke:
- Arcol Ohmite
2210 I lager för avsändande samma dag
100 Inom 1 arbetsdag(ar) (UK lager)
Pris (ex. moms) Var (i en påse med 5)
2,95 kr
(exkl. moms)
3,69 kr
(inkl. moms)
Enheter | Per enhet | Per Bag* |
---|---|---|
5 + | 2,95 kr | 14,75 kr |
- RS-artikelnummer:
- 126-0379
- Tillv. art.nr:
- LVK12R010FER
- Tillverkare / varumärke:
- Arcol Ohmite
Datablad
Lagstiftning och ursprungsland
- COO (Country of Origin):
- JP
Produktdetaljer
Ohmite LVK Series Current Sense Resistors
Ohmite LVK series current sense resistors enable the measurement of current flow in a circuit by monitoring a voltage drop across a precisely calibrated resistance. The LVK chip features four terminals, also known as a Kelvin configuration. This configuration enables current to be applied through two opposite terminals and a sensing voltage to be measured across the other two terminals, eliminating the resistance and temperature coefficient of the terminals for a more accurate current measurement.
Ohmite proprietary technology offers an excellent Temperature Coefficient of Resistance (TCR) even for very low-resistance values. The resistive element consists of a durable, anti-corrosive metal alloy that combines reliable performance with the ability to withstand harsh environments.
Ohmite proprietary technology offers an excellent Temperature Coefficient of Resistance (TCR) even for very low-resistance values. The resistive element consists of a durable, anti-corrosive metal alloy that combines reliable performance with the ability to withstand harsh environments.
Features
Designed for automatic insertion
Industry standard sizes
High-precision Kelvin connect capability in a small package
Industry standard sizes
High-precision Kelvin connect capability in a small package
Bulk metal chip resistors
Low thermal e.m.f.
Non-inductive
Marked with 3-digit resistance code
Mini reels are ideal for small batch production, development and R&D department
Suitable for automatic assembly on pick and place machinery
Low thermal e.m.f.
Non-inductive
Marked with 3-digit resistance code
Mini reels are ideal for small batch production, development and R&D department
Suitable for automatic assembly on pick and place machinery
Specifikationer
Attribute | Value |
---|---|
Resistance | 10mΩ |
Package/Case | 1206 (3216M) |
Tolerance | ±1% |
Power Rating | 0.5W |
Temperature Coefficient | ±50ppm/°C |
Series | LVK12 |
Minimum Operating Temperature | -40°C |
Maximum Operating Temperature | +125°C |
