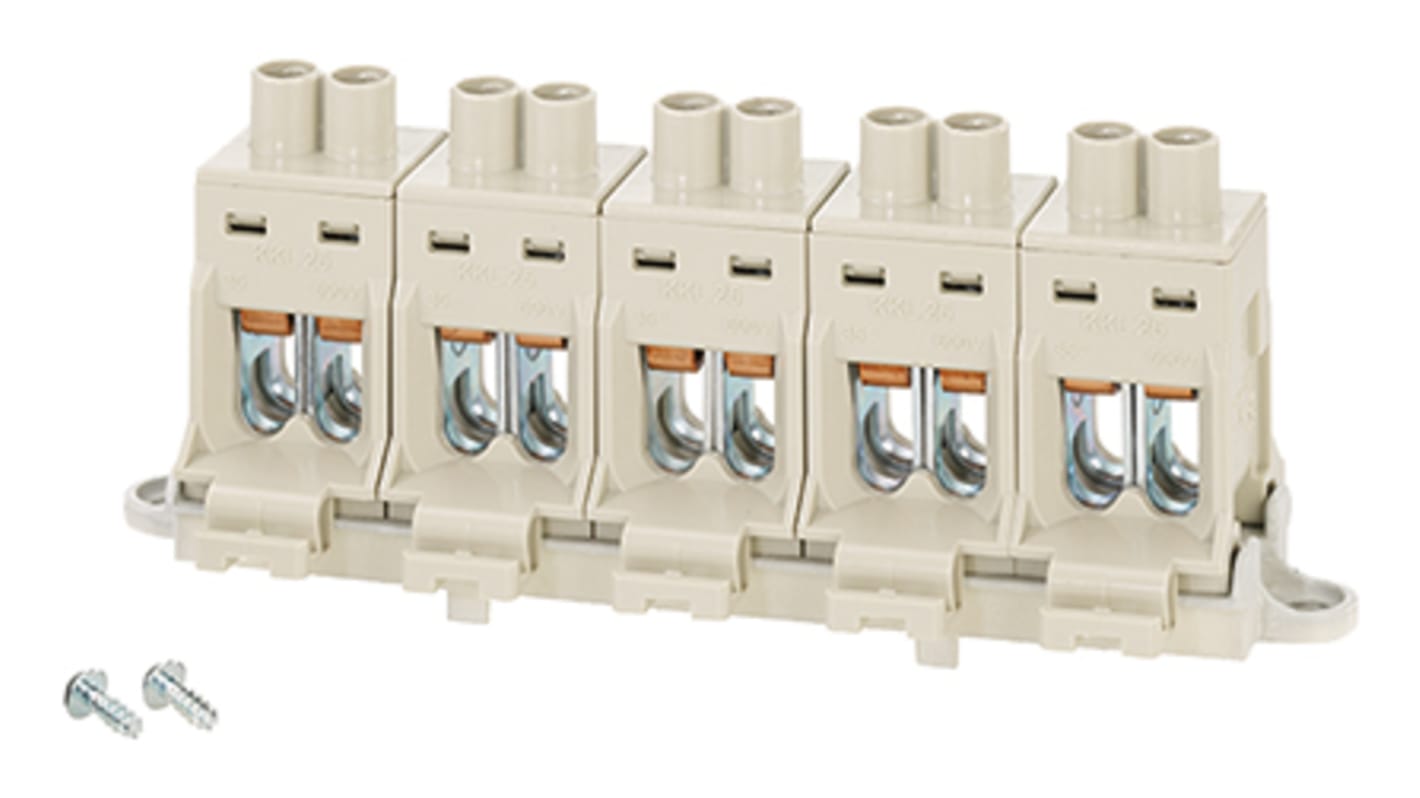

HENSEL DK Series Non-Fused Terminal Block, 5-Way, 102A, 6 → 25 mm² Wire, Screw Down Termination

The ENYCASE DK series junction box from Hensel is a weatherproof enclosure suitable for outdoor installations. It is resistant to UV radiation and is protected against rain and saltwater, as well as being temperature and impact resistant. This junction box is ideally suited to offshore applications.

Cable entry via knockouts
Saltwater protected
Suitable for offshore applications
Lid secured quickly by quarter turn of captive screw
Multi-level knockouts for different sized cable glands
All terminals have 2 clamping units per pole
Terminals are positioned high to provide more space for wiring
External brackets for fastening are included
IP66 / IP67 ingress protection
IK09 protection against mechanical load
Halogen and silicone free
Flame retardant and self-extinguishing polycarbonate
Two colours available, black (RAL 9011) or grey (RAL 7035)

Stock no. 884-2326, 5 pole, 0.5-4 mm², 20A, for use with 884-2271 & 884-2307
Stock no. 884-2335, 5 pole, 0.5-6 mm², 32A, for use with 884-2275 & 884-2300
Stock no. 884-2338, 5 polel, 0.5-10 mm², 40A, for use with 884-2284 & 884-2304
Stock no. 884-2332, 5 pole, 2.5-16 mm², 63A, for use with 884-2287 & 884-2313
Stock no. 884-2341, 5 pole, 6-25 mm², 102A, for use with 884-2281 & 884-2316
Stock no. 884-2344, 5 pole, 6-35 mm², 102A, for use with 884-2290 & 884-2310
Stock no. 884-2348, 5 pole, 16-35 mm², 150A, for use with 884-2293 & 884-2329
Stock no. 884-2357, 5 pole, 16-50 mm², 150A, for use with 884-2297 & 884-2322

Stock no. 884-2350, for use with 884-2326
Stock no. 884-2354, for use with 884-2326 & 884-2335
Stock no. 884-2363, for use with 884-2326, 884-2335 & 884-2338

Terminals must be purchased separately.
Terminal supports are only required for stock nos. 884-2326, 884-2335 & 884-2338, they are not required for the larger terminals which come complete with fixing elements.

IEC 60 670-22, Russian Maritime Register of Shipping (letter no. 250-A-1180-108795).

VDE.

Rated connecting capacity 6-25 mm², Cu

Terminal with 2 clamping units per pole

5-pole per pole 6 x 6 mm² r / f, 4 x 10 mm² r / f, 4 x 16 mm² s / f, 4 x 25 mm² s / f, 2 x 35 mm² s / f

Current carrying capacity: 102 A

For insertion in cable junction boxes
for DK 16...., KF 16....

Complete with fixing elements
