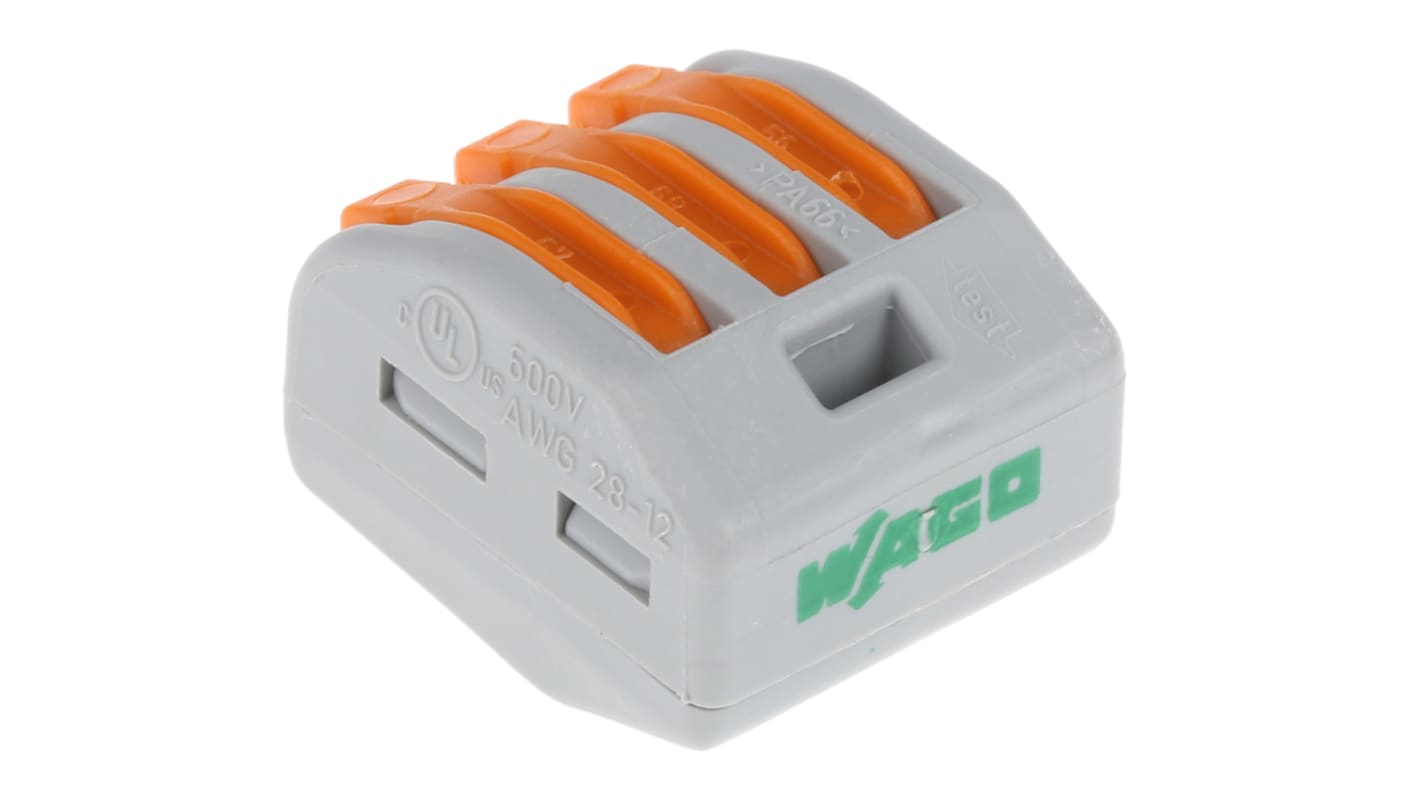

WAGO 222 Series Lever Connector, 3-Way, 32A, 28 → 12 AWG Wire, Cage Clamp Termination

RS-artikelnummer:: 475-1437
Tillv. art.nr:: 222-413
Tillverkare / varumärke:: WAGO

WAGO 222 Series Lever Connector, 3-Way, 32A, 28 → 12 AWG Wire, Cage Clamp Termination

Antal (1 förpackning med 10 enheter)*

43,61 kr

(exkl. moms)

54,51 kr

(inkl. moms)

GRATIS leverans för online beställningar över 500,00 kr

I lager

9 410 enhet(er) är redo att levereras
Plus 1 430 enhet(er) är redo att levereras från en annan plats
Dessutom levereras 210 enhet(er) från den 17 december 2025

Behöver du mer? Ange den kvantitet du behöver och klicka på "Kontrollera leveransdatum"

Enheter	Per enhet	Per förpackning*
10 +	4,361 kr	43,61 kr

*vägledande pris

RS-artikelnummer:: 475-1437
Tillv. art.nr:: 222-413
Tillverkare / varumärke:: WAGO

Specifikationer

Datablad

Lagstiftning och ursprungsland

Produktdetaljer

Hitta liknande produkter genom att välja ett eller flera attribut.

Välj alla	Attribut	Värde
	Brand	WAGO
	Number of Ways	3
	Current Rating	32A
	Wire Size	28 → 12 AWG
	Termination Method	Cage Clamp
	Mounting Type	Cable Mount
	Fused	No
	Material	Polyamide
	Voltage Rating	400 V
	Series	222
	Colour	Grey
	Cable CSA	4mm²
	Maximum Operating Temperature	+85°C
	Gender	Female
	Enclosed	Yes
	Contact Material	Steel

	Välj alla
	Brand WAGO
	Number of Ways 3
	Current Rating 32A
	Wire Size 28 → 12 AWG
	Termination Method Cage Clamp
	Mounting Type Cable Mount
	Fused No
	Material Polyamide
	Voltage Rating 400 V
	Series 222
	Colour Grey
	Cable CSA 4mm²
	Maximum Operating Temperature +85°C
	Gender Female
	Enclosed Yes
	Contact Material Steel

Logga in för att ladda ner CAD-modeller

COO (Country of Origin):: DE

WAGO Terminal Block, 4kV Rated Surge Voltage, PA Housing Material - 222 Series - 222-413

Need a safe way to link cables to your DIN rail-connected components? This terminal block from WAGO works a treat. It has an innovative cage clamp system that lets you terminate wires without using tools. Simply lift and drop the integrated lever to open and close the fastener. The unit is a master of many trades as it fits the bill for solid, stranded and fine-stranded conductor types. Thanks to a 10mm marker on the back, you can easily measure the right amount of wire to strip for a reliable connection.

Features & Benefits

• PA housing serves as an insulator to prevent electric shock
• Rated surge voltage of 4kV means it handles heavy-duty power surges without damage
• Voltage rating of 400V for use in medium-voltage applications

Applications

• Distribution blocks
• Electricity transmission stations
• Automotive manufacturing

How does this terminal block behave in extreme conditions?

Although this unit has a current rating of 32A, it handles overloads of up to five times the classification without losing its electrical functionality. This makes it a safe choice for use in demanding systems.

Approvals

ENEC, UL
