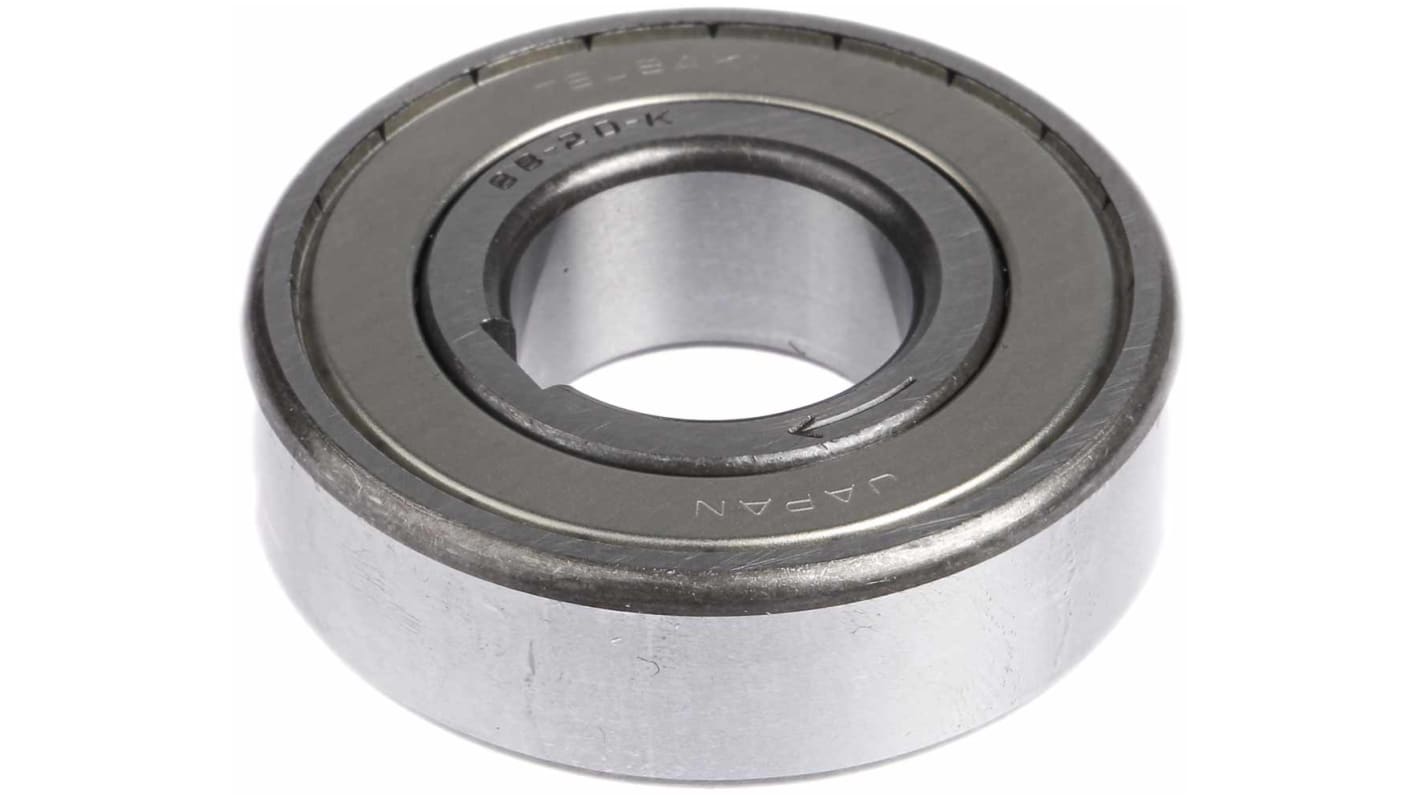

Tsubaki BB20-1K-K Cam Clutch 20mm I.D., 47mm O.D., 14mm Race Width
- RS-artikelnummer:
- 184-5745
- Tillv. art.nr:
- BB20-1K-K
- Tillverkare / varumärke:
- Tsubaki
41 I lager för avsändande samma dag
Lagt till varukorgen
Pris (ex. moms) Varje
765,96 kr
(exkl. moms)
957,45 kr
(inkl. moms)
| Enheter | Per unit |
| 1 - 4 | 765,96 kr |
| 5 + | 735,28 kr |
- RS-artikelnummer:
- 184-5745
- Tillv. art.nr:
- BB20-1K-K
- Tillverkare / varumärke:
- Tsubaki
Datablad
Lagstiftning och ursprungsland
RoHS-status: Inte relevant
- COO (Country of Origin):
- JP
Produktdetaljer
The BB Series functions both as an one-way clutch and a bearing within its compact body, allowing you to use your space more effectively. Capable of transmitting larger torque than shell design roller clutches by arranging the number of cams between the inner and outer races.
Compact Design
Easy Installation
Increased Torque Capacity
Available with an oil seal
Easy Installation
Increased Torque Capacity
Available with an oil seal
Specifikationer
Attribute | Value |
|---|---|
| Inside Diameter | 20mm |
| Outside Diameter | 47mm |
| Torque | 61Nm |
| Race Width | 14mm |
| Series | BB-1K-K |
| Over-running Speed | 1600 (Outer Race) RPM, 3000 (Inner Race) RPM |
| Dynamic Load Rating | 8500N |
| Static Load Rating | 4900N |
| Keyway | Inner Race |
